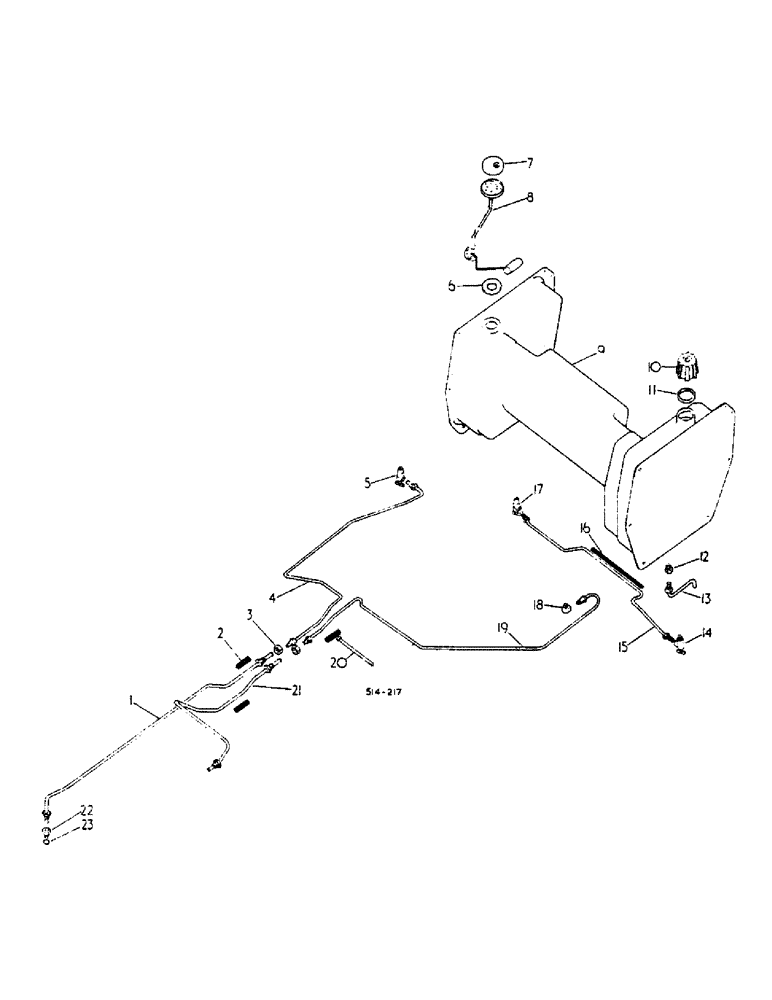

Запчасти Case IH 674 (12-03) - FUEL TANK AND PIPING Power

1

3113614R1

PIPE ASSY.,39.1, 5.2" Length

union to pump, bosch injection cr pump

1шт.

1

3112789R1

PIPE

SPARE PART union to pump, C.A.V. injection

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube, optional

2шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

Fuel line

3шт.

3

222-1054

HYD CONNECTOR,5/16" Inv Fl

5/16 inverted flare tube

2шт.

3

189951

NUT

UNION, 5/16 inverted flared tube, optional

2шт.

4

537537R1

TUBE

ASSY, union to shutoff valve

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube, optional

2шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, shutoff

1шт.

6

528359R1

GASKET

sending unit

1шт.

7

528360R1

CAP

sending unit

1шт.

8

529790R1

SENDER UNIT

fuel gauge sending

1шт.

443874

BRACKET

10-24 X 1/2 hex hd cap

5шт.

159908

GASKET

10-24 X 3/8 cr rec pan

1шт.

533199R1

SEALING WASHER

sending unit cover sealing

4шт.

796002R1

COPPER WASHER

sending unit cover sealing

1шт.

9

536035R92

NO LONGER SERVICED

TANK ASSY, fuel cap with filler

1шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

102635

NUT,3/8"-16, G5

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

10шт.

103321

LOCK WASHER,3/8"

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

536845R1

PLUG

CAP ASSY, fuel tank filler

1шт.

11

23977DB

GASKET

fuel tank filler cap

1шт.

12

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, used with underslung exhaust

1шт.

13

528923R1

TUBE

TANK ASSY, tank breather, used with underslung exhaust att

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flared tube

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flared tube, optional

1шт.

14

536002R1

VALVE

ASSY, shutoff

1шт.

15

528931R1

TUBE

ASSY, crossover

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flared tube

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flared tube, optional

2шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer

1шт.

17

536002R1

VALVE

ASSY, shutoff

1шт.

18

137422

ELBOW

inverted flare 90 deg

1шт.

19

537538R1

TUBE ASSY.

fuel return rear

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube, optional

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

3шт.

21

3112790R1

PIPE

ASSY, fuel return front

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flare tube, optional

2шт.

22

3056600R1

ADAPTER

ADAPTER

1шт.

23

936610R1

SPARE PART packing

1шт.

538393R1

FILLER CAP

PLUG, fuel pipe vent pipe flange, used with vertical exhaust, not illustrated

1шт.
