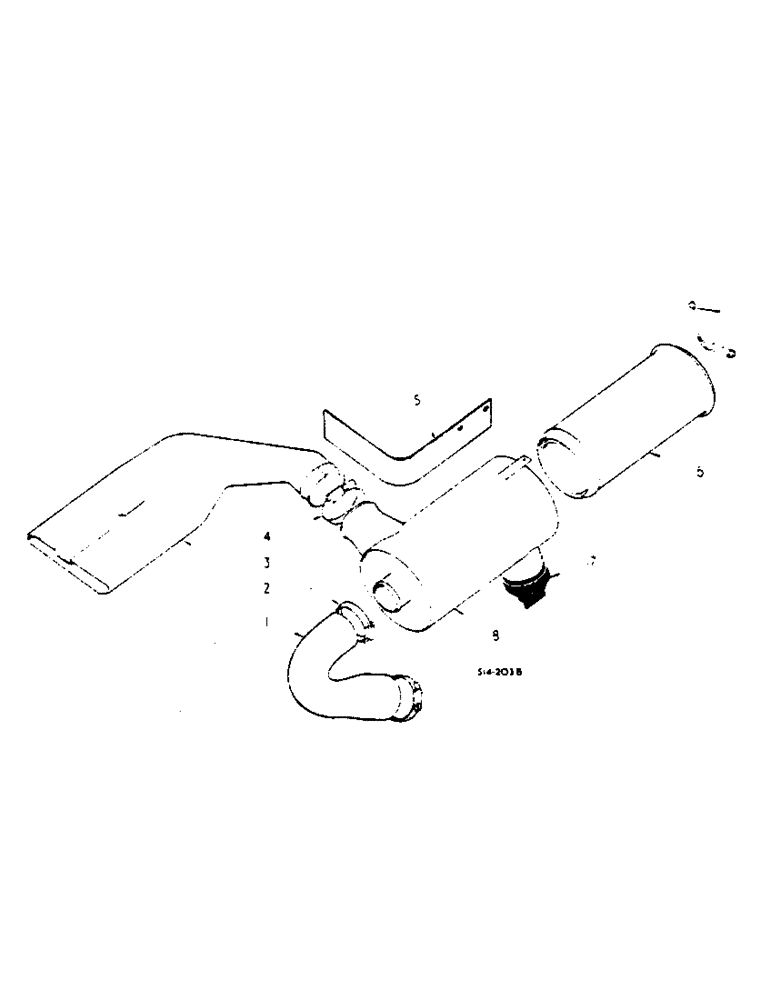

Запчасти Case IH 674 (12-02) - AIR CLEANER AND CONNECTIONS Power

1

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

air inlet

1шт.

3

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

no.44 hose

2шт.

4

21423R1

CLAMP

3-5/16 hose

1шт.

4

539994R1

CLAMP

3-5/16 hose, optional

1шт.

5

67290C1

BRACKET

air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

529854R2

AIR FILTER

ASSY

1шт.

7

529855R1

VALVE

dust unloader

1шт.

8

402612R92

AIR CLEANER

ASSY, consists of ref. nos. 6 and 7 -

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

9

3118679R1

RETAINER

CLAMP, air cleaner

1шт.

18120

BUCKET

SPARE PART SCREW, 3/8-16 X 3/4 hex hd cap

2шт.

180382

WASHER, 3/8 znd lock

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
