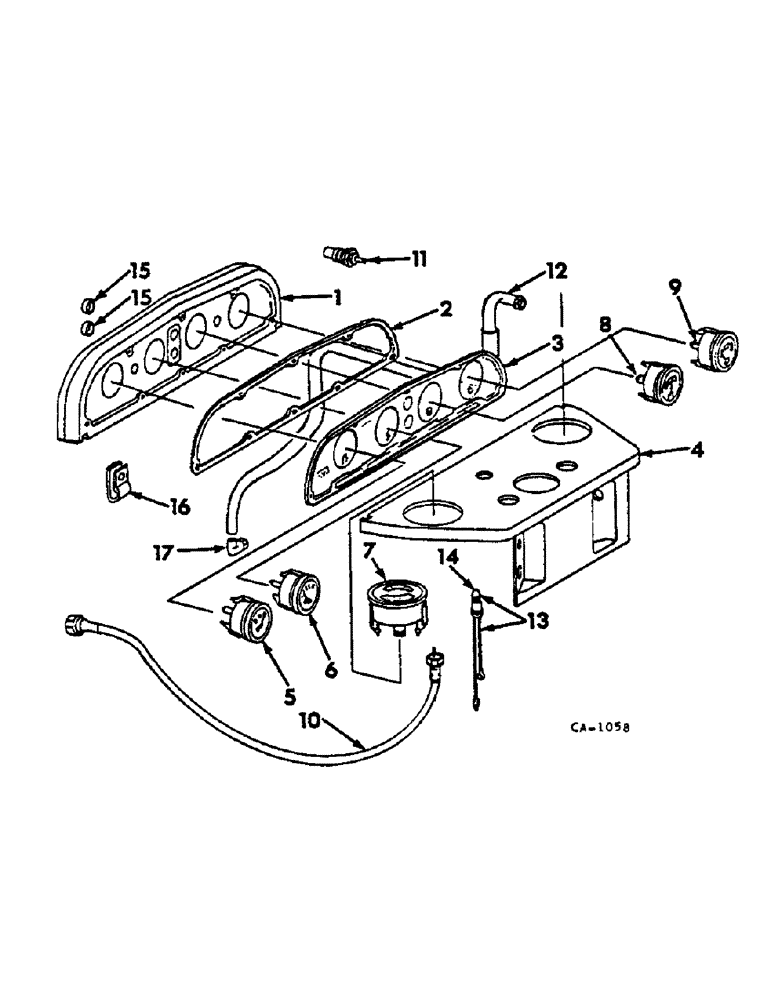

Запчасти Case IH 674 (11-02) - INSTRUMENT PANEL AND GAUGES Instruments

1

529357R2

HOUSING

instrument panel gauge

1шт.

2

3113469R1

GASKET

1шт.

436665

SCREW

6/32 X 1/2 C-Z slt pan hd mach

8шт.

3113468R1

WASHER

fibre

3шт.

3

529359R11

INSTRUMENT PANEL

ASSY, face

1шт.

4

533261R5

PANEL

ASSY, instrument, synchromesh drive tractors

1шт.

4

3112372R5

PANEL

ASSY, instrument, snychromesh drive tractors, Austrian market

1шт.

167214

CHAIN

SCREW, 12-24 X 1/2 C-Z cr rec apn hd tap

4шт.

109084

NUT,1/4"-20, G5

2шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 X 3/8 hex hd cap

2шт.

5

528210R1

ELECTRICAL GAUGE

ASSY, fuel

1шт.

6

528211R1

AMMETER

ASSY

1шт.

7

528364R92

TACHOMETER

1шт.

1092817R1

DECAL

PRODUCT-GRAPHIC, speed chart MPH

1шт.

1092818R1

DECAL

PRODUCT-GRAPHIC, speed chart KPH - speed train type D -

1шт.

1092983R1

PRODUCT-GRAPHIC, speed chart KPH - speed train type B -

1шт.

8

528212R1

ELECTRICAL GAUGE

ASSY, oil

1шт.

3115042R1

WASHER

oil gauge sealing

1шт.

9

528213R1

ELECTRICAL GAUGE

ASSY, water temperature

1шт.

10

529234R91

CABLE ASSY.

tachometer

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Tachometer

1шт.

11

3073787R91

TRANSMITTER

engine temp

1шт.

536650R1

GASKET

engine temp trans

1шт.

12

533274R1

PIPE

oil pressure

1шт.

13

529231R91

LAMP BASE

HOLDER, tachometer

1шт.

14

529233R1

LAMP

12V 3W capless bulb

1шт.

15

530589R1

TUBE

warning light

2шт.

16

533275R1

CLAMP

oil pressure pipe

1шт.

533276R1

SPARE PART

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

17

21267R1

ELBOW

7/16-24 hi-duty tube fitting , oil pressure, Serial Range: pipe-engine

1шт.

25038HA

TUBE NUT,3/8"-24

7/16-24 hi-duty tube fitting

1шт.

192105

HOLE PLUG BUTTON,1"

1 C-Z button, not illustrated

1шт.

3113429R1

PLUG

blanking, optional, TA or fwd/rev control handle hole, not illustrated

1шт.

3113430R1

PLUG

blanking, not illustrated

1шт.

142070

PLUG,13/32"

button horn, optional, not illustrated

1шт.

538239R1

PLUG

direction indicator light hole, not illustrated

2шт.

538240R1

PLUG

direction indicator switch hole, not illustrated

1шт.

432281

HOLE PLUG BUTTON,29/32"

button cigarette light hole, not illustrated

1шт.

528240R1

NO LONGER SERVICED

PLUG, button cigarette light hole, not illustrated

1шт.

178023

FILTER SCREEN,29/32"

button cigarette light hole, optional, not illustrated

1шт.
