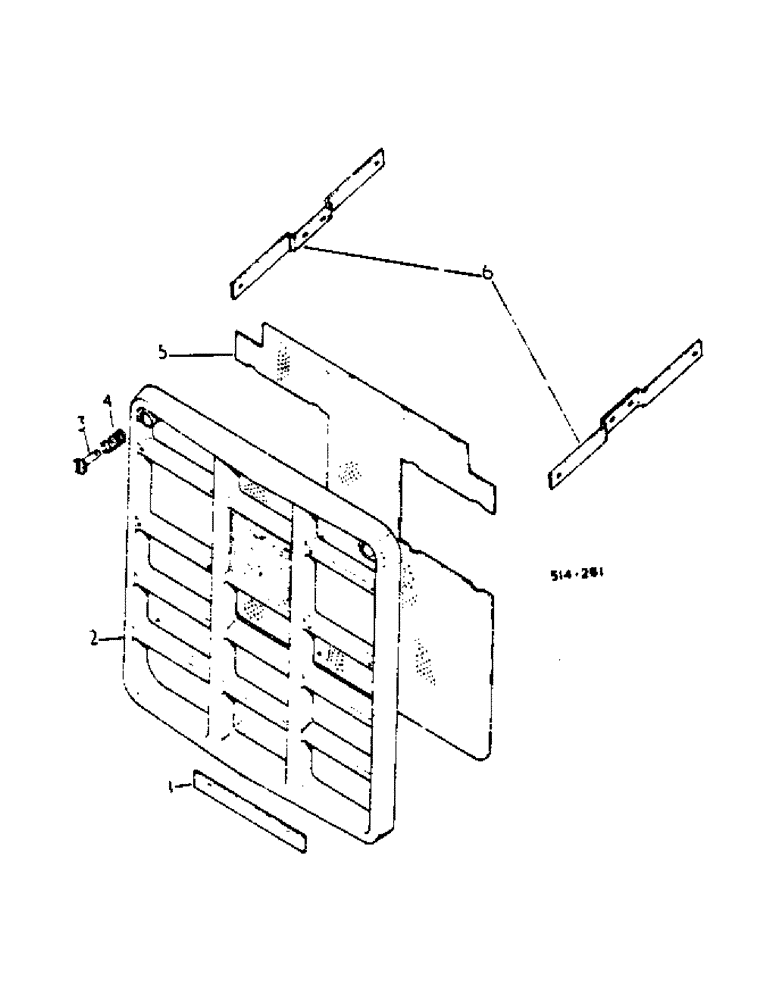

Запчасти Case IH 674 (06-05) - RADIATOR GRILLE Cooling

1

532192R1

BRACKET

grille retaining

1шт.

537163R1

BAR

grille retaining

1шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 X 1/2 SLT pan HD mach

2шт.

23505R1

WASHER

9/32 X 5/8 X 16 GA C-Z - used with grille 537496R1 -

2шт.

22971R1

PIN

5/32 X 1-1/4 HV coiled spring

2шт.

23505R1

WASHER

9/32 X 5/8 X 16 GA C-Z - used with grille 528153R1 -

2шт.

2

537496R1

GRILLE

radiator, plastic

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 hex washer HD tap

4шт.

2

528153R2

GRILLE

radiator

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 hex washer HD tap

6шт.

3

3113470R1

PIN

LATCH ASSY, grille, used with grille 537496R1 -

2шт.

3

532178R1

LATCH

ASSY, grille, used with grille 528153R2 -

2шт.

4

532180R1

SPRING

grille, latch

2шт.

5

528155R3

SCREEN

grille

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA

1шт.

6

402610R1

SUPPORT

radiator and grille housing

4шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

4шт.
