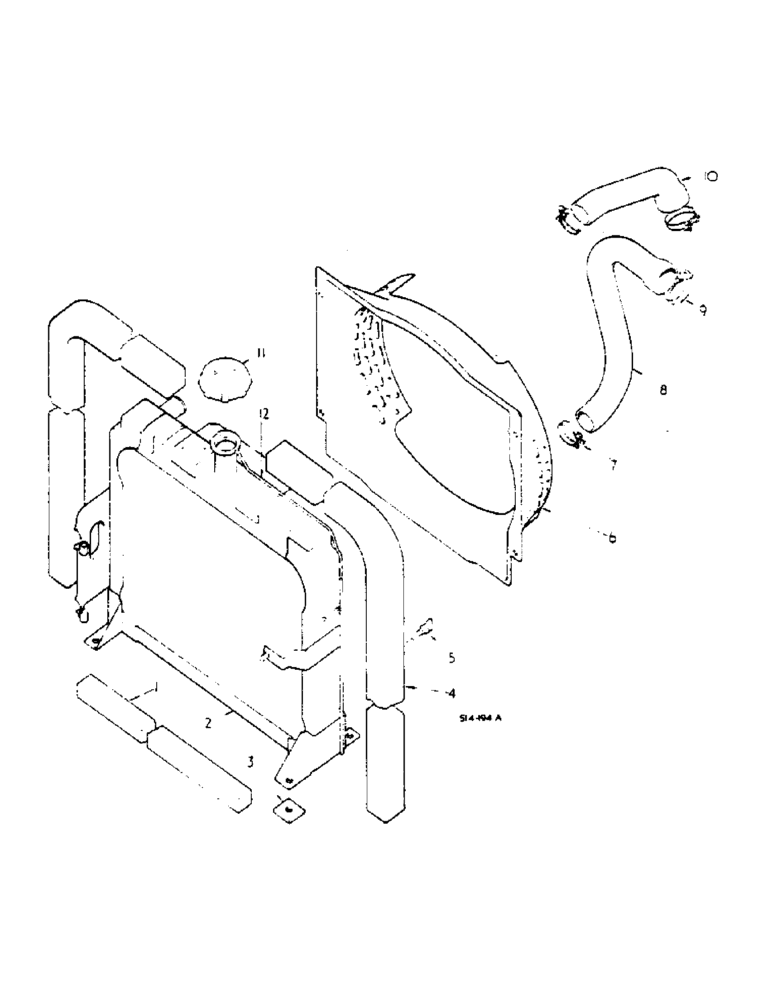

Запчасти Case IH 674 (06-04) - RADIATOR AND CONNECTIONS Cooling

1

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

2

3113999R92

RADIATOR

ASSY synchromesh drive tractors

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 X 1 hex hd cap

4шт.

103322

LOCK WASHER,7/16"

4шт.

142745

NUT, WING

5/16-18 ZND

4шт.

3

47240D

PAD

radiator

4шт.

23042R1

WASHER

17/32 X 1 X 22 GA, as required

1шт.

4

394788R1

GASKET

GASKET, radiator baffle

2шт.

5

3113083R1

PLUG, DRAIN

1шт.

6

527475R2

HOUSING

SHROUD, fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

4шт.

7

39149H

HOSE CLAMP

2шт.

8

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

HOSE,LARGE radiator outlet

1шт.

8

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

9

706082R91

CLAMP

hose, optional W/39205H -

2шт.

9

39205H

CLAMP

hose, optional W/706082R91 -

2шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

HOSE,LARGE Inlet

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

532029R1

CAP ASSY.

radiator

1шт.

12

Not Serviceable

1шт.
