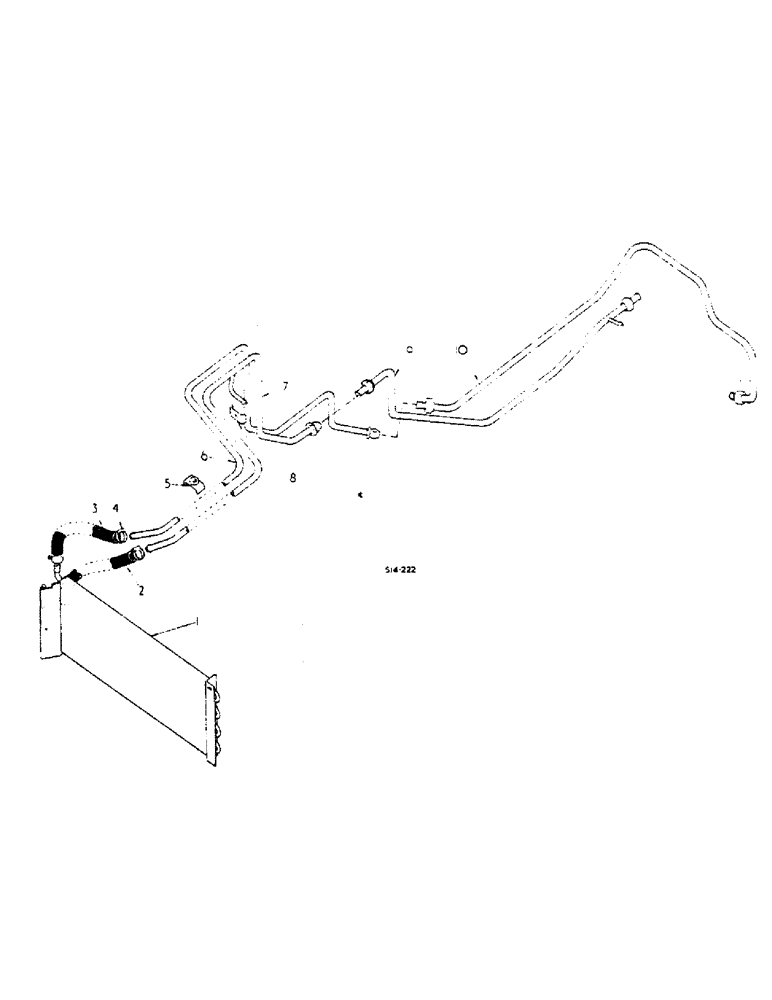

Запчасти Case IH 674 (06-02) - OIL COOLER, SYNCHROMESH DRIVE TRACTORS Cooling

1

539560R1

COOLER

oil

1шт.

1380S

PIN

5/16 X 1-3/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

2

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

oil cooler outlet

1шт.

3

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

oil cooler inlet, optional W/529613R1 -

1шт.

3

529613R1

FLEXIBLE HOSE

oil cooler inlet, optional W/388606R1

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

oil cooler hose, optional W/3074617R1 -

4шт.

4

3074617R1

CLAMP

oil cooler hose, optional W/274085R91 -

4шт.

5

529644R11

CLAMP

ASSY, oil cooler tube

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 X 7/8 hex hd cap

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

66098R1

TUBE ASSY, oil cooler inlet

1шт.

7

66100C1

TUBE

ASSY, oil cooler outlet

1шт.

8

381448R1

CLAMP

oil cooler tube

1шт.

9

66096C1

TUBE

oil cooler return rear

1шт.

10

66095R1

TUBE ASSY, oil cooler rear

1шт.
