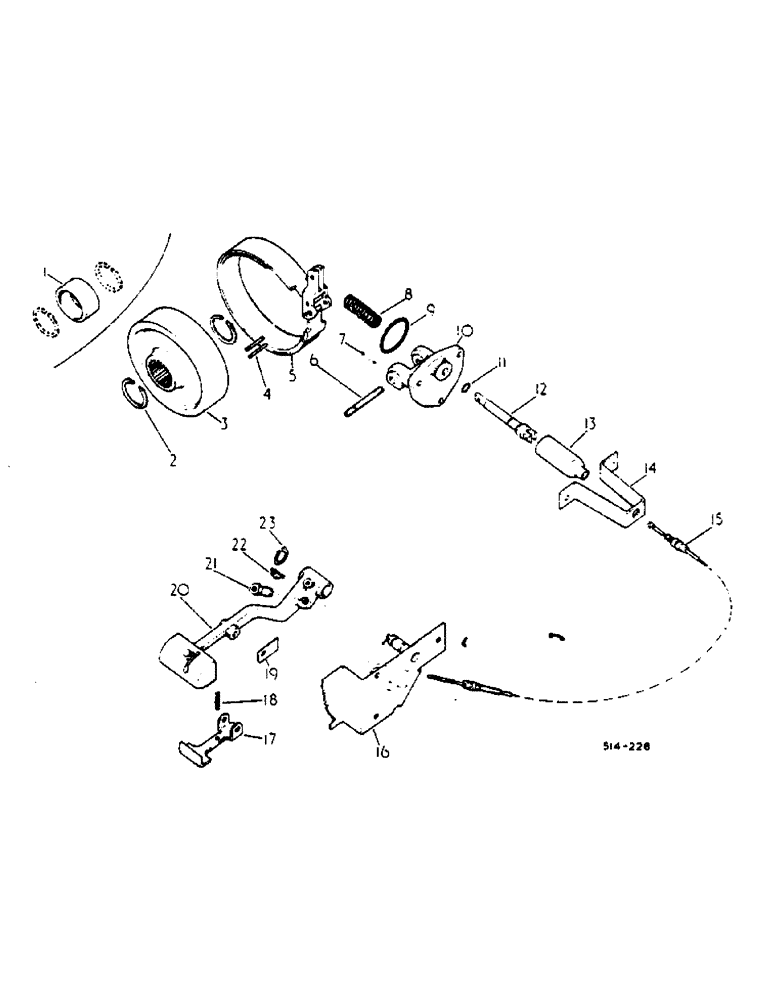

Запчасти Case IH 674 (04-08) - PARK LOCK (5.1) - BRAKES

1

3116388R1

BUSHING

park brake drum, tractors with had operated drum brake

1шт.

2

67628C1

CIRCLIP

SHIM, bevel pinion .093

1шт.

2

67568C1

CIRCLIP

SHIM, bevel pinion .066

1шт.

2

67569C1

CIRCLIP

SHIM, bevel pinion .069

1шт.

2

67570C1

CIRCLIP

SHIM, bevel pinion .072

1шт.

2

67571C1

CIRCLIP

SHIM, bevel pinion .075

1шт.

2

67572C1

CIRCLIP

SHIM, bevel pinion .081

1шт.

2

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM, bevel pinion .084

1шт.

2

67574C1

CIRCLIP

SHIM, bevel pinion .087

1шт.

2

67575C1

CIRCLIP

SHIM, bevel pinion .090, as required

1шт.

3

66074C1

HUB

brake drum

1шт.

4

535544R1

PIN

anchor

2шт.

5

401992R3

BAND

ASSY, brake and actuating toggle

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

5/16 X 31/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

6

401998R1

PIVOT PIN

parking brake pivot

1шт.

7

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

8

402000R1

SPRING

parking brake return

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 X 2-3/4 X 3/32

1шт.

10

401997R1

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

1шт.

11

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16

1шт.

12

402014R1

PLUNGER

parking brake pivot

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

5/16 X 15/16 STD HD

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

13

402015R1

BOOT

cable protection

1шт.

14

401999R1

SUPPORT

BRACKET, cable HSG anchor lower

1шт.

15

529084R1

NO LONGER SERVICED

CABLE ASSY, parking brake

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING, 3/8 retainer

2шт.

16

402001R2

BRACKET

ASSY, parking brake ratchet

1шт.

17

404493R2

HANDLE

parking brake pawl

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

1/4 X 1-3/4 STD HD

1шт.

16558R1

WASHER

17/64 X 5/8 X .036

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

18

402731R1

SPRING

pawl handle

1шт.

19

534318R1

NO LONGER SERVICED

BAR

1шт.

20

402005R3

LEVER

parking brake hand

1шт.

21

402013R1

NUT

5/16-24 adjustable pivot

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

22

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 DEG angle drive lub

1шт.

23

269181R1

SNAP RING,#75, Ext

parking brake hand lever #75, Ext

1шт.
