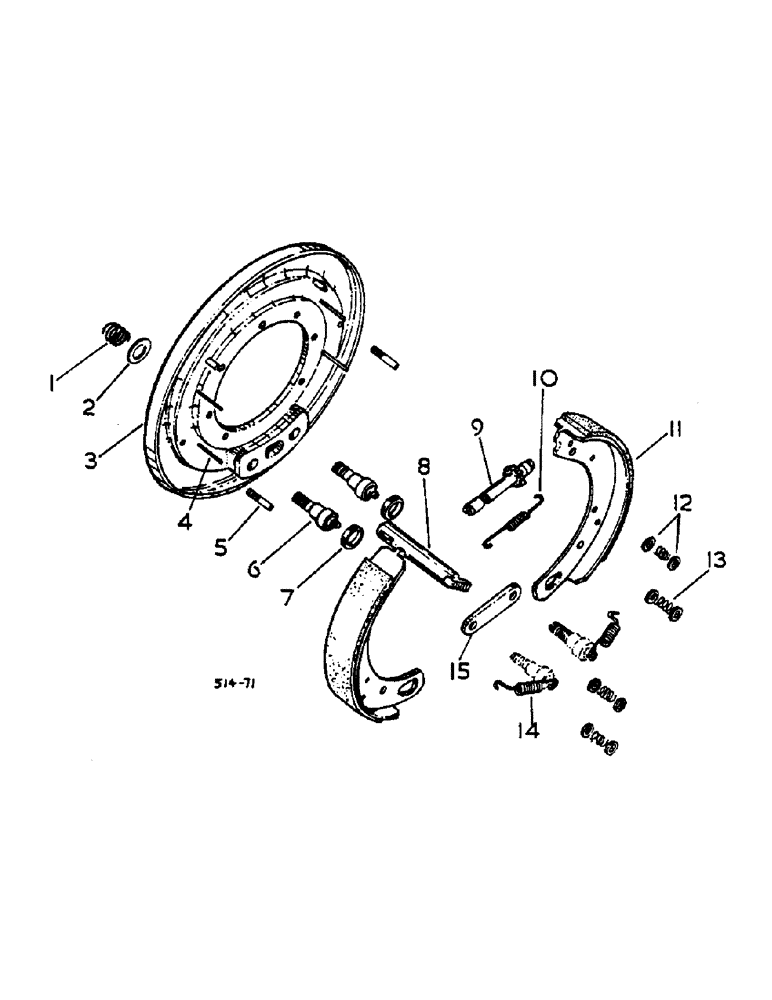

Запчасти Case IH 674 (04-06) - BRAKE DRUM (5.1) - BRAKES

3068536R91

DRUM BRAKE ASSY

14 X 2 DAFC

1шт.

1

3068567R1

SPRING

cover plate

1шт.

2

3068566R1

WASHER

SPARE PART PLATE, cover

1шт.

3

3068541R91

SPARE PART ASSY, backing

1шт.

4

3068569R1

AXLE PIN

hold down

8шт.

5

3068556R1

POST

SPARE PART

2шт.

3068557R1

NUT

2шт.

6

3068558R1

PIN

anchor

2шт.

3068559R1

NUT

2шт.

3068560R1

SPRING WASHER

2шт.

103326

LOCK WASHER,3/4"

Optional

2шт.

7

3068564R1

SPACER

WASHER

2шт.

8

3068565R1

CAMSHAFT

1шт.

9

3068550R91

ADJUSTER

ASSY

1шт.

10

3068561R1

SPRING

shoe return adjuster end

1шт.

11

3068548R91

SHOE (ASSY)

1шт.

12

3068568R1

WASHER, hold down cup

16шт.

13

3068570R1

SPRING, hold down

8шт.

14

3068563R1

PLATE

anchor

1шт.

15

3068562R1

SPRING

shoe return, anchor end

1шт.

3069468R91

KIT

steady rest service, consists of ref. no. 4, 12 and 13, not illustrated

1шт.
