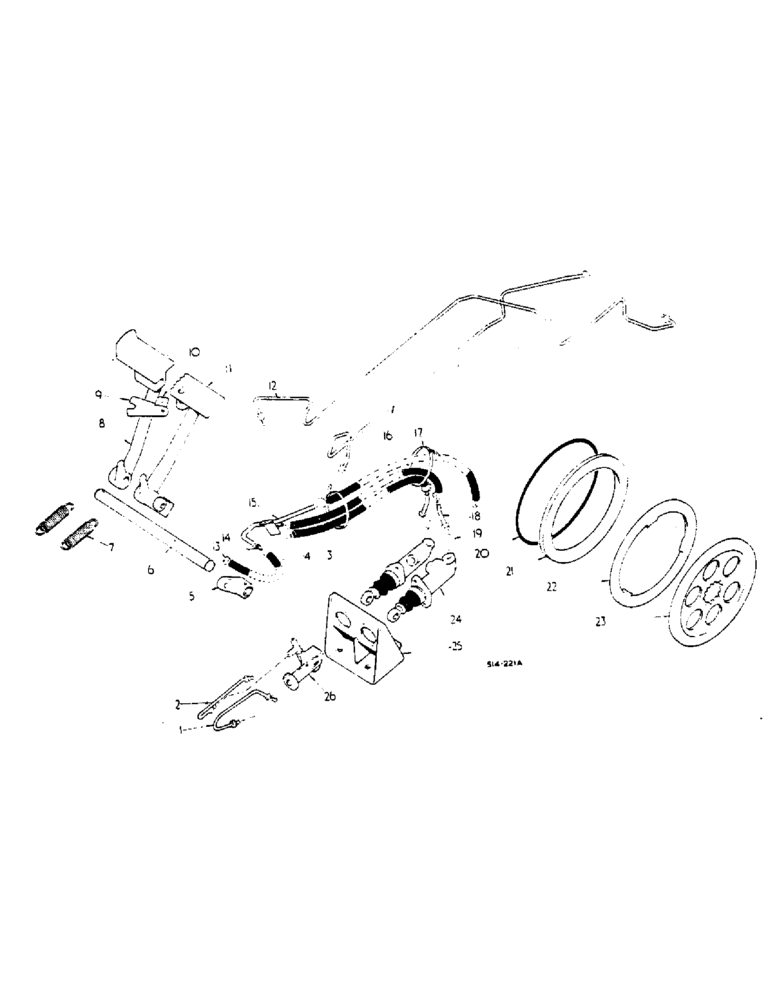

Запчасти Case IH 674 (04-02) - BRAKES (5.1) - BRAKES

1

530851R2

TUBE

equalizer L.H.

1шт.

2

530852R1

TUBE

equalizer R.H.

1шт.

3

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

brake reservoir

3шт.

4

66368C1

FLEXIBLE HOSE

brake reservoir supply

1шт.

5

529858R1

ARM

SPARE PART R.H. brake pedal

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

6

399740R1

SHAFT

pedal support

1шт.

7

539556R1

SPRING

brake pedal return

2шт.

8

399741R2

PEDAL

R.H brake

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

617940

PIN

5/16 X 1-3/4 HV coiled spring

1шт.

9

43751DB

LATCH, PEDALS

PLATE, brake lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4-1-1/4 small B HD solid

1шт.

10

51293D

SPRING

brake pedal lock tension

1шт.

11

537095R11

PEDAL ASSY.

L.H. brake

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

443570

LUBE NIPPLE,65 Degree, 1/4" NPT x .77" lg, Drive

FITTING, 1/4 65 DEG angle drive type lub

1шт.

12

66093C1

BRAKE LINE

BRAKE L.H., Start Serial: 100822

1шт.

12

529603R1

PIPE FITTING

TUBE ASSY, brake L.H., Serial Range: -100821

1шт.

13

20894R1

NO LONGER SERVICED

CLAMP, 5/8 type D hose

8шт.

13

534421R1

HOSE CLAMP

worm drive

8шт.

13

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

1шт.

13

3112550R1

CLAMP

hose, optional

8шт.

14

537518R1

SCREEN

ORIFICE ASSY

1шт.

15

66369C1

TUBE ASSY.

brake reservoir supply

1шт.

172292

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

8-32 X 3/8 C-Z hex hd cap

1шт.

16

66094C1

BRAKE LINE

brake R.H.

1шт.

17

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

18

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

brake cyl supply

2шт.

19

537849R2

SCREEN

ORIFICE ASSY, brake reservoir supply

2шт.

20

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 X 13-1/4 X 1/8 brake piston

2шт.

21

399737R2

PISTON ASSY.

brake

2шт.

22

399736R2

RING

brake

2шт.

23

399734R1

NO LONGER SERVICED

DISC, brake centre

2шт.

24

527542R92

CYLINDER

ASSY, brake master

2шт.

24

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

25

529582R1

BRACKET

ASSY, brake cyl mounting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

26

530374R92

VALVE

ASSY brake equalizer

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

527433R1

CLIP

brake reservoir inlet hose, not illustrated

1шт.

68434C1

PACKAGE

equalizer valve o-ring and seal, service, not illustrated

1шт.
