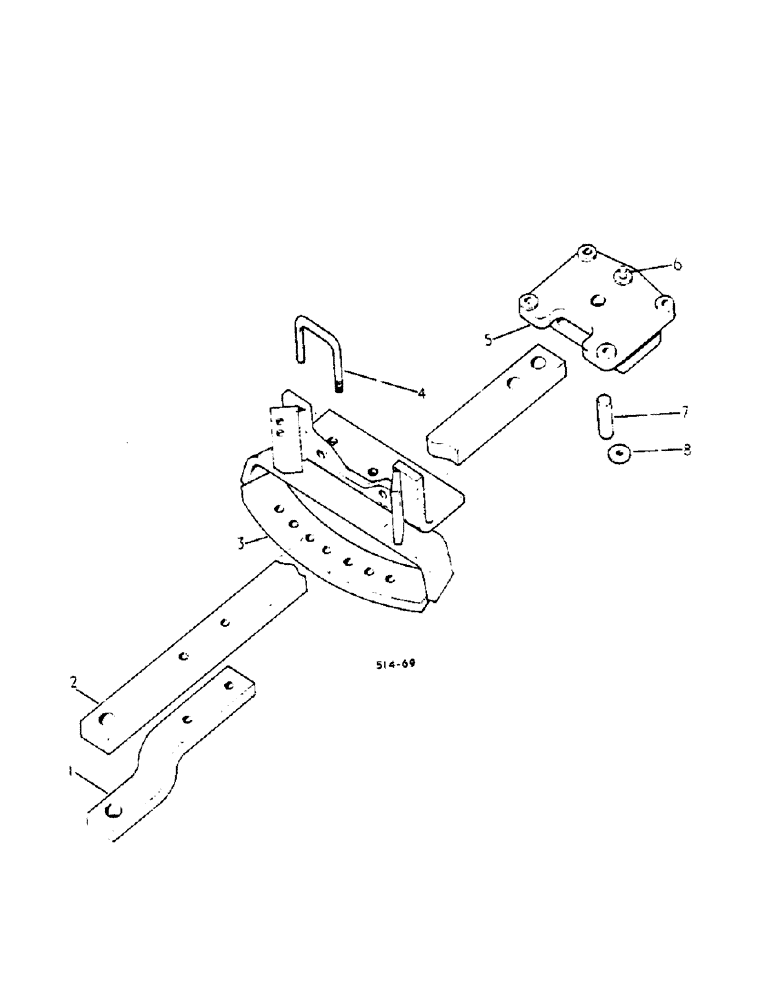

Запчасти Case IH 674 (09-15) - SWINGING DRAWBAR (12) - FRAME

527813R91

SWINGING DRAWBAR

ATTACHMENT, tractors not equipped with three point hitch att or automatic hitch att, consists of all unmarked parts and those marked Unit A

1шт.

527815R91

ATTACHMENT, swinging drawbar, tractors equipped with three point hitch att with outside check chains and not equipped with automatic hitch att

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 hex hd cap

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

406467R1

NO LONGER SERVICED

HITCH, swinging

1шт.

3

527973R1

DRAWBAR SUPPORT

ASSY, swinging - UNIT A -

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 hex hd

5шт.

19904R1

DOWEL,1/2" x 1"

2шт.

4

406470R1

AXLE PIN

drawbar stop

1шт.

19798R1

LOCK NUT,9/16"-12, GB

with nylon insert 9/16-12 hex

1шт.

530408R1

NUT

with nylon insert 9/16-12 hex, optional

1шт.

5

406468R11

SUPPORT ASSY.

drawbar pivot

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2-13 X 1-5/8 hex hd cap

4шт.

103323

LOCK WASHER,1/2"

4шт.

6

19846R1

DOWEL,1/2" x 1 1/4"

PIN

1шт.

7

406469R1

PIN

drawbar stop

1шт.

8

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pin lock

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.
