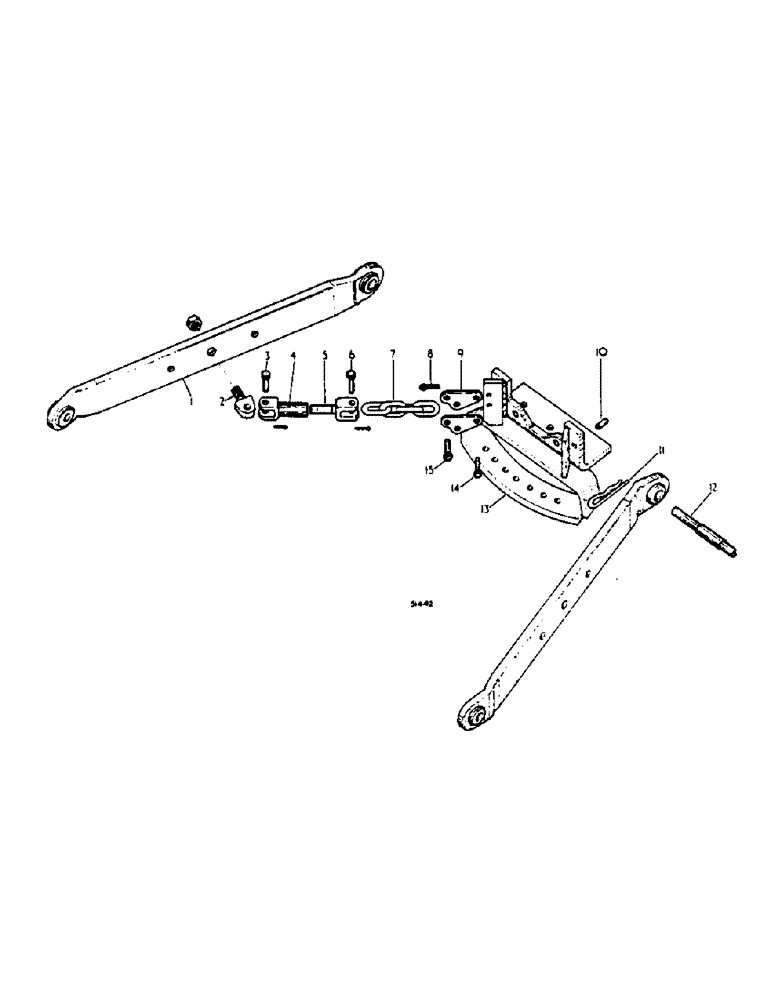

Запчасти Case IH 674 (09-09) - LOWER LINKS, THREE POINT HITCH, WITH INSIDE CHECK CHAINS (12) - FRAME

1

3116072R1

LINK

ASSY, lower

2шт.

2

3113599R1

BOLT,7/8" - 14 x 1.90"

eye

2шт.

536658R1

WASHER

grooved

2шт.

529895R1

CLIP

PIN, spring

2шт.

3

528112R1

PIN

limiter chain

2шт.

108640

PIN, 1/8 X 7/8 cotter

2шт.

4

527978R1

YOKE,7/8" - 14

UNIVERSAL JOINT YOKE ASSY, limiter chain

2шт.

5

403039R1

CLEVIS COUPLING

ASSY, limiter chain

2шт.

6

403037R1

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

7

3113595R1

CHAIN,139.7mm L

lateral limiter

2шт.

8

460047R1

CLIP, SPRING

quick attachable cotter

2шт.

9

527984R1

STRAP

SPARE PART limiter chain adj

4шт.

10

19904R1

DOWEL,1/2" x 1"

2шт.

11

538406R1

COTTER PIN

PIN, quick attachable cotter

2шт.

12

402656R1

PIN

lower link

2шт.

13

3116074R1

SUPPORT ASSY, swinging drawbar

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 hex hd cap

5шт.

14

403043R1

PIN

limiter chain front

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

720631R1

LINCH PIN

adj strap cotter

2шт.

15

403037R1

PIN

limiter chain

2шт.
