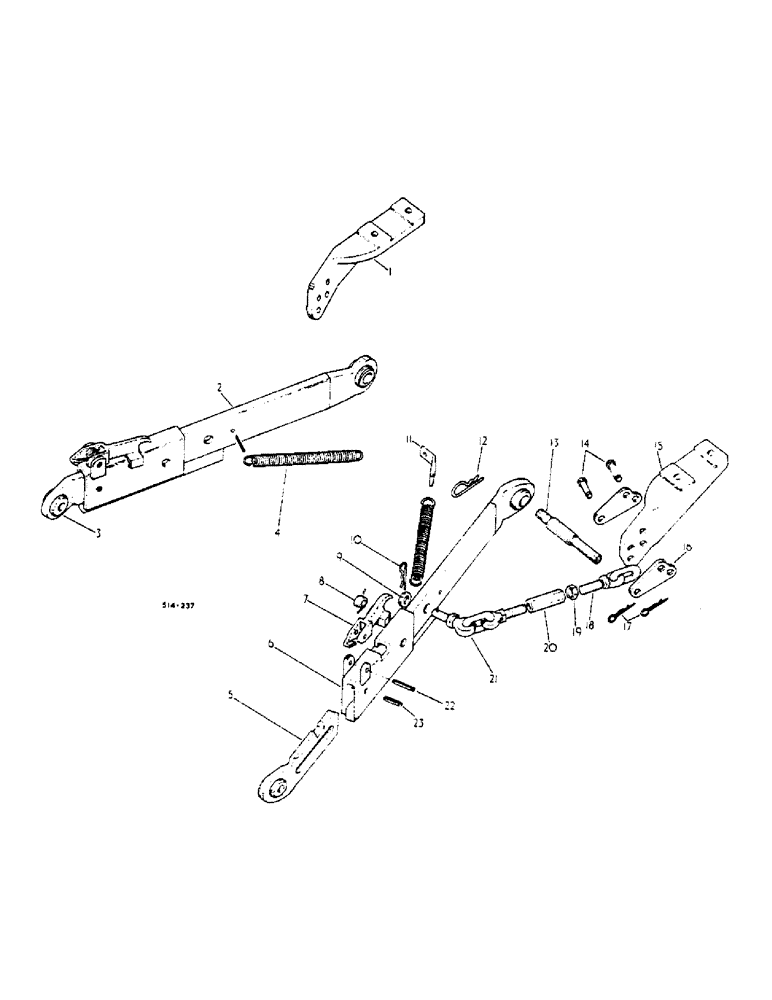

Запчасти Case IH 674 (09-07) - LOWER LINKS, THREE POINT HITCH, WITH OUTSIDE CHECK CHAIN, AUSTRALIAN MARKET (12) - FRAME

1

529876R1

BRACKET

check chain L.H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 hex hd cap

2шт.

103325

LOCK WASHER,5/8"

2шт.

2

527961R2

LINK

ASSY front section L.H. lower

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

3

403019R1

LOWER LINK

ASSY rear section L.H. lower

1шт.

4

662632R1

SPRING

Check chain restraining

2шт.

5

403020R1

LOWER LINK

ASSY, rear section R.H. lower

1шт.

6

527962R2

LINK

ASSY, front section R.H. lower

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

7

403023R1

LATCH

rear section lower

2шт.

8

403024R1

SPRING

2шт.

9

536658R1

WASHER

adj eye bolt chain pin

2шт.

10

529895R1

CLIP

PIN, adj eye bolt washer spring

2шт.

11

539226R1

BRACKET, sway chain

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

12

538406R1

COTTER PIN

PIN, Q/attachable cotter

2шт.

13

402656R1

PIN

lower link

2шт.

14

528112R1

PIN

limiter chain

4шт.

15

529877R1

BRACKET

SPARE PART check chain R.H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 1-5/8 hex hd cap

2шт.

103325

LOCK WASHER,5/8"

2шт.

16

529878R1

STRAP

check chain adj

4шт.

17

720631R1

LINCH PIN

adj strap cotter

4шт.

18

529882R2

BOLT

ASSY, eye and chain

2шт.

19

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 hex jam

2шт.

20

529885R1

TURNBUCKLE,3/4" - 10

check chain

2шт.

21

529890R3

BOLT

ASSY, lower link pin and chain

2шт.

22

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

23

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.
