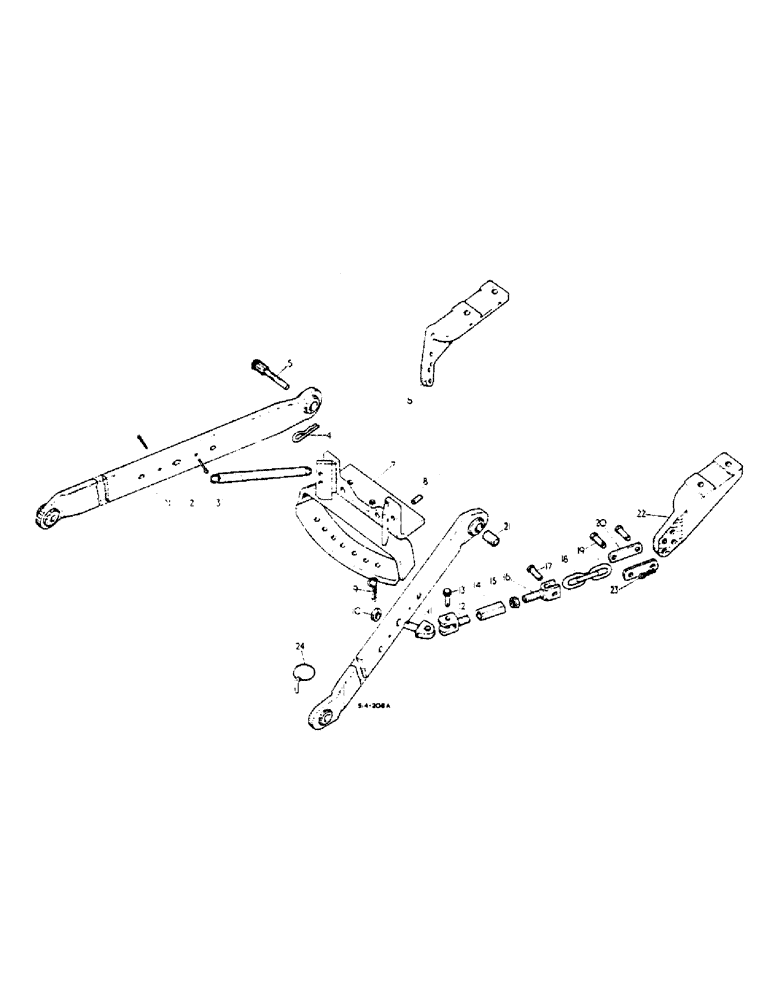

Запчасти Case IH 674 (09-05) - LOWER LINKS, THREE POINT HITCH (12) - FRAME

1

529872R1

LINK

ASSY, lower, Serial Range: -102572

2шт.

1

3116617R91

LINK

ASSY, lower, Start Serial: 102573

2шт.

2

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

Check chain restraining

2шт.

4

538406R1

COTTER PIN

PIN, quick attachable cotter

2шт.

5

530875R1

BASE

SPARE PART PIN, lower link

2шт.

6

529874R1

SUPPORT

BRACKET, check chain L.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 hex hd cap

2шт.

103325

LOCK WASHER,5/8"

2шт.

7

527973R1

DRAWBAR SUPPORT

ASSY, swinging

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 X 1-1/2 hex hd cap

5шт.

Tractors without Automatic Hitch and with Outside Check Chains.

1шт.

8

19904R1

DOWEL,1/2" x 1"

2шт.

Tractors without Automatic Hitch and with Outside Check Chains.

1шт.

9

529895R1

CLIP

PIN, spring

2шт.

10

536658R1

WASHER

grooves

2шт.

11

3113599R1

BOLT,7/8" - 14 x 1.90"

eye, stab, rear

2шт.

12

3113597R1

YOKE

UNIVERSAL JOINT YOKE CLEVIS ASSY, limiter chain L.H. THD.

2шт.

13

528112R1

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

14

3113596R1

NUT

adjustment, Serial Range: -102572

2шт.

14

3113619R1

NUT

adjustment, Start Serial: 102573

2шт.

15

219754R1

NUT

7/8-14 hex jam

2шт.

16

403039R1

CLEVIS COUPLING

ASSY, limiter chain

2шт.

17

403037R1

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

18

3113595R1

CHAIN,139.7mm L

limiter

2шт.

19

528112R1

PIN

limiter chain

4шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

20

3113594R1

PLATE

STRAP, check chain adj

4шт.

21

530826R1

BUSHING

lower link

2шт.

22

529875R1

SUPPORT

BRACKET, check chain R.H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 hex hd cap

2шт.

103325

LOCK WASHER,5/8"

2шт.

23

720631

COTTER PIN

adj strap

2шт.

24

533189R1

PIN

ASSY, lower link drawbar

2шт.
