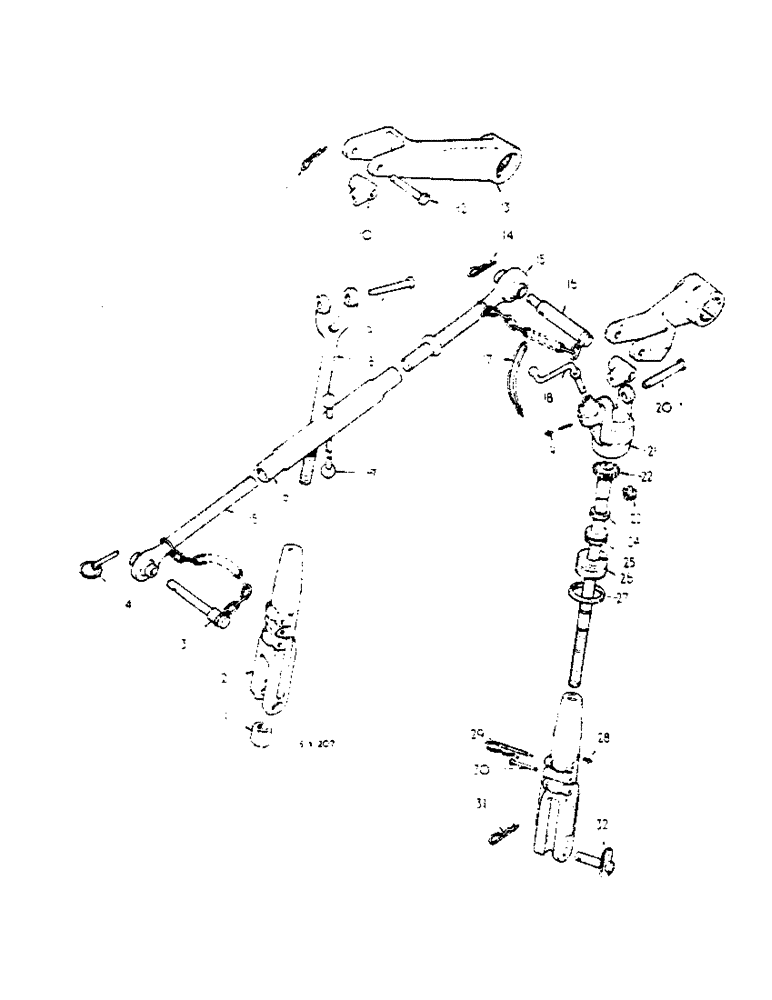

Запчасти Case IH 674 (09-02) - THREE POINT HITCH (12) - FRAME

1

527937R1

NUT

lift link

2шт.

2

402635R3

HOUSING

lift link yoke

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

2

402643R2

HOUSING

lift link yoke

2шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

3

528081R1

PIN ASSY.

upper link, CAT.I.

1шт.

4

533189R1

PIN

ASSY, implement

1шт.

5

527996R1

SCREW

SCREW ASSY, R.H. thread upper

1шт.

6

528003R1

TURNBUCKLE

1шт.

7

3048296R1

BUTTON

KNOB, turnbuckle rod

1шт.

8

527940R1

FORK

YOKE ASSY, lift L.H.

1шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

8

527935R11

CLEVIS

YOKE ASSY, lift L.H.

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

8

527948R91

CLEVIS,7/8" - 9

YOKE ASSY, lift L.H.

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

9

3044309R1

PIN

5/8 X 3-1/2 std.

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

704207R3

PIVOT

SWIVEL, levelling

2шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

10

704207R3

PIVOT

SWIVEL, levelling, Serial Range: -102572

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

10

539247R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, levelling, Start Serial: 102573

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

11

720631R1

LINCH PIN

rockshaft arm cotter

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

12

3044309R1

PIN

rockshaft arm hd

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

13

402634R2

ROCKER ARM

rockshaft

2шт.

14

530049R1

CLIP, SPRING

PIN, lift link pivot Q.A.

1шт.

15

527994R1

SCREW

ASSY, L.H. thread upper

1шт.

325-157

NUT

1-1/8-7 hex lock

1шт.

16

528084R1

HITCH PIN

ASSY, upper link CAT.11.

1шт.

17

3072424R1

SPRING

levelling screw handle

1шт.

18

527943R1

CRANK

HANDLE, levelling screw

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

20

3069069R1

PIN

5/8 X 3-3/4 hardened

1шт.

21

3072422R1

HOUSING

levelling screw

1шт.

22

527942R1

LOCK SCREW

lift R.H. link levelling, Serial Range: -102572

1шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

22

527951R2

SCREW

lift R.H. link leveling

1шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

22

527951R2

SCREW

lift R.H. link levelling, Start Serial: 102573

1шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

22

527939R1

NO LONGER SERVICED,7/8" - 9 x 16 1/32"

SCREW, lift R.H. link levelling

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

23

3069063R1

GEAR

pinion

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

3/16" x 3/4", Type A

1шт.

24

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

levelling screw R.M.

1шт.

25

3044346R91

BALL BEARING

levelling screw R.M.

1шт.

25

3044347R91

THRUST BEARING

levelling screw F.H.

1шт.

25

3044348R91

BEARING, THRUST

levelling screw S.H.

1шт.

25

3068049R91

BALL BEARING

levelling screw hives, optional

1шт.

26

3069064R1

BEARING

SCREW, bearing levelling

1шт.

27

3069065R1

LOCK NUT

levelling screw bearing

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

29

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

ASSY, lift link lock

2шт.

30

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

float stop

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

31

530049R1

CLIP, SPRING

PIN, lift link pivot pin Q.A.

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

31

533189R1

PIN

ASSY, lower link drawbar

2шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

32

527952R1

PIN ASSY.

link lift pivot

2шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.

32

402645R91

PIN, link lift pivot

2шт.

Factory application, for tractors fitted with draft control, outside check chains. For Australia Only.

1шт.

528079R91

UPPER LINK

ASSY, not illustrated

1шт.

530050R3

CLIP,ELECTRICAL

upper link storage, not illustrated

1шт.

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder, Not illustrated

1шт.

23042R1

WASHER

17/32 X 1 X .030 flat C-Z, not illustrated

1шт.
