(10-36) - INTEGRAL HYDROSTATIC STEERING VALVE

Запчасти Case IH 674 (10-36) - INTEGRAL HYDROSTATIC STEERING VALVE (07) - HYDRAULICS

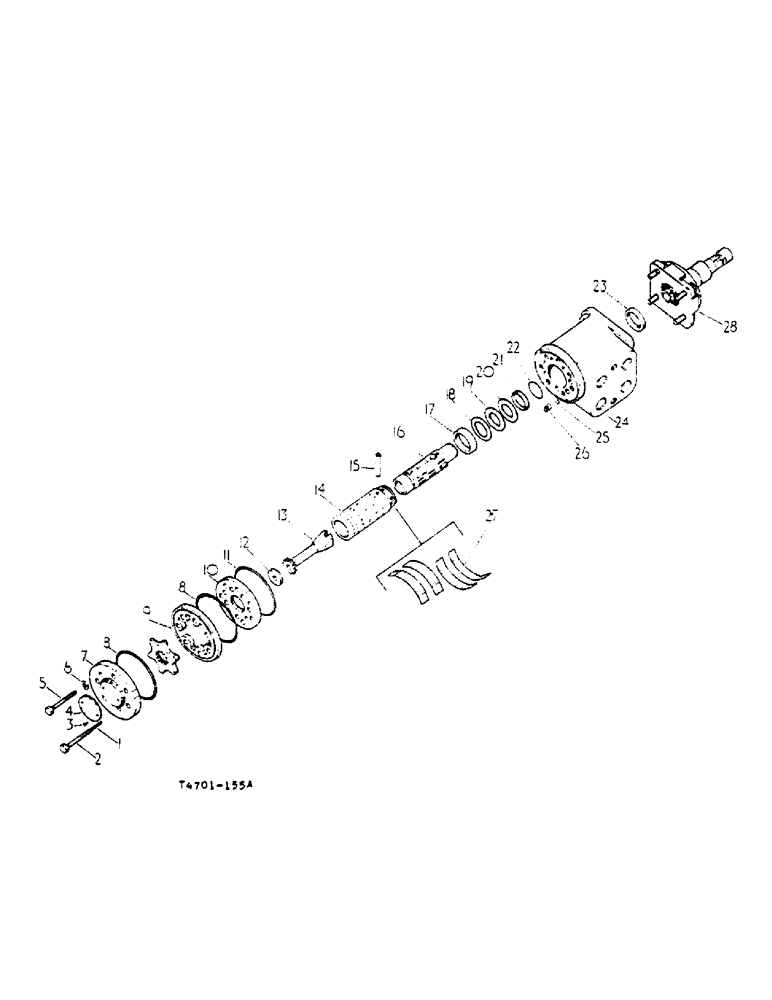

Схема запчастей Case IH 674 - (10-36) - INTEGRAL HYDROSTATIC STEERING VALVE (07) - HYDRAULICS
3
26
15
27
1
2
8
23
28
11
14
25
5
13
20
17
22
19
16
21
7
9
6
10
8
24
12
18
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

67698C91

HYDRAULIC VALVE

ASSY, integral P/S

1шт.

1

PIN, rolled

1шт.

2

SCREW

1шт.

3

SCREW

2шт.

4

PLATE, rating

1шт.

5

SCREW

6шт.

6

3141538R1

WASHER

WASHER

7шт.

7

3112273R1

COVER

CAP, end

1шт.

8

O-RING

2шт.

9

538918R1

ROTOR ASSY.

SET, orbit drive, consists of items 12 and 13 -

1шт.

10

3112276R1

PLATE

valve

1шт.

11

O-RING

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

1шт.

14

SLEEVE

1шт.

15

3112269R1

PIN

cross

1шт.

16

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

3112268R1

WASHER

RACE, bearing

1шт.

19

3112267R1

NEEDLE BEARING

1шт.

20

3112266R1

WASHER

axial

1шт.

21

RING, pin

1шт.

22

O-RING

1шт.

23

RING, seal

1шт.

24

HOUSING - consists of items 14 and 16 -

1шт.

25

BALL

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

3112265R1

SPRING

PLATE

4шт.

28

67699C91

PEDESTAL

SHAFT, control with nut

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

28

3118087R91

PEDESTAL

SHAFT, control with nut, Scandanavian market

1шт.

538928R1

SEAL KIT

SPARE PART o-rings, consists of items 8, 11, 21, 22, and 23, not illustrated

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20 hex, not illustrated

1шт.
