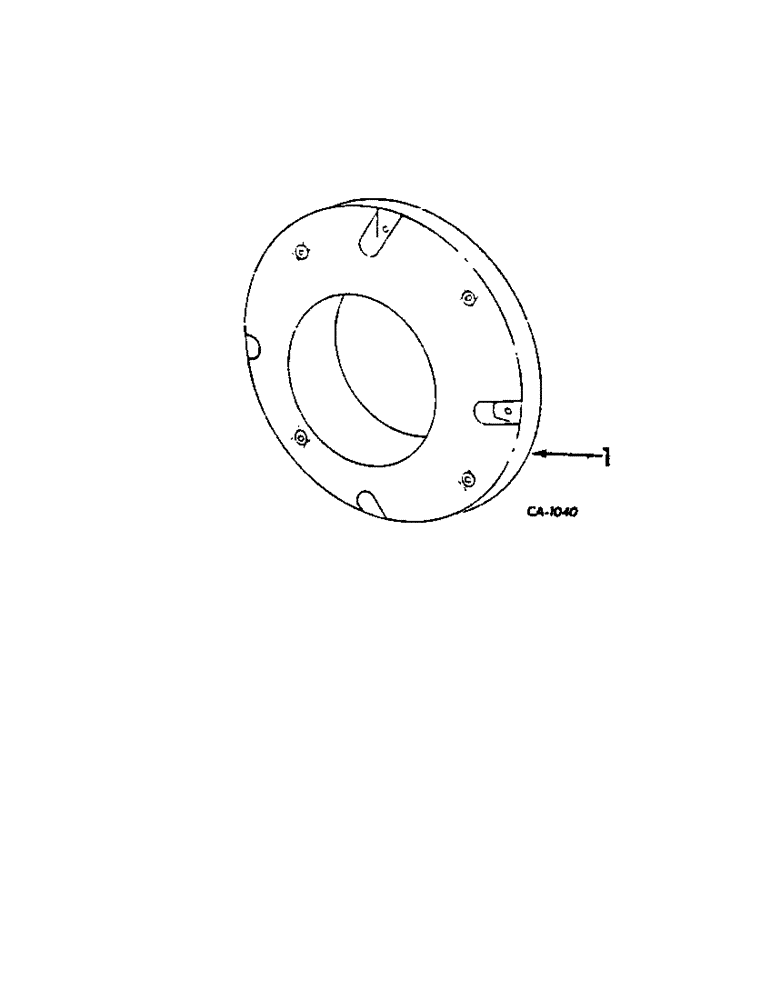

Запчасти Case IH 674 (02-02[A]) - REAR WHEEL WEIGHT Accessories & Attachments / Miscellaneous

1

406857R2

WEIGHT

rear wheel, approx. 120 lbs, 2 for a set, used for first inside or outside weight, or additional weight, used with 30 in. wheels

1шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

7/16-14 X 3-1/4 PHC hex hd cap

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

21029

SPARE PART

WASHER, 15/32 X 1 X 11 GA

8шт.

271501

SOCKET

7/16 hex

8шт.

537133R1

SPACER

taper

8шт.

1

406857R2

WEIGHT

rear wheel, approx. 120 lbs, 4 for a set, used for first inside and outside weight, used with 30 in. wheels

1шт.

189652

BOLT,Hex, 7/16" - 14 x 4 3/4", Gr 5

7/16-14 X 4-3/4 PHC hex hd cap

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

21029

SPARE PART

WASHER, 15/32 X 1 X 11 GA C-Z

8шт.

NLS

NO LONGER SERVICED

7/16-14 hex, tractors with additional weights

8шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

7/16 X 3-1/4 PHC hex hd cap

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

1

406858R1

WEIGHT

rear wheel, approx. 170 lbs, 2 for a set, used for first inside or outside weight, or additional weight, used with 36 in. wheels

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 X 1-1/4 ZND hex hd cap

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 X 1-5/16 X .074 C-Z

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, tractors with additional weights

6шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 X 1-1/4 ZND hex hd cap

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21-32 X 1-5/16 X .074 C-Z

6шт.

1

527650R1

rear wheel, approx. 170 lbs, 4 for a set, used for first inside or outside weight, used with 36 in. wheels

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 ZND hex hd cap

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21-32 X 1-5/16 X .074 C-Z

12шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8-11 C-Z hex

6шт.
