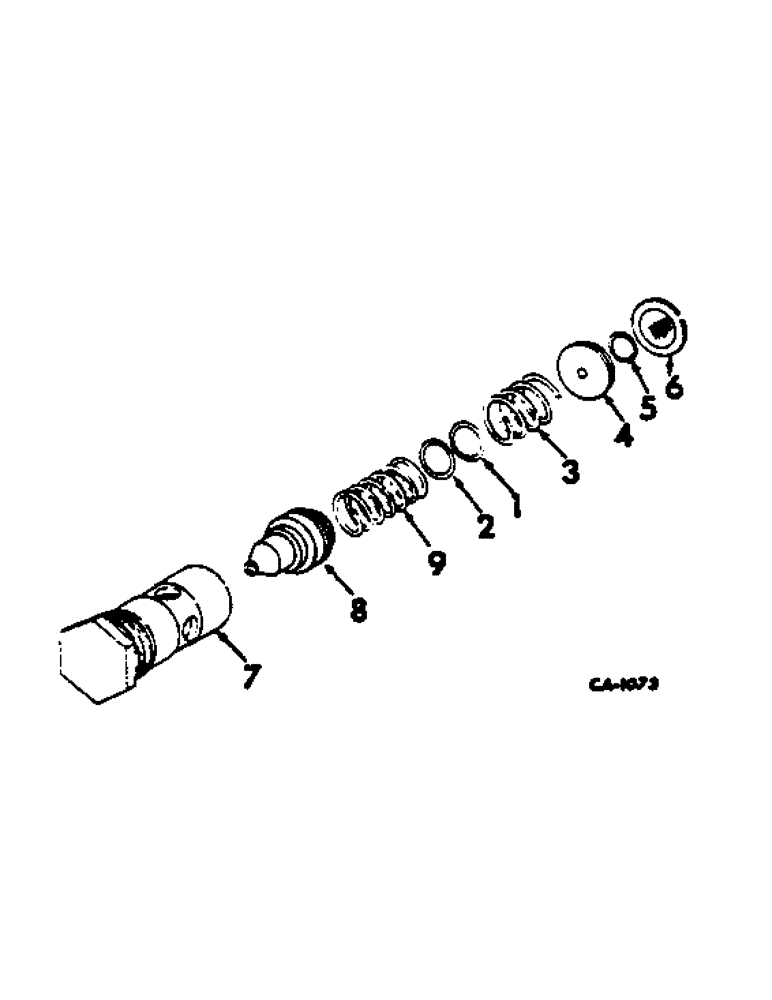

Запчасти Case IH 674 (10-33) - PILOT RELIEF VALVE (07) - HYDRAULICS

399858R92

VALVE

ASSY, pilot relief

1шт.

1

406185R1

O-RING

5/16 X 7/16 X 1/16 -S- treated

1шт.

2

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 X 7/16 X 1/16

1шт.

3

386040R1

SPRING

poppet return

1шт.

4

386042R1

PLATE

orifice

1шт.

5

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

O-RING, 11/16 X 13/16 X 1/16

1шт.

6

386073R91

SCREEN

ASSY,pilot relief valve

1шт.

7

BODY, relief valve, not serviced separately, furnish valve assy 399858R91 -

1шт.

8

VALVE, relief valve, not serviced separately, furnish valve assy 399858R91 -

1шт.

9

SPRING, relief valve, not serviced separately, furnish valve assy 399858R91 -

1шт.
