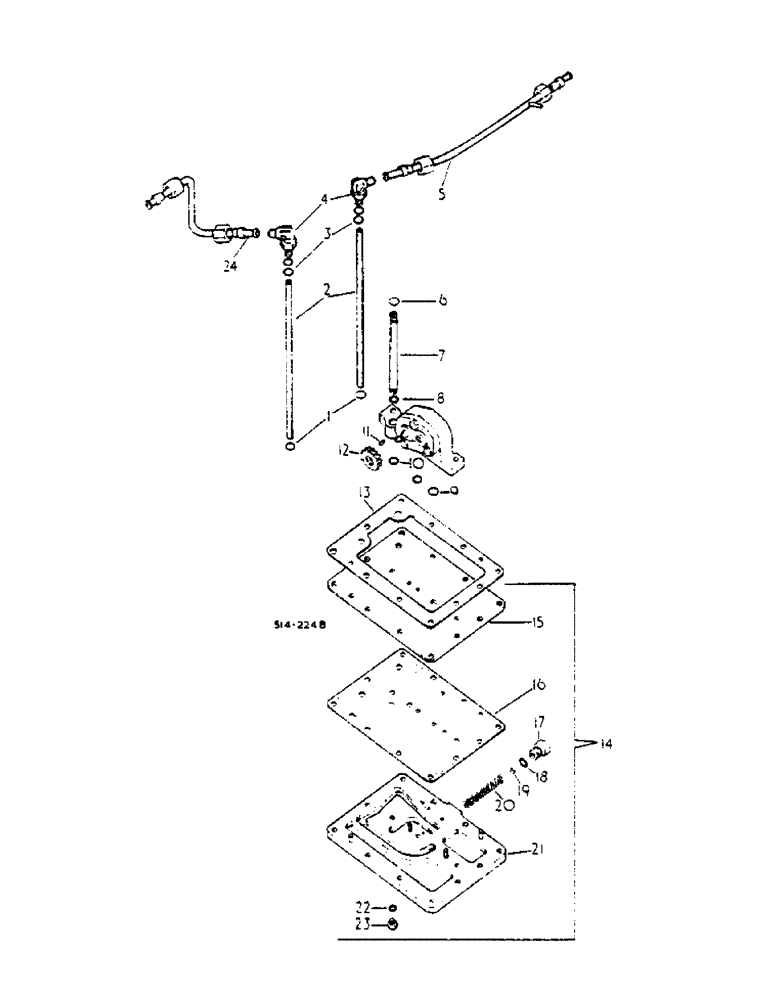

Запчасти Case IH 674 (10-27) - HYDRAULIC PUMP AND CONNECTIONS (07) - HYDRAULICS

1

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 X 11/16 X 3/32, tractors with torque amplifier

2шт.

2

402545R1

PRESSURE PIPE

TUBE, pump

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

4

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared tube adj str thd 90 deg

2шт.

5

66116C1

TUBE,0.5" OD, 13.04, 2.29" Length

ASSY, torque amplifer and fwd/rev return

1шт.

6

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 X 5/8 X 1/16

2шт.

7

402544R1

SUCTION PIPE

TUBE, oil inlet

1шт.

8

402540R91

PUMP, HYDRAULIC

ASSY tractors with torque amplifier

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

9

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

10

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 X 3/4 X 1/16

2шт.

11

427261

KEY

1/8 X 3/8 woodruff

1шт.

12

527758R1

GEAR

pump driven 19T, tractors with torque amplifier

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

13

402556R2

GASKET

pump mounting flange LT

1шт.

14

402547R95

VALVE

ASSY, regulator

1шт.

15

402554R1

PLATE

pump

1шт.

16

402555R2

GASKET

pump plate

1шт.

17

PLUG ASSY - see package 65732C91 -

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

19

SHIM - see package 65732C91 -

1шт.

20

SPRING, regulator valve - see package 65732C91 -

1шт.

21

L

OIL SEAL

BODY, regulator valve

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 X 1-3/8 hex hd cap

11шт.

103321

LOCK WASHER,3/8"

11шт.

22

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

9410356

PLUG

7/16-20 C-Z str o-ring boss

1шт.

24

66117C1

TUBE ASSY.

oil cooler return rear

1шт.

65732C91

KIT

PACKAGE, reg. valve service, not illustrated

1шт.
