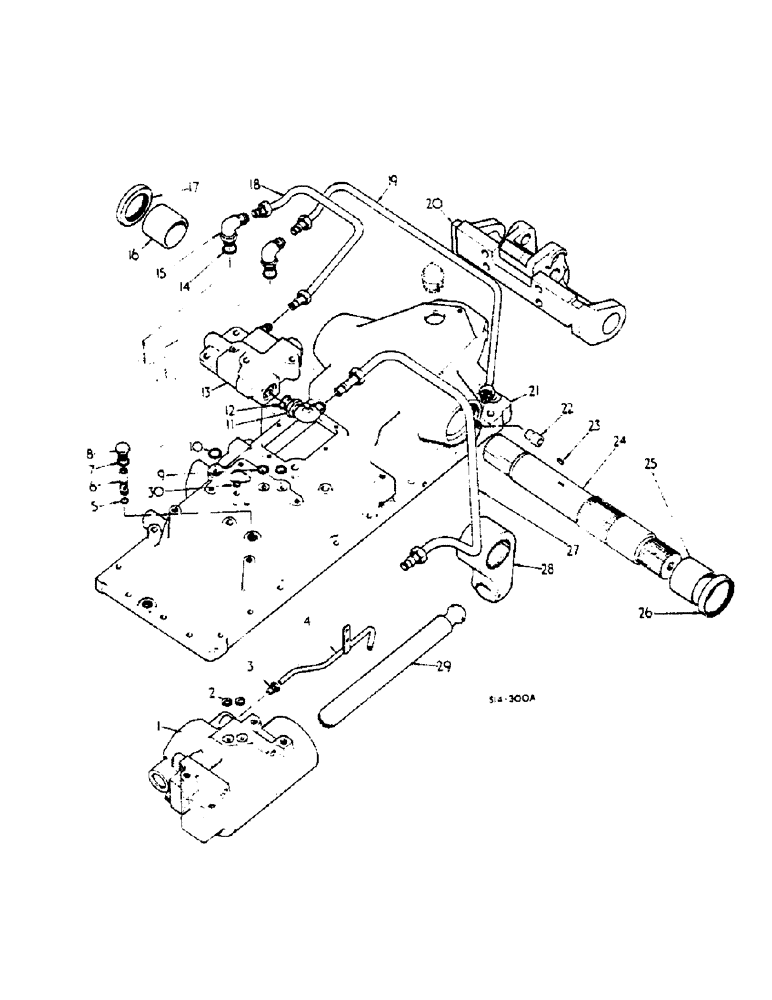

Запчасти Case IH 674 (10-22) - DRAFT CONTROL (07) - HYDRAULICS

1

399885R11

CYLINDER ASSY.

ASSY, draft control, for components, see list of parts under details of draft control cyl. valve

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2-13 X 1-3/8 hex hd cap

3шт.

400000R1

SEALING WASHER

cap screw sealing

3шт.

2

400002R1

OLIVE

SEAL, cyl. to hyd. housing

2шт.

3

222-504

TUBE NUT,9/16"-20

9/16-20 hi-duty tube fitting

1шт.

4

400029R1

TUBE

ASSY, lub

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 X 9/16 X 3/32

1шт.

6

400095R91

HYDRAULIC VALVE

ASSY, cushion

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

8

9410359

PLUG

3/4-16 str thd o-ring boss

1шт.

9

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

2шт.

10

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg.

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

13

59098C92

CONTROL VALVE

ASSY, unloading and flow control, for components, see list of parts under details unloading and flow control valve

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

4шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube adj str thd 90 deg, Start Serial: 101955

2шт.

15

9411106

ELBOW

3/4-16 37 deg hyd. flared tube adj str thd 45 deg, Serial Range: -101954

2шт.

16

399992R1

BUSHING

BEARING, rockshaft R.H.

1шт.

17

380771R91

SEAL

rockshaft R.H. oil

1шт.

17

380770R91

OIL SEAL

rockshaft R.H.

1шт.

17

530096R91

SEAL

rockshaft R.H. oil, optional

1шт.

18

66759C1

TUBE ASSY.

variable flow, Start Serial: 101955

1шт.

18

528170R1

TUBE

variable valve

1шт.

18

528166R1

TUBE

ASSY, variable valve to flow control, Serial Range: -101954

1шт.

19

66758C1

TUBE

variable flow control supply, Serial Range: -101954

1шт.

19

527916R1

TUBE

variable flow control supply, Serial Range: -101954

1шт.

20

527229R1

SPRING ASSY, draft sensing

1шт.

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

5/8-11 X 1-3/4 hex soc hd

4шт.

21

406003R11

HOUSING

hydraulic unit

1шт.

531143R2

STUD

top cover long

2шт.

531144R1

STUD

top cover short

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

22

399993R1

BUSHING

eccentric shaft

1шт.

23

376057R1

BUCKET TOOTH KEY

rockshaft hub

1шт.

24

400049R2

SHAFT

ROCKSHAFT, hyd draft control

1шт.

537126R2

PLATE

retaining lift arm

2шт.

24

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

25

527749R1

BUSHING,63.52mm ID x 66.67mm OD x 50.8mm L

rockshaft L.H.

1шт.

26

380212R91

OIL SEAL

rockshaft L.H.

1шт.

26

530095R91

SEAL

rockshaft L.H. oil, optional

1шт.

27

66760C1

TUBE ASSY.

draft control pressure, Start Serial: 101955

1шт.

27

400006R1

TUBE

ASSY, draft control pressure, Serial Range: -101954

1шт.

28

400053R1

LEVER

rockshaft bellcrank

1шт.

376069R1

SET SCREW

rockshaft bellcrank

1шт.

400052R1

PIN

hyd. cyl. conn. rod

1шт.

16558R1

WASHER

17/64 X 5/8 X 18 GA

1шт.

83723R1

WAVE WASHER

spring

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

29

400054R1

PIN

ROD, hyd. cyl. connecting

1шт.

30

59099C1

O-RING,2.39mm Thk x 6.6mm ID

1шт.
