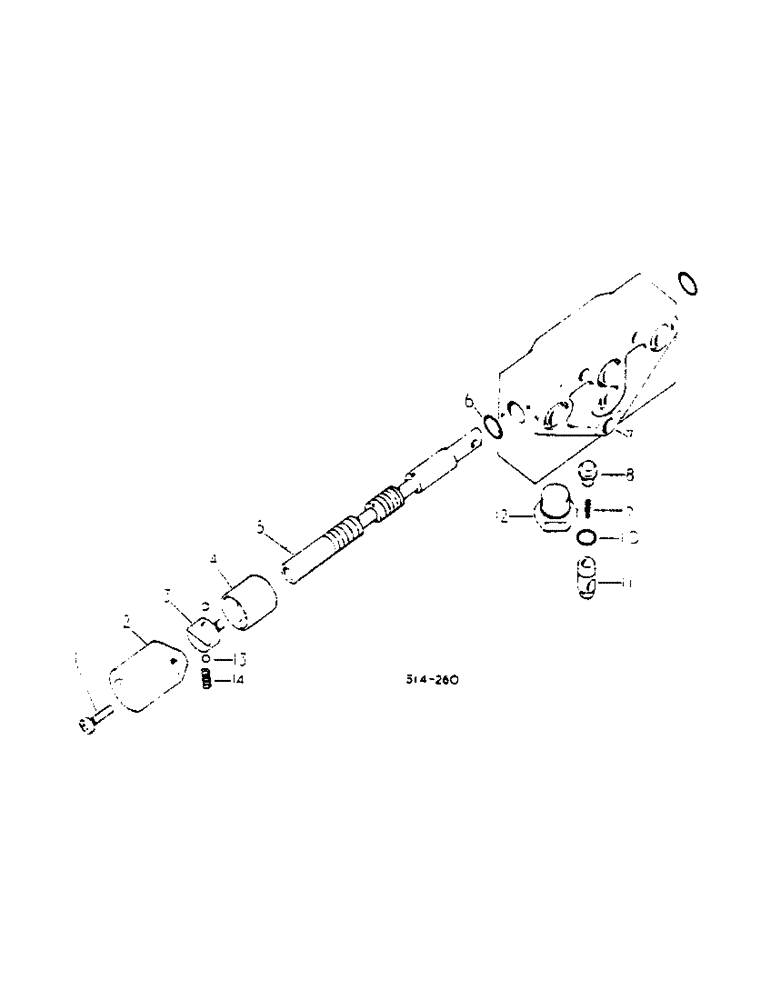

Запчасти Case IH 674 (10-21) - SINGLE ACTING AUXILIARY HYDRAULIC VALVE, S/N 101376 AND UP (07) - HYDRAULICS

3116055R92

HYDRAULIC VALVE

ASSY, single aux hyd.

1шт.

1

3113064R1

SCREW

1шт.

2

3113059R1

CAP

end

1шт.

3

3116057R1

CARRIER

detent

1шт.

4

3116058R1

CAGE

detent, not serviced seperately

1шт.

6

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 X 3/4 X 1/16, not serviced seperately

2шт.

8

3113068R1

VALVE POPPET

1шт.

9

3113069R1

SPRING

check valve

1шт.

10

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 X 9/16 X 1/16 CLASS 6

1шт.

11

3113070R1

GUIDE

check valve

1шт.

12

3113071R1

PLUG

SPARE PART ASSY 7/8 unf

1шт.

13

17008R1

BALL,1/4" Dia

Steel

1шт.

14

3113065R1

SPRING

detent

2шт.
