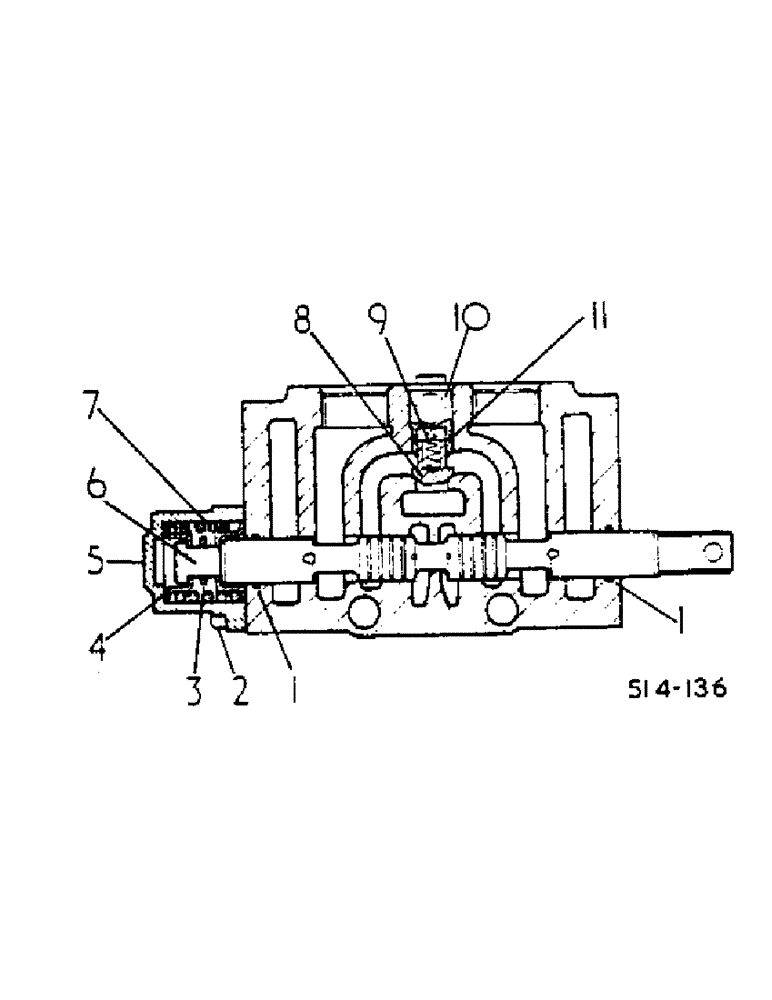

Запчасти Case IH 674 (10-19) - DOUBLE ACTING AUXILIARY VALVE ASSEMBLY, UP TO S/N 101572 (07) - HYDRAULICS

529696R91

HYDRAULIC VALVE

ASSY, double acting aux. valve

1шт.

1

379181R1

O-RING,0.614" ID x 0.07" Width

2шт.

2

3113064R1

SCREW

ASSY

2шт.

3

3113073R1

SPACER

1шт.

4

3113062R1

SEAT

spring

2шт.

5

3113059R1

CAP

end

1шт.

6

3113072R1

SCREW

shoulder

1шт.

7

3113060R1

SPRING

1шт.

8

3113068R1

VALVE POPPET

1шт.

9

3113069R1

SPRING

check valve

1шт.

10

3113070R1

GUIDE

check valve

1шт.

11

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.
