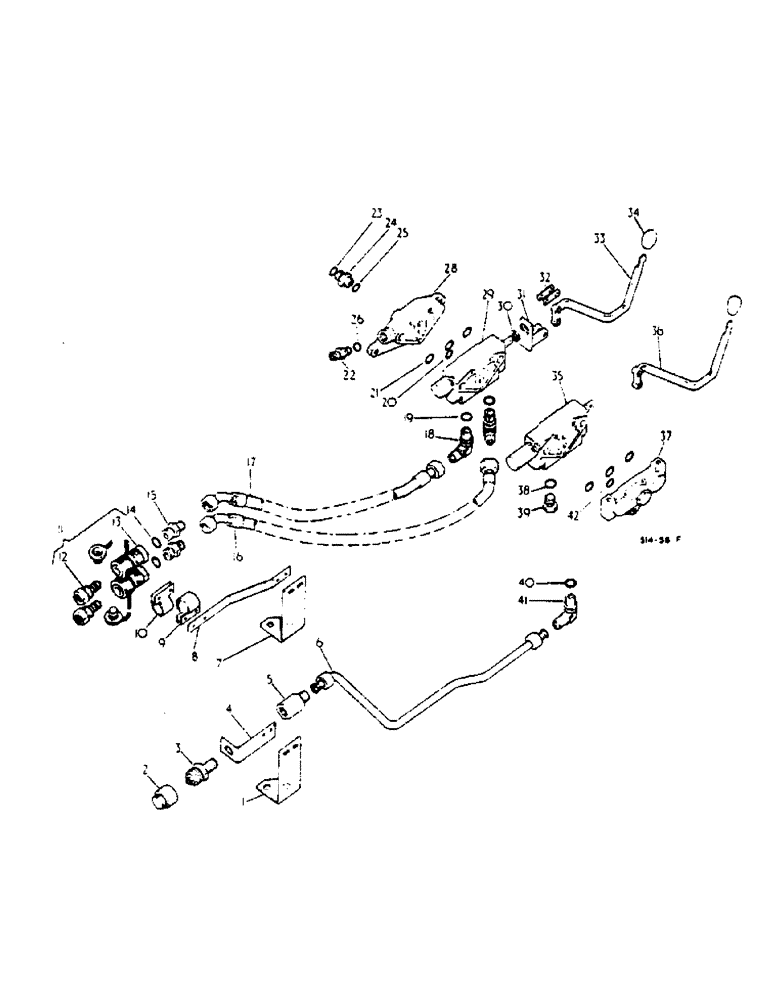

Запчасти Case IH 674 (10-13) - AUXILIARY VALVES (07) - HYDRAULICS

529688R91

ATTACHMENT, single auxiliary hydraulic valve, single acting valve and self sealing coupling, first bank, consists of all unmarked parts, and those marked Unit A

1шт.

529690R91

SPARE PART ATTACHMENT, singe auxiliary hydraulic valve, double acting valve and two self sealing couplings, first bank, consists of all unmarked parts and those marked unit B

1шт.

529692R91

ATTACHMENT, single auxiliary hydraulic valve, single acting valve and must be used in conjuction with first bank single auxiliary hydraulic valve attachment, second bank, consists of all unmarked parts and those marked unit C

1шт.

529694R91

SPARE PART ATTACHMENT, single auxiliart hydraulic valve, double acting valve and must be used in conjunction with first bank singe auxiliary hydraulic attachment, second bank, consists of all unmarked items and those marked Unit D

1шт.

535960R91

ATTACHMENT, single auxiliary hydraulic valve, single acting valve and one self sealing breakaway coupling, first bank, consists of all unmarked items and those marked Unit E

1шт.

537490R91

ATTACHMENT, single auxiliary hydraulic valve, single acting valve, special feature, Scandanavian market, consists of all unmarked parts, and those marked Unit F

1шт.

537216R92

ATTACHMENT, single auxiliary hydraulic valve, double acting valve, first bank, special feature, Australian market, consists of all unmarked parts and those marked Unit G

1шт.

1

533139R1

BRACKET

ASSY, breakaway coupling - UNIT A -

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 hex hd cap

2шт.

103323

LOCK WASHER,1/2"

2шт.

2

705578R1

CYLINDER END CAP

screwed self sealing coupling dust - UNIT A -

1шт.

2

3041963R1

CAP

screwed self sealing coupling dust, UNIT A, optional

1шт.

3

705579R1

COUPLING

screwed self sealing, UNIT A, optional

1шт.

4

533140R1

BRACKET

screw coupling - UNIT A -

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 X 7/8

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

2шт.

5

529708R1

ADAPTER

aux. valve to coupling tube - UNIT A -

1шт.

704337R1

SEALING WASHER

valve to coupling tube adapter

2шт.

6

533138R1

TUBE ASSY.

with sleeves and nuts, aux., Serial Range: valve-coupling

1шт.

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

7/8-14 C-Z 37 deg hyd. flared

2шт.

9403451

SLEEVE,37 Degree, 5/8" Tube

5/8 C-Z 37 deg hyd flared tube

2шт.

7

3113436R91

SUPPORT

BRACKET ASSY, self sealing coupling with edge - UNIT B, E AND G -

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 hex hd cap

2шт.

103323

LOCK WASHER,1/2"

2шт.

3113437R1

STRIP

MOULDING, edge

1шт.

8

533143R1

BAR

breakaway coupling bracket - UNIT B, E AND G -

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 X 7/8 hex hd

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

plain

2шт.

109084

NUT,1/4"-20, G5

2шт.

9

3114106R1

CLAMP

coupling - UNIT 2B AND E -

1шт.

10

3114106R1

CLAMP

coupling - UNIT 2B AND E -

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

11

3067991R91

BREAKER POINTS

self sealing - UNIT 2B AND E -

1шт.

12

3067992R91

COUPLING, BREAK AWAY

self sealing, male - - UNIT 2B AND E -

1шт.

9410360

PLUG

7/8-14 C-Z str thd o-ring boss - UNIT 2B, E AND 2G -

1шт.

13

3067993R91

COUPLING, BREAK AWAY

self sealing

1шт.

female - UNIT 2B AND E -

1шт.

3115783R1

O-RING

female half

1шт.

3115782R1

BACK-UP RING

backup

1шт.

373220R1

PLUG

SEAL, breakaway coupling dust - UNIT 2B AND E-

1шт.

401757R1

PLUG, breakaway coupling dust

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

breakaway coupling dust - UNIT 2B AND E -

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube - UNIT 2B, E AND 2G -

1шт.

15

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared - UNIT 2B, E AND 2G -

1шт.

16

533141R2

HOSE

aux valve to coupling long hyd. - UNIT B, E AND G -

1шт.

17

533142R2

HOSE,12.7mm ID x 610mm L

aux valve to coupling short hyd. - UNIT B AND G -

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared

1шт.

TUBE adj str thd o-ring 90 deg - UNIT 2B, E AND 2G -

2шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube - UNIT 2B, E AND 2G -

2шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16 - valve S/acting, Serial Range: -102915

1шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16 - valve D/acting, Serial Range: -104077

1шт.

20

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Valve S/acting, UNIT C AND D - - 2 UNITS A, B, E, F AND G -, Start Serial: 102916

1шт.

20

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Valve D/acting, UNIT C AND D - - 2 UNITS A, B, E, F AND G -, Start Serial: 104078

1шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - UNITS C AND D

2шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - UNITS A, B, E, F AND G -

4шт.

22

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 C-Z 37 deg hyd flared, Serial Range: -101954

1шт.

22

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube - - UNITS A, B, E, F AND G -, Start Serial: 101955

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9016 X 3/4 X 3/32 - UNITS A, B, E, F AND G -

1шт.

24

529705R1

UNION

CONNECTOR, aux. valve - UNITS A, B, E, F AND G -

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube - UNITS A, B, E, F AND G -

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube - UNITS A, B, E, F AND G -

1шт.

27

- NOT APPLICABLE -

1шт.

28

3116012R1

BLOCK

aux. valve control lever adapter, Start Serial: 101955

1шт.

28

529754R2

aux. valve control lever adapter - - UNITS A, B, E, F AND G -, Serial Range: -101954

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

29

VALVE ASSY, double acting aux. hyd. , Units B, D and G, for components, see list of parts under details of double acting aux. hyd. valve assy

1шт.

30

529698R1

SEALING RING,15.88mm ID x 23.8mm OD x 7.54mm Thk

aux. hyd. valve wiper

1шт.

31

529699R1

BRACKET

ASSYaux. valve control lever

1шт.

3061228R91

LOCK NUT

1/4-20 nylon insert lock

1шт.

186923

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW, 1/4-20 X 5/8 hex soc hd cap

2шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

32

529702R1

LINK

control lever connecting

2шт.

102776H

CLEVIS PIN,1/4" x 11/16"

Rod end

2шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

2шт.

33

530369R1

LEVER

ASSY, aux valve control - UNITS A, B, E, F AND G -

1шт.

34

400072R1

BUTTON

KNOB, aux. valve control lever

2шт.

35

VALVE ASSY, single acting aux. hyd, Units A, C, E, and F, for components, see list of parts under details of single acting aux. hyd. valve assy

1шт.

36

3112577R1

LEVER

ASSY, aux. valve control - UNIT C AND D -

1шт.

37

529697R2

PLATE

aux. hyd. valve end - - UNIT A, B, E, F AND G -

1шт.

On orders for plate 529697R1 funish R2, with two o-ring 392385R1, four o-ring 384578R1, and two o-ring 393349R1.

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 hex hd cap - 2 FOR UNITS A, B, E, F AND G -

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8-16 X 4-1/4 hex hd cap - UNITS A, B, E, F AND G -

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 hex hd cap - UNITS C AND D -

2шт.

103321

LOCK WASHER,3/8"

3шт.

22344

SET SCREW

SCREW, 3/8 X 5-3/4 - UNITS C AND D -

1шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube - UNIT C AND F , 2 FOR UNIT D AND G -

1шт.

39

9410360

PLUG

7/8-14 C-Z str thd o-ring boss - UNIT C AND F, 2 FOR UNIT D AND G -

1шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube - UNIT A -

1шт.

41

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared

1шт.

TUBE adj str thd o-ring 90 deg. - UNIT A -

1шт.

42

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - valve S/acting, Serial Range: -102915

1шт.

42

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - valve D/acting, Serial Range: -104077

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16 - valve S/acting - - UNIT C AND D - - 2 UNIT A, B, E, F AND G -, Start Serial: 102916

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16 - valve D/acting - - UNIT C AND D - - 2 UNIT A, B, E, F AND G -, Start Serial: 104078

1шт.

537080R1

DECAL

PRODUCT-GRAPHIC, control handle, not illustrated

1шт.

529706R1

TUBE

ASSY, aux. valve return, not illustrated, Serial Range: -101954

1шт.
