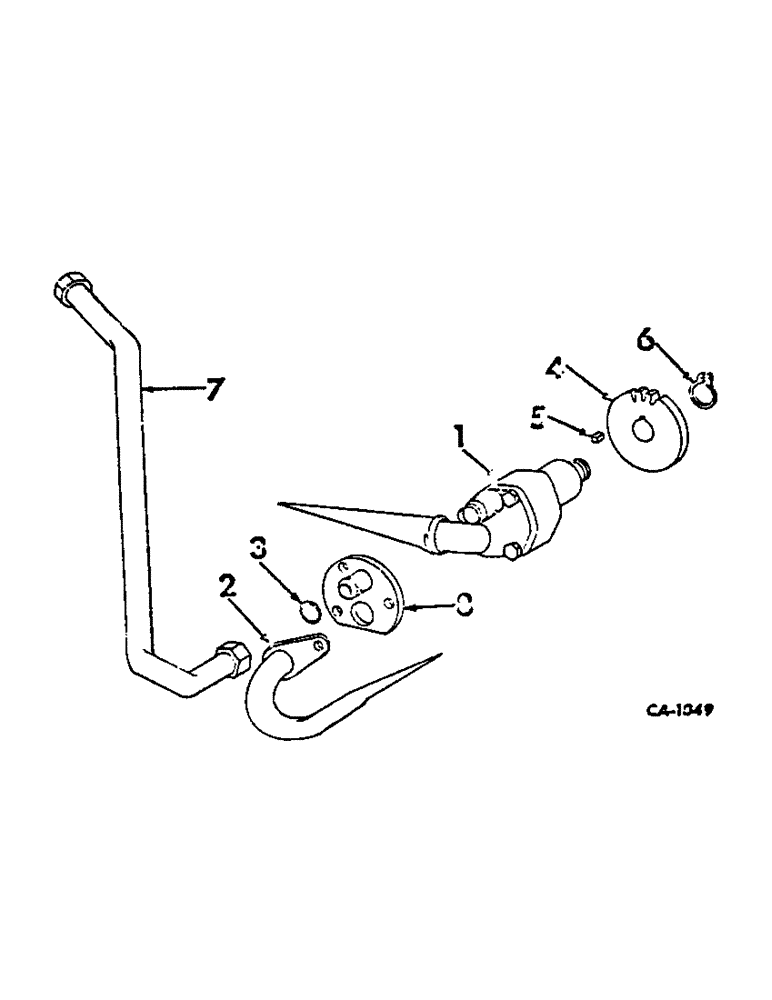

Запчасти Case IH 674 (10-11) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS

1

528504R91

PUMP

ASSY, transfer

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 X 1/2 hex soc hd

1шт.

CONE pt set

1шт.

527424R1

SCREW

transfer pump retaining

1шт.

2

529099R1

SUCTION PIPE

TUBE, transfer pump, used with pump 528504R91 only

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

4

528095R1

PINION

GEAR, transfer pump driven -21T-

1шт.

5

529100R1

BUCKET TOOTH KEY

transfer pump

1шт.

6

3042123R1

RING, SNAP

RING SNAP driven gear retaining

1шт.

7

527423R1

PRESSURE PIPE

ASSY, transfer pump outlet

1шт.

8

529275R2

PLATE

end, used with pump 528504R91 -

1шт.
