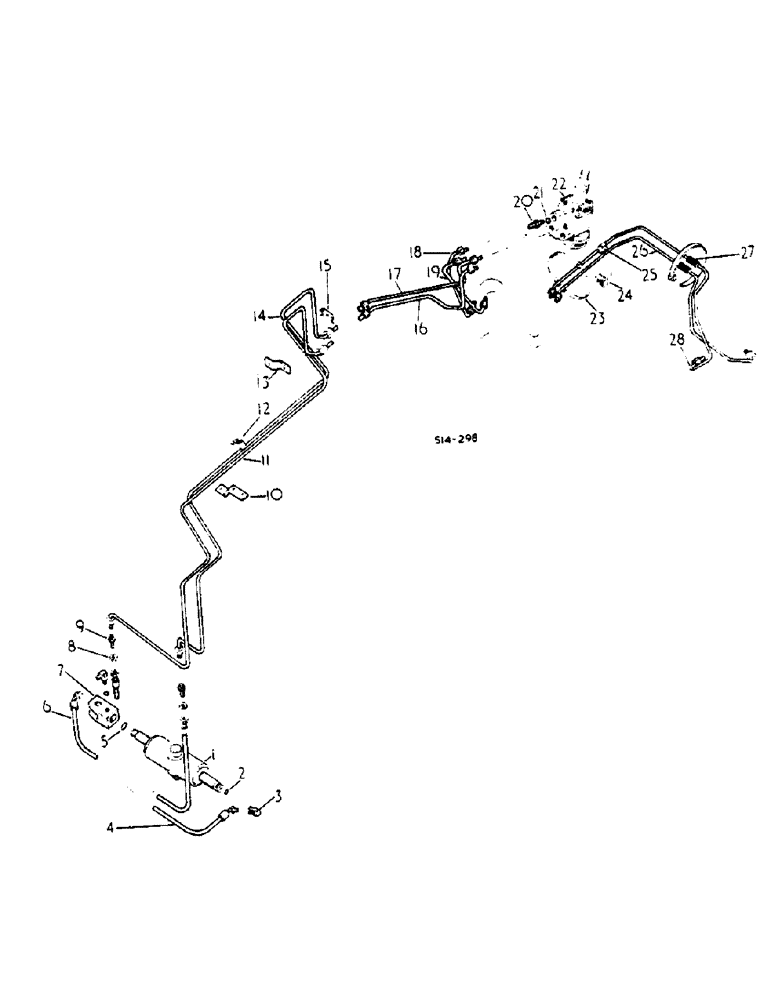

Запчасти Case IH 674 (10-09) - POWER STEERING, DANFOSS, S/N 101955 AND UP (07) - HYDRAULICS

1

CYLINDER ASSY, hyd. ps, for components, see list of parts under details of power steering cylinder

1шт.

2

36489R1

O-RING, 3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37deg hyd flared

2шт.

4

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

power steering cyl R.H.

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5/8 OD tube

1шт.

67488C1

AXLE PIN

power steering cyl

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 SH drive type lub

1шт.

6

530131R1

HOSE

ASSY, power steering cyl L.H.

1шт.

7

549670R1

CLEANER

CLEVIS, cyl end 7/8 thread

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z blukhead union lock

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

66109C1

PIPE

TUBE ASSY, power steering R.H. forward

1шт.

12

384891R11

CLAMP

ASSY, power steering tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 hex hd cap

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

66107C1

PIPE

TUBE ASSY, power steering L.H. forward

1шт.

15

529643R11

CLAMP

ASSY, power steering tube

1шт.

16

3116268R1

TUBE

ASSY, power steering R.H. rear

1шт.

17

3116267R1

TUBE ASSY.

power steering L.H. rear

1шт.

18

3116272R1

PIPE FITTING

TUBE ASSY, power steering return forward

1шт.

19

3116271R1

TUBE

ASSY, power steering pressure forward

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

22

VALVE ASSY, integral power steering, for components, see list of parts under details integral hydrostatic sterring valve

1шт.

23

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in, rear manifold tubes

2шт.

24

529638R1

BRACKET

rear manifold

1шт.

25

529637R1

GUIDE

manifold tube

1шт.

26

66105C1

TUBE ASSY.

power steering pressure return

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

28

66104C1

PIPE

TUBE ASSY, power steering return rear

1шт.
