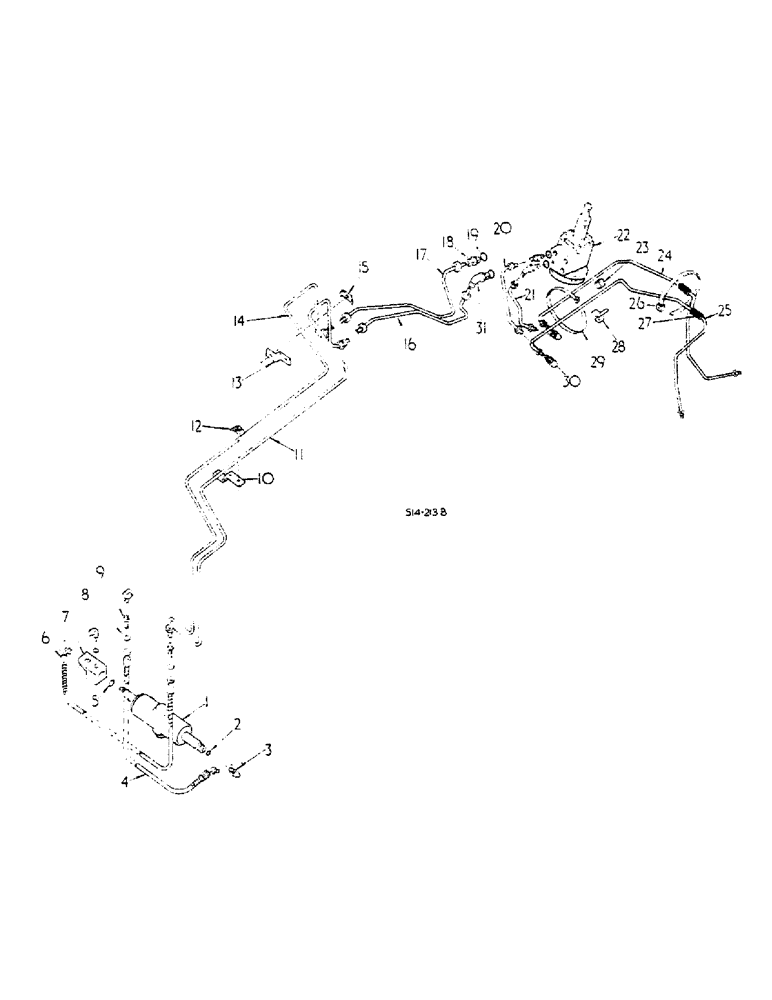

Запчасти Case IH 674 (10-06) - POWER STEERING, DANFOSS, UP TO S/N 101954 (07) - HYDRAULICS

1

CYLINDER ASSY, hyd. p.s., for components, see list of parts under details of power steering cylinder

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared

2шт.

4

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

power steering cyl. R.H.

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5/8 OD tube

1шт.

67488C1

AXLE PIN

power steering cyl.

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 SH drive type lub

1шт.

6

530131R1

HOSE

ASSY, power steering cyl. L.H.

1шт.

7

549670R1

CLEANER

CLEVIS, cyl. end 7/8 thread

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z bulkhead union

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 deg hyd. flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

529631R1

TUBE

ASSY, power steering R.H. forward, on orders for 529631R1 furnish 1 tube 3116268R1 W/ 1 tube 66109C1 and union 581639R1 -

1шт.

12

384391R11

CLAMP ASSY, power steering tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 C-Z hex

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

529632R1

TUBE

ASSY, power steering L.H. forward, on order for 529632R1 furnish 1 tube 3116267R1 W/ 66107C1 -

1шт.

15

529643R11

CLAMP

ASSY, power steering tube

1шт.

16

537425R1

TUBE

ASSY, power steering R.H. rear, on order for 537425R1 furnish 1 tube 3116268R1 W/ 1 tube 66109C1 and 1 union 587639R1 -

1шт.

17

537424R1

TUBE

ASSY, power steering L.H. rear, on orders for 537424R1 furnish 1 tube 3116267R1 W/ 1 tube 66107C1 -

1шт.

18

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 C-Z 37 deg flared

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

20

537429R1

PIPE FITTING

ASSY, power steering return forward, on orders for 537429R1 furnish 1 tube 3116272R1 W/ 1 tube 66104C1 and 1 union 587639R1 -

1шт.

21

537428R1

TUBE

ASSY, power steering pressure forward, on orders for 537428R1 furnish 1 tube 3116271R1 W/ 1 tube 66105C1, 1 uniom 5876369R1 and 1 check valve 57715C1 -

1шт.

22

VALVE ASSY, integral power steering, for components, see list of parts under details of integral hydrstatic steering valve

1шт.

23

529637R2

GUIDE

manifold tube

1шт.

24

529616R1

TUBE

ASSY, power steering pressure rear, on order for 529616R1 furnish 1 tube 3116274R1 W/ 1 tube 66105C1, 1 uniom 587639R1 and 1 check valve 57715C1 -

1шт.

25

529615R1

TUBE

ASSY, power steering return rear, on orders for 529615R1 furnish tube 3116272R1 W/ 1 tube 66104C1 and 1 union 587639R1 -

1шт.

26

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in, rear manifold tubes

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

28

529638R1

BRACKET

rear manifold

1шт.

29

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in, rear manifold tubes

1шт.

30

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ELBOW, 9/16-18 C-Z 37 deg hyd flared tube

2шт.

31

537423R1

ELBOW

ASSY, hyd tube

2шт.
