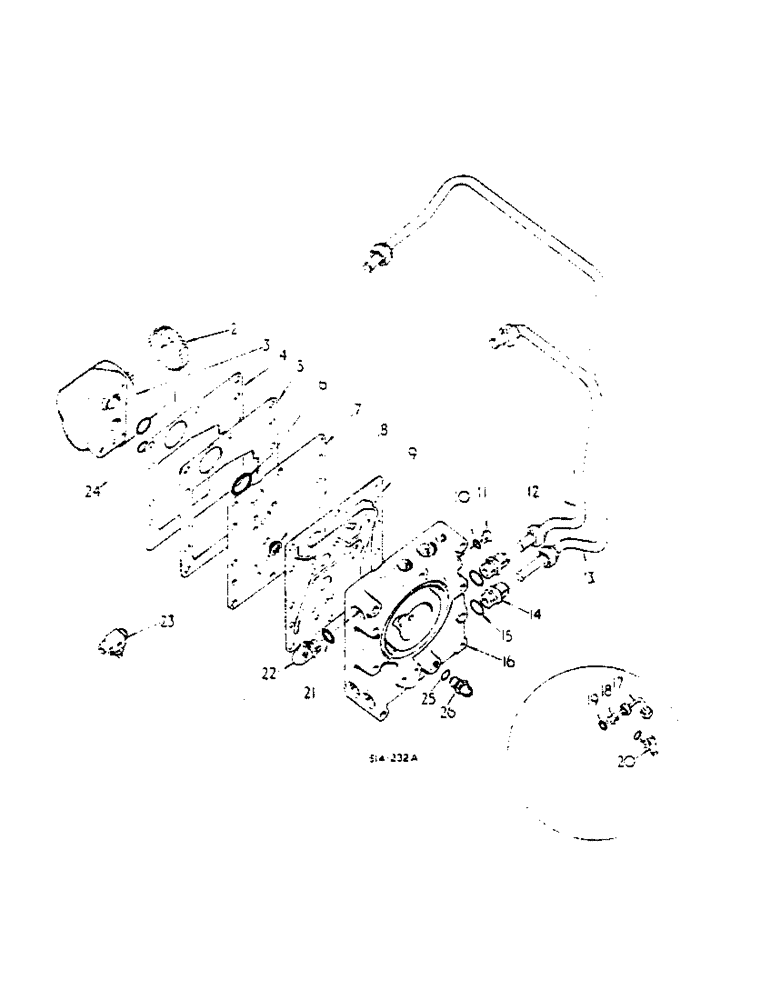

Запчасти Case IH 674 (10-02) - HYDRAULIC POWER SUPPLY AND MULTI CONTROL VALVE (07) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 X 1-1/4 X 3/32, pump suction port

1шт.

2

406764R1

PINION

GEAR, hyd pump driven -27T-

1шт.

*

19258R1

LOCK NUT,1/2"-20, GB

1/2-20 ESNA stop

1шт.

3

406827R91

PUMP

order pump 67248C91 -

1шт.

3

84573150R

REMAN-HYD PUMP

674 INTERNATIONAL DIESEL TRACTOR (EUROPE) (1/73-12/77), Reman for New PN 406827R91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

406763R91

PUMP

ASSY, hyd gear

1шт.

3

84573150R

REMAN-HYD PUMP

674 INTERNATIONAL DIESEL TRACTOR (EUROPE), ASSY, hyd gear (1/73-12/77), Reman for New PN 406763R91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

67248C91

PUMP

ASSY, hyd gear, optional

1шт.

*

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

*

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

*

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

4

- NOT USED -

1шт.

5

401736R3

GASKET

multiple control valve HV

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 X 1-3/4 X 1/8 inlet port

1шт.

7

405458R2

LARGE PLATE

PLATE, LARGE multiple control valve

1шт.

8

387926R2

RING

rectangular

1шт.

9

65000C2

GASKET

multiple control valve body

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

9410356

PLUG

7/16-20 str thd o-ring boss

1шт.

12

66761C1

TUBE ASSY.

draft control return, Start Serial: 101955

1шт.

12

399997R1

TUBE

draft control return, Serial Range: -101954

1шт.

13

66764C1

PIPE

auxiliary valve pressure, Start Serial: 101955

1шт.

13

530133R1

TUBE

auxiliary valve pressure, Serial Range: -101954

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ELBOW, 7/8-14 C-Z 37 deg hyd flared

1шт.

*

TUBE short swivel, Start Serial: 101955

2шт.

14

9411106

ELBOW

7/8-14 C-Z 37 deg hyd flared

1шт.

*

TUBE short swivel, Serial Range: -101954

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

16

57714C92

SPARE PART

VALVE ASSY, multiple control

1шт.

*

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

*

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 hex hd cap

1шт.

*

103321

LOCK WASHER,3/8"

10шт.

17

539835R1

TUBE ASSY.

IPTO pressure, Start Serial: 103005

1шт.

17

401738R1

TUBE

ASSY, IPTO pressure, tractors with IPTO -, Serial Range: -103004

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

7/16-20 37 deg hyd flared

1шт.

*

TUBE short swivel, Start Serial: 103005

1шт.

18

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

UNION, 7/16-20 37 deg hyd flared

1шт.

*

TUBE short swivel, tractors with IPTO -, Serial Range: -103004

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Tractors with IPTO

1шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 deg hyd flared tube, tractors with IPTO -

1шт.

*

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 deg hyd flared tube

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared

1шт.

*

TUBE adj str thd 90 deg

1шт.

23

3116263R1

3 WAY CONNECTION

TEE, MCV dump

1шт.

*

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32 pump pressure port

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

57577R91

VALVE, check, Start Serial: 101956

1шт.

26

56054C1

VALVE

SPARE PART check, Serial Range: -101954

1шт.

*

67249C91

SEAL KIT

PACKAGE, o-ring and gasket service, not illustrated, consists of

1шт.

*

PLATE, not illustrated

1шт.

*

DIAPHRAGM, not illustrated

1шт.

*

SEAL, not illustrated

1шт.

*

GASKET backup, not illustrated

1шт.

*

GASKET protector, not illustrated

1шт.

*

O-RING, not illustrated

1шт.

*

69354C1

SEAL

hyd. pump, used with pump 67248C91 or 406827R91, not illustrated

1шт.

*

69352C1

SEAL

hyd. pump, used with pump 66513C91 or 406763R91, not illustrated

1шт.

*

69381C1

ADHESIVE, tube, not illustrated

1шт.

*

406763R91

PUMP

ASSY, hyd gear, not illustrated, consists of

1шт.

*

84573150R

REMAN-HYD PUMP

674 INTERNATIONAL DIESEL TRACTOR (EUROPE), ASSY, hyd gear (1/73-12/77), Reman for New PN 406763R91

1шт.

*

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft, Not illustrated

1шт.

*

534262R91

PACKAGE

KIT, seal pack, not illustrated

1шт.

*

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

suction port, not illustrated

1шт.

*

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

pressure port, not illustrated

1шт.

*

406827R91

PUMP

ASSY, hyd. gear, not illustrated, consists of

1шт.

*

84573150R

REMAN-HYD PUMP

674 INTERNATIONAL DIESEL TRACTOR (EUROPE) (1/73-12/77), Reman for New PN 406827R91

1шт.

*

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

16007R1

BALL

7/32 dia., not illustrated

1шт.

*

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft, Not illustrated

1шт.

*

373244R91

SEAL

pump shaft, not illustrated

1шт.

*

371523R1

SPRING

back check, not illustrated

1шт.
