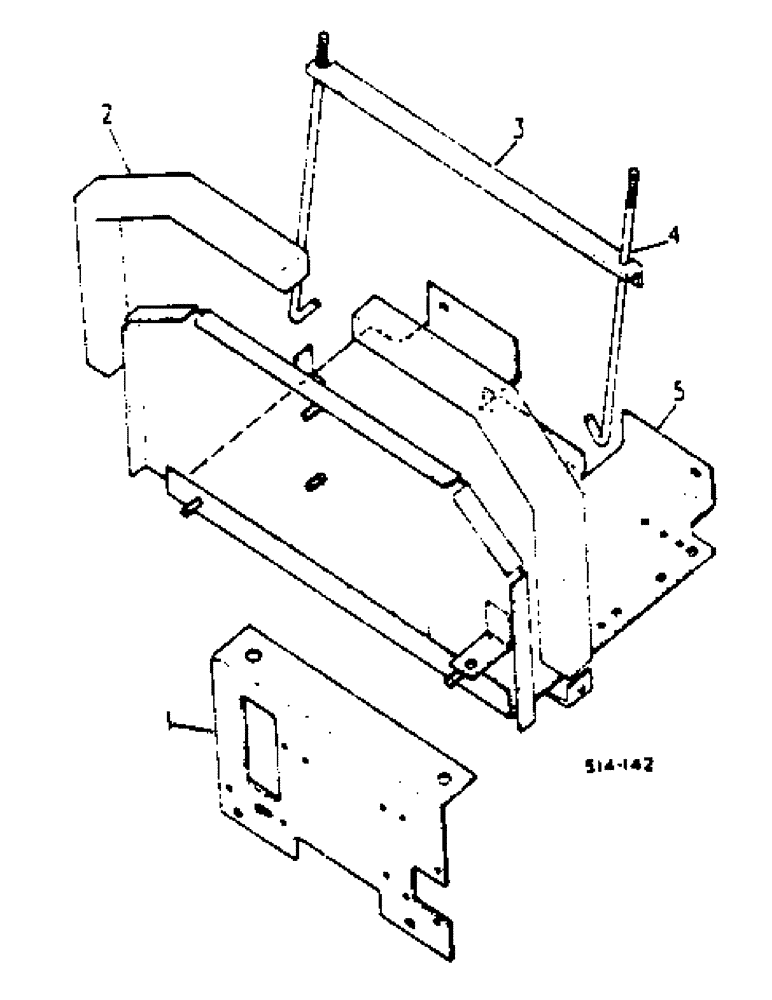

Запчасти Case IH 674 (08-26) - BATTERY TRAY (06) - ELECTRICAL

1

538054R1

SUPPORT

ASSY

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

2

394788R1

GASKET

GASKET, battery heat shield

2шт.

3

527604R1

ANGLE

battery hold down

1шт.

4

527605R1

ROD

battery hold down

2шт.

7500032

BUSHING

5/16-18 C-Z

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .051 C-Z

2шт.

5

538053R5

TRAY

ASSY, battery

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

2шт.

20893

SPARE PART WASHER, 11/32 X 1 X .120 C-Z

2шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

5

3113841R1

MOLDING

edge, special parts for Austria

1шт.

ATTACHMENT, special parts for Austria, factory application, consists of

1шт.

3113663R91

HARNESS

supplementry panel, Serial Range: -107025

1шт.

3116909R91

HARNESS

supplementry panel

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Panel harness to instrument panel, Start Serial: 107026

1шт.

3112364R91

LIGHT

main beam warning

1шт.

3041099R91

LAMP, 12V 2.2W blue

1шт.

705266R91

HORN

BUTTON, headlamp flash

1шт.

3113202R1

PLUG

plough light hole

1шт.

3112888R1

PLUG

plough light hole optional

1шт.
