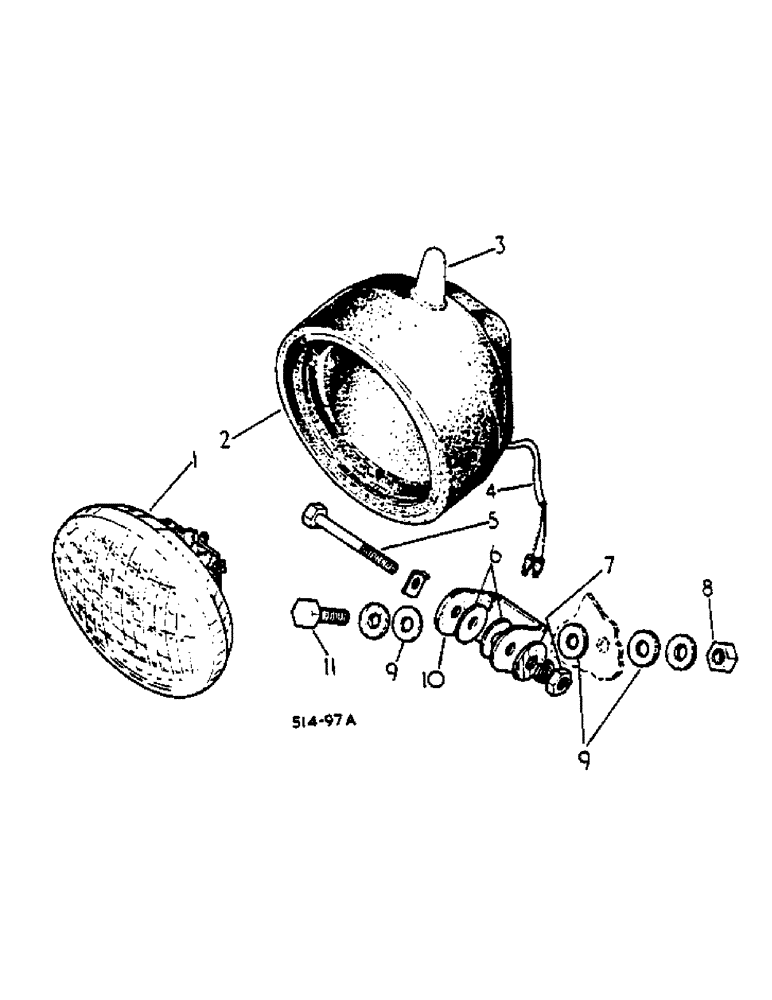

Запчасти Case IH 674 (08-24) - PLOUGH LIGHT (06) - ELECTRICAL

3112400R91

NO LONGER SERVICED

LIGHT, plough

1шт.

1

535850R1

LAMP

seal beam

1шт.

2

HOUSING, cpte. rubber, not serviced seperately

1шт.

3112688R1

SWITCH

1шт.

3112699R1

SCREWDRIVER

NUT, on orders for nut 3112699R1 furnish cover switch 3116610R1 -

1шт.

3

3112689R1

COVER

switch, funish cover switch 3116610R1 -

1шт.

3

3116610R1

COVER

switch

1шт.

4

3112685R91

HARNESS

cable

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT, 1/4 unf X 2 hex hd

1шт.

3072945R1

WASHER

tab

1шт.

6

3112690R1

WASHER

nylon

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 unf hex

1шт.

16559R1

WASHER,1/4"

17/64 X 5/8

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

flat steel

1шт.

9

3112401R1

WASHER

nylon

3шт.

10

3108515R1

SUPPORT

BRACKET

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120394

WASHER,3/8", SAE

flat steel

1шт.

531625R1

GROMMET

not illustrated

1шт.
