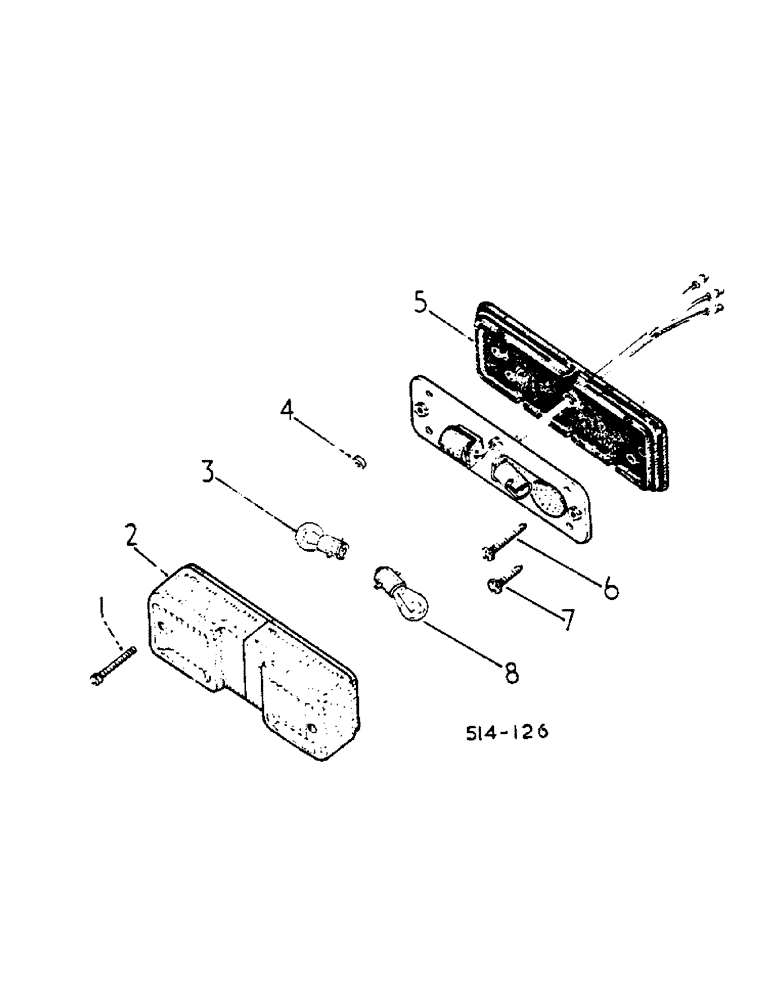

Запчасти Case IH 674 (08-23) - FENDER WIRING AND SIDE/FLASHER LIGHTS, FOR MACHINES WITH FLAT TOP FENDER ONLY (06) - ELECTRICAL

3112877R93

INDICATOR LIGHT

side and flasher

2шт.

145193

BATTERY

NO. 10-16 X 1/2 self tapping

8шт.

1

3112785R1

SCREW

4BA X 1-1/2 zinc pltd

4шт.

2

3113395R1

LENS

clear/amber

2шт.

3

3118024R1

LAMP

12V 5W festoon

1шт.

3

3113360R1

SPARE PART

LAMP 14V 7W bulb, as required

1шт.

4

3112786R1

WASHER

RING, retaining

4шт.

5

L

OIL SEAL

CUSHION, black rubber, vertical

2шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

4шт.

7

24247R1

SCREW

NO. 13-16 X 7/8 pan hd std

4шт.

8

3025210R91

BULB

LAMP, 12V 21W SCC

2шт.

3113658R91

HARNESS

fender L.H., not illustrated

1шт.

3113659R91

HARNESS

fender R.H., not illustrated

1шт.

708114R1

SPARE PART cable, not illustrated

2шт.

530043R1

GROMMET

fender harness, not illustrated

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way L.H. fender, not illustrated

7шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way R.H. fender, not illustrated

9шт.
