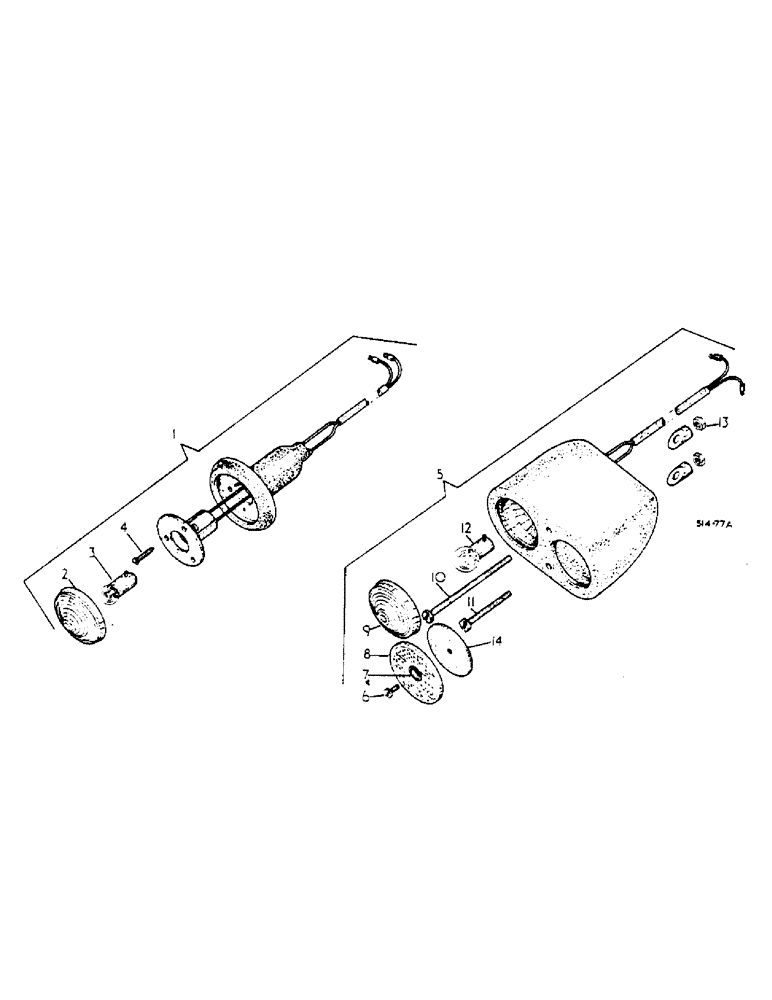

Запчасти Case IH 674 (08-18) - FENDER WIRING AND LIGHTS, TRACTORS WITH FLAT TOP FENDERS - 3114100R91 (06) - ELECTRICAL

1

3114100R91

LIGHT

side, order light 3116573R91 with screw 145193 -

2шт.

2

3112638R1

LENS

clear

2шт.

3

3113360R1

SPARE PART

LAMP, 12V 6W bulb

2шт.

4

NLS

NO LONGER SERVICED

NO. 6 X 1/2 slt pan head tap

6шт.

5

3114101R91

NO LONGER SERVICED

LIGHT, L.H. tail, illustrated

1шт.

5

3114102R91

TAIL LAMP

LIGHT, R.H. tail

1шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

2шт.

7

3112698R1

WASHER

cup nylon

2шт.

8

3112697R91

REFLECTOR

cpte., red

2шт.

9

3112696R1

LENS

red

2шт.

10

25945R1

SCREW

SPARE PART 1/4 X 4 cross recess zinc pltd

2шт.

3112700R1

WASHER

1шт.

11

445998

SCREW

SPARE PART 1/4 X 2 cross recess zinc pltd

2шт.

3112700R1

WASHER

1шт.

12

894878H1

BULB

LAMP, 12V 5W

2шт.

13

86625061

NUT,1/4"-20, GB

W/Nylon insert

4шт.

14

3115981R1

PLATE

reflector banking

1шт.

3113661R1

GROMMET

fender harness, not illustrated

2шт.

3113100R1

HARNESS

L.H. fender, not illustrated

1шт.

3113101R1

HARNESS

R.H. fender, not illustrated

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way L.H. fender, not illustrated

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way R.H. fender, not illustrated

6шт.

3112888R1

PLUG

blanking side light, not illustrated

2шт.

3113657R1

PLUG

blanking side light, not illustrated

4шт.
