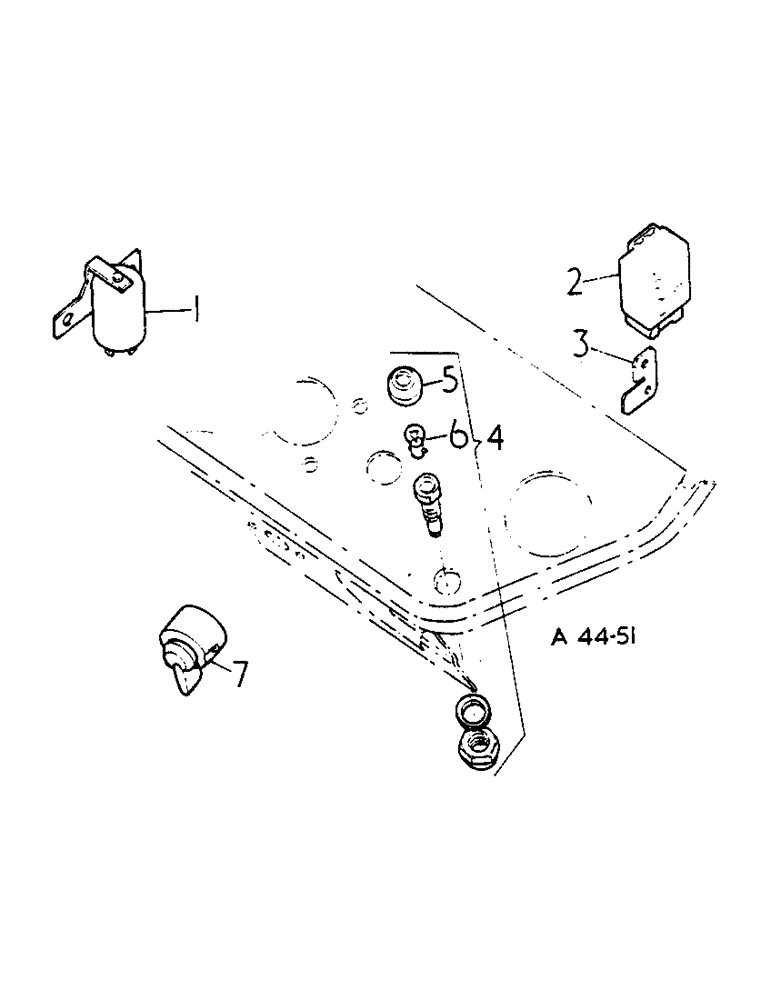

Запчасти Case IH 674 (08-15) - FLASHER INSTRUMENTS (06) - ELECTRICAL

1

3112365R92

BOX

FLASHER, unit

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

10-24 X 3/8 sltd pan hd tap

2шт.

2

- NOT USED -

1шт.

3

- NOT USED -

1шт.

4

3072048R91

WARNING LIGHT

flasher

2шт.

5

3074995R91

CAP

screwed with lens, yellow

1шт.

6

894350H1

BULB

LAMP, 12V, 2.2W MCC

1шт.

6

3119759R1

LAMP, 12V 2W 8.8MM tubular, optional

1шт.

7

3072070R91

FLASHER SWITCH

flasher

1шт.

134532

DISC

6-32 C-Z sq mach screw

2шт.

100740

SPARE PART 6-32 ZN X 3/4 sltd rd hd mach Slotted Rd Hd, #6-32 x 3/4"

2шт.

106495

2шт.

1092913R1

PRODUCT GRAPHIC

indicator warning, not illustrated

1шт.

1092914R1

PRODUCT GRAPHIC

indicator warning, not illustrated

1шт.
