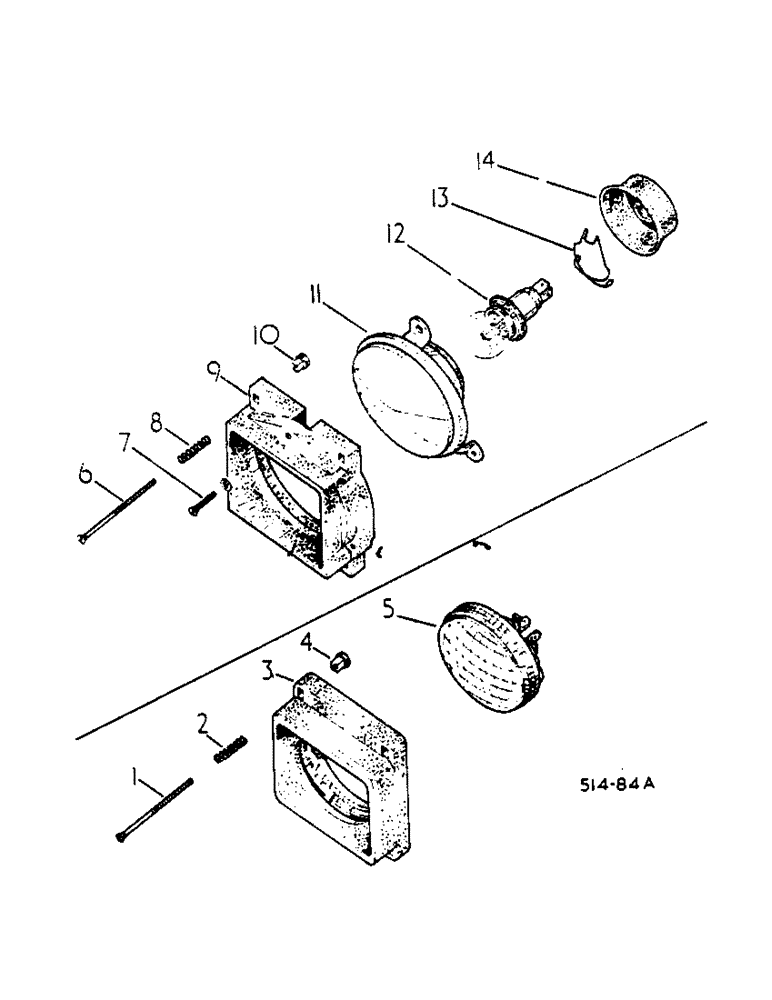

Запчасти Case IH 674 (08-12) - HEADLIGHTS AND WORKLIGHT (06) - ELECTRICAL

1

530179

SCREW, headlight mounting, sealed beam

8шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA

8шт.

2

528533R1

SPRING

headlight housing

8шт.

3

537013R1

HOUSING

headlight unit

2шт.

4

537014R1

INSERT

headlight housing

8шт.

5

3072947R91

HEADLIGHT

LAMP, head unit

2шт.

6

530179R1

SCREW

headlight mounting, non-sealed beam

8шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z

8шт.

7

537774R1

SCREW

headlight unit mounting

6шт.

933187R1

NUT,M5, Cl 8

hex

6шт.

446151

HYD CONNECTOR

WASHER, 13/64 X 15/32 X .36

6шт.

8

528533R1

SPRING

headlight housing

8шт.

9

537773R1

HOUSING

headlight unit

2шт.

10

537014R1

INSERT

headlight housing

8шт.

11

3115606R1

HEADLIGHT

unit, Auteroche

2шт.

11

537777R1

LIGHT

unit, Hella, illustrated

2шт.

12

537775R1

LAMP

12V 45/40W white bulb

2шт.

12

537776R1

LAMP

12V 45/40W yellow bulb

2шт.

13

537778R1

CLIP

headlight lamp mounting, Hella

1шт.

14

537779R1

CAP

headlight lamp sealing, Hella

2шт.

14

3115607R1

HEADLIGHT

headlight lamp sealing, Autroche

2шт.

537771R91

LIGHT

ASSY, headlight, Hella, not illustrated

1шт.

537771R91

LIGHT

ASSY, headlight, Hella, consists of, not illustrated

2шт.

537779R1

CAP

not illustrated

1шт.

537778R1

CLIP

not illustrated

1шт.

537777R1-

LIGHT, not illustrated

1шт.

3115602R91

HEADLIGHT

LIGHT ASSY, Autoroche, not illustrated consists of

2шт.

3115607R1

HEADLIGHT

CAP, not illustrated

1шт.

3115606R1

HEADLIGHT

LIGHT, not illustrated

1шт.
