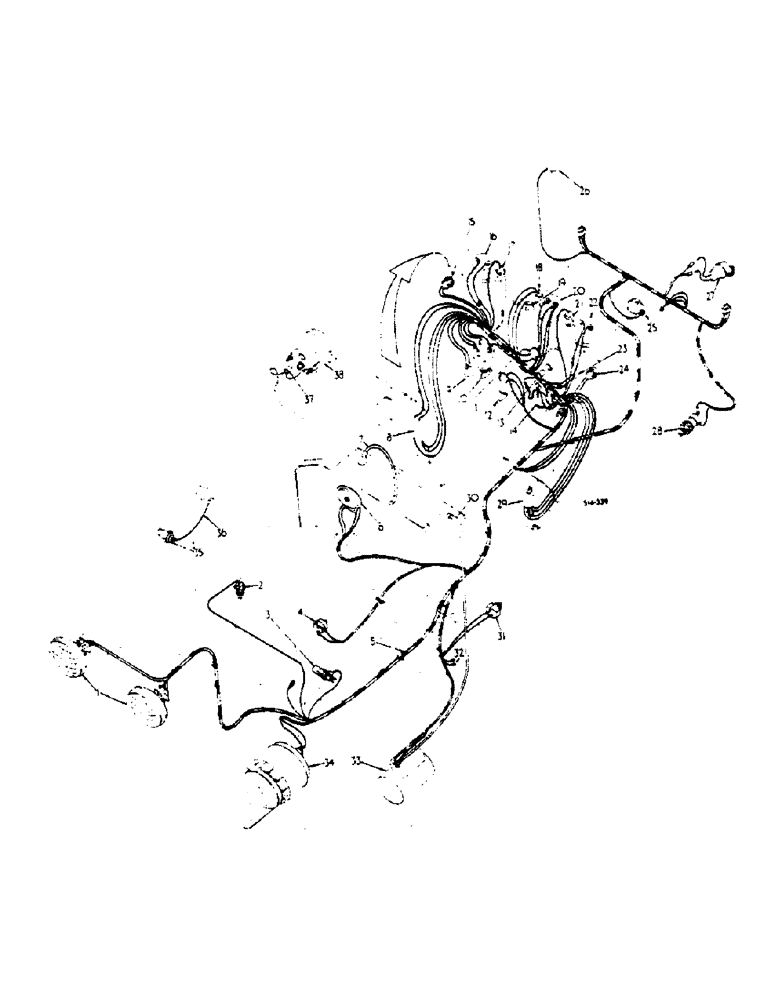

Запчасти Case IH 674 (08-08) - MAIN CABLE HARNESS AND CONNECTIONS, S/N 107026 AND UP (06) - ELECTRICAL

1

LIGHT, head R.H. and L.H., see headlight

1шт.

2

TRANSMITTER, heat indicator, see instrument panel and gauges

1шт.

3

PLUG glow, see thermostat

1шт.

4

SWITCH, brake light, see brake light switch and bracket, de-luxe

1шт.

5

3116902R91

HARNESS

ASSY, main cable

1шт.

6

HORN attachment, see horn attachment

1шт.

7

3116906R1

CABLE

battery, Serial Range: neg.-earth

1шт.

8

HOUSING, fuse, see engine controls and switches

1шт.

9

BUTTON, horn, see engine controls and switches

1шт.

10

SWITCH, key, see engine controls and switches

1шт.

11

894348H1

WARNING LIGHT

alternator

1шт.

894350H1

BULB

LAMP, 12V 2.2W MCC

1шт.

3119789R1

BULB

LAMP, 12V 2W 8.8 MM tubular, optional

1шт.

3074997R91

CAP

screwed with lens

1шт.

12

SWITCH, flasher, see flasher instruments

1шт.

13

HOLDER, tachometer

1шт.

LAMP, 12V 3W capless, see instrument panel and gauges

1шт.

14

SWITCH, light, see engine control and switches

1шт.

15

LIGHT, trailer warning, see flasher instruments

1шт.

16

INDICATOR, heat, see instrument panels and gauges

1шт.

17

3117434R1

HOLDER

lamp

1шт.

3117437R1

RIVET

cable

1шт.

705757R91

LAMP

panel 12V 5W MCC

1шт.

751467R1

BULB

LAMP, panel 12V 6W MCC, optional

1шт.

18

3117436R1

HOLDER

lamp

1шт.

3117437R1

RIVET

cable

1шт.

3041099R1

LAMP

trans oil pressure

1шт.

WARNING 12V 2.2 MES

1шт.

19

3117435R1

HOLDER

lamp

1шт.

3117437R1

RIVET

cable

1шт.

3041099R1

LAMP

park brake warning 12V 2.2 MES

1шт.

20

AMMETER, see instrument panels and gauges

1шт.

21

3117434R1

HOLDER

lamp

1шт.

3117437R1

RIVET

cable

1шт.

705757R91

LAMP

panel 12V 5W MCC

1шт.

751467R1

BULB

LAMP, panel 12V 6W MCC

1шт.

22

GAUGE, fuel, see instrument panels and gauges

1шт.

23

TACHOMETER, see instrument panels and gauges

1шт.

24

LIGHT, tractor warning, see flasher instruments

1шт.

25

376855R2

SWITCH ASSY, trans oil pressure warning light

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

1шт.

26

TRANSMITTER, fule gauge, see fuel tank supports and piping

1шт.

27

705271R1

SOCKET

power 2 pin

1шт.

709237R2

BRACKET

power socket, not required when de-luxe lighting fitted

1шт.

28

529461R91

IGNITION SWITCH

parking brake warning

1шт.

534351R1

COVER

warning light

1шт.

29

FLASHER, unit, see flasher instruments

1шт.

30

528301R1

CABLE ASSY.

battery to sol switch

1шт.

31

SWITCH, safety start, see neutral safety switch

1шт.

32

CONNECTOR, windscreen wiper, see safety cab

1шт.

33

STARTER, see starter motor

1шт.

34

ALTERNATOR, see alternator and connections

1шт.

537025R1

CLIP

main harness, not illustrated

1шт.

3070930R1

CLIP

main harness, not illustrated

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated

1шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.

3067819R1

SPARE PART main harness, on grill hsg. brkt., not illustrated

1шт.

537024R1

CLIP

safety start cable, on battery tray support, not illustrated

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Solenoid, Not illustrated

2шт.

3116240R1

CLIP

battery, not illustrated

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

NO.8 X 3/8, not illustrated

1шт.

225-10108

NUT,#8-32

Not Illustrated

1шт.

492-11008

LOCK WASHER,#8

Not Illustrated

1шт.

3112817R1

CLAMP

horn cable, not illustrated

1шт.

109084

NUT,1/4"-20, G5

Not Illustrated

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 way, not illustrated

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way, not illustrated

4шт.

708115R1

PLATE ASSY.

CLIP, temp sending unit cable, not illustrated

1шт.

539015R1

CLIP

main cable harness, not illustrated

2шт.

708114R1

SPARE PART main cable harness, not illustrated

1шт.

179812

GEAR

5/16-18 X 1/2 hex hd cap, not illustrated

1шт.

103320

LOCK WASHER,5/16"

Not Illustrated

1шт.

708115R1

PLATE ASSY.

CLIP, main cable harness, not illustrated

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

3/8-16 X 1/2 set, not illustrated

2шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.

289862R1

STRAP, fuel line, not illustrated

2шт.

3116908R1

CLIP,ELECTRICAL

safety start cable, not illustrated

1шт.

3116908R1

CLIP,ELECTRICAL

rear harness, not illustrated

2шт.

366460R1

CABLE CLIP

injection pump cover, not illustrated

2шт.
