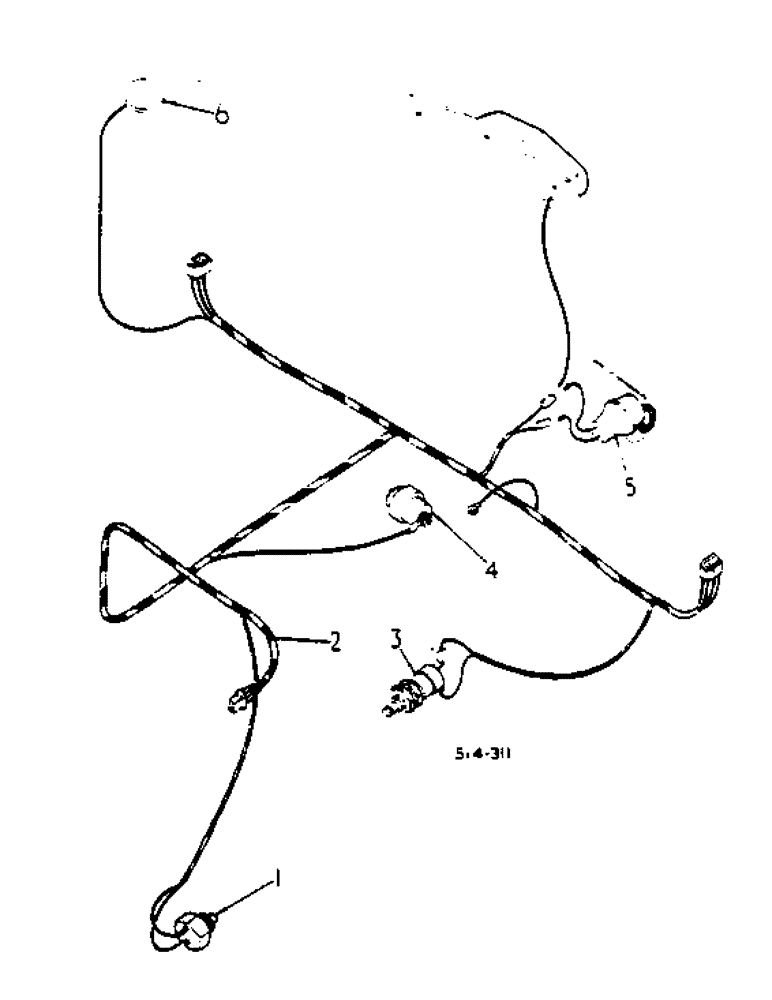

Запчасти Case IH 674 (08-07) - SIDE/TAIL HARNESS AND CONNECTIONS, UP TO S/N 107025 (06) - ELECTRICAL

1

SWITCH, safety start, see neutral safety start

1шт.

2

3113096R1

HARNESS

ASSY, side and tail

1шт.

3

529461R91

IGNITION SWITCH

parking brake warning light

1шт.

534351R1

COVER

warning light

1шт.

4

376855R92

SWITCH

trans. oil pressure warning light

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

1шт.

5

705271R91

SOCKET/RECEPTACLE

power 2 pin

1шт.

709237R2

BRACKET

power socket, not required when deluxe lighting fitted

1шт.

6

TRANSMITTER, fuel gauge, see fuel tank supports and piping

1шт.

537024R1

CLIP

side and tail harness, not illustrated

4шт.

537025R1

CLIP

side and tail harness, not illustrated

1шт.
