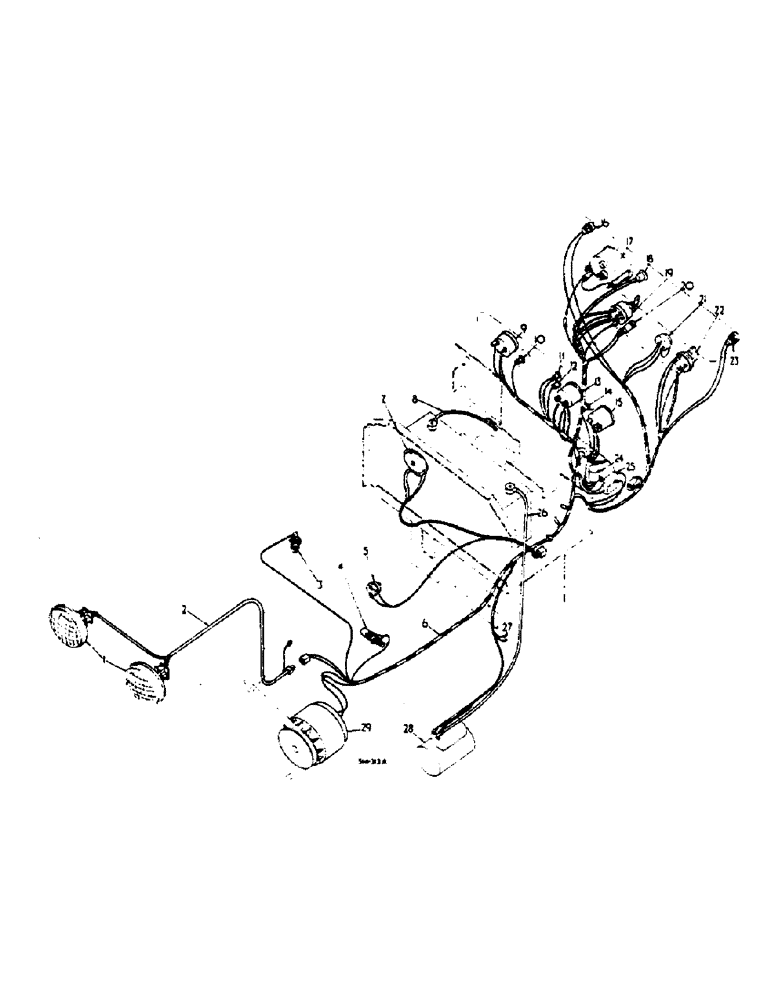

Запчасти Case IH 674 (08-04) - MAIN/PANEL HARNESS AND CONNECTIONS, UP TO S/N 107025 (06) - ELECTRICAL

1

LIGHT, head R.H. abd L.H., see headlight

1шт.

2

3113095R1

HARNESS

ASSY, headlight

1шт.

3

TRANSMITTER, heat indicator, see instrument panel and gauges

1шт.

4

PLUG glow, see thermostat

1шт.

5

SWITCH, brake light, see brake light switch and bracket de-luxe

1шт.

6

3113701R91

HARNESS

ASSY, main/panel

1шт.

7

HORN see horn

1шт.

8

3113066R1

CABLE

battery negative to earth, snychromesh drive tractors

1шт.

8

529967R1

CABLE

battery negative to earth, heavy duty battery att

1шт.

9

INDICATOR, heat, see instrument panels and gauges

1шт.

10

3117434R1

HOLDER

lamp

1шт.

3117437R1

RIVET

1шт.

705757R91

LAMP

panel 12V 5W MCC

1шт.

751467R1

BULB

LAMP, panel 12V 6W MCC, optional

1шт.

11

3117435R1

HOLDER

lamp

1шт.

3117437R1

RIVET

1шт.

3041099R1

LAMP

LAMP, trans. oil pressure warning, 12V 2.2 MES

1шт.

12

3117435R1

HOLDER

lamp

1шт.

3117437R1

RIVET

1шт.

3041099R1

LAMP

park brake warning 12V 2.2 MES

1шт.

13

AMMETER, see instrument panels and gauges

1шт.

14

3117434R1

HOLDER

lamp

1шт.

3117437R1

RIVET

1шт.

705757R91

LAMP

panel 12V 5W MCC

1шт.

751467R1

BULB

panel 12V 6W MCC

1шт.

15

GAUGE, fuel, see instrument panels and gauges

1шт.

16

LIGHT, trailer warning, see flasher instruments

1шт.

17

TACHOMETER, see instrument panel and gauges

1шт.

18

894348H1

WARNING LIGHT

altenator

1шт.

894350H1

BULB

LAMP, 12V 2.2W MCC

1шт.

3119789R1

BULB

LAMP, 12V 2W 8.8 MM tubular, optional

1шт.

3074997R91

CAP

screwed with lens

1шт.

19

SWITCH, key, see engine controls and switches

1шт.

20

BUTTON, horn, see engine controls and switches

1шт.

21

SWITCH, flasher, see flasher instruments

1шт.

22

SWITCH, light, see engine control and switches

1шт.

23

LIGHT, tractor warning, see flasher instruments

1шт.

24

FLASHER, unit, see flasher instruments

1шт.

25

HOUSING, fuse, see engine controls and switches

1шт.

26

528301R1

CABLE ASSY.

battery to starter B term

1шт.

27

CONNECTOR, windscreen wiper, see safety cab

2шт.

28

STARTER, see starter motor

1шт.

29

ALTERNATOR, see alternator and connections

1шт.

535305R1

CLIP

panel harness, not illustrated

2шт.

537025R1

CLIP

panel harness, not illustrated

1шт.

3070930R1

CLIP

main harness, not illustrated

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated

1шт.

103321

LOCK WASHER,3/8"

Not Illustrated

1шт.

3067819R1

SPARE PART headlight harness, not illustrated

1шт.

535303R1

CABLE CLIP

edge, not illustrated

1шт.

537024R1

CLIP

safety start cable,on battery tray support, not illustrated

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Solenoid, Not illustrated

3шт.

366460R1

CABLE CLIP

fuel sender, not illustrated

1шт.

537024R1

CLIP

brake light cable, on battery tray supports, not illustrated

1шт.

3110240R1

CLIP, battery cable, not illustrated

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

NO.8 X 3/8, not illustrated

1шт.

225-10108

NUT,#8-32

Not Illustrated

1шт.

492-11008

LOCK WASHER,#8

Not Illustrated

1шт.

3112817R1

CLAMP

horn cable, not illustrated

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Not illustrated

1шт.

109084

NUT,1/4"-20, G5

Not Illustrated

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 way panel harness, not illustrated

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way panel harness, not illustrated

1шт.

708114R1

SPARE PART headlight harness

2шт.
