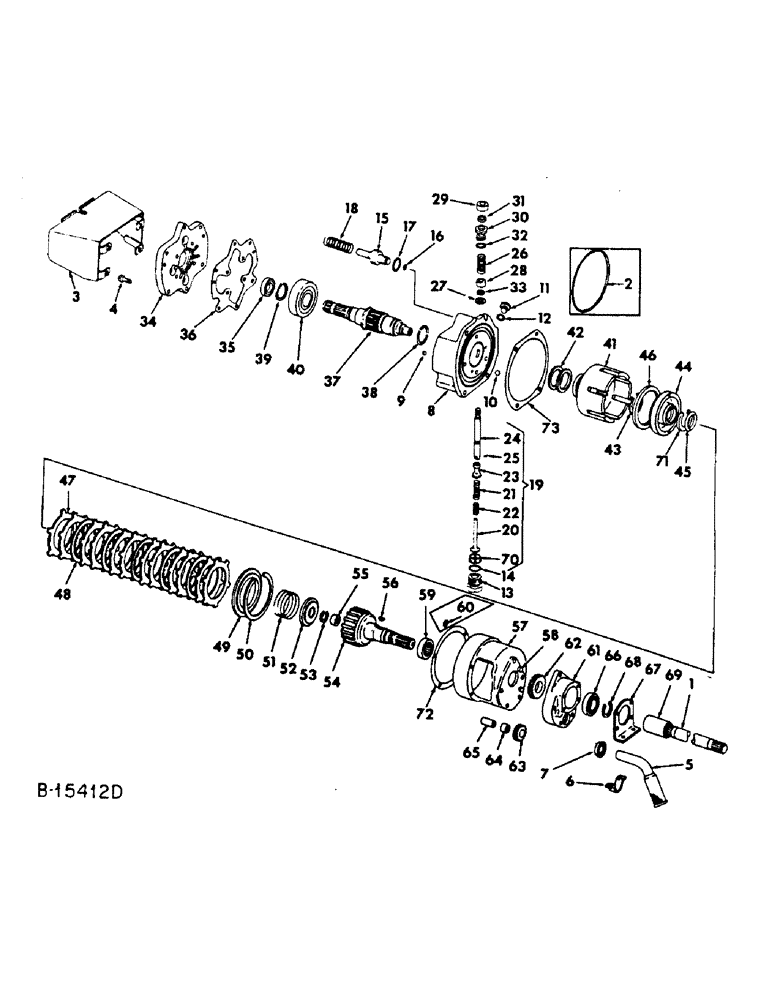

Запчасти Case IH 666 (07-36) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF (04) - Drive Train

ATTACHMENT, independent PTO, 540 RPM, 389119R92

1шт.

1

389141R11

SHAFT

ASSY, PTO extension

1шт.

2

NOT USED THIS APPLICATION

1шт.

3

64585C91

SHIELD

ASSY, w/product graphic independent PTO safety, Replaces 389143R11

1шт.

4

340385R1

BOLT

independent PTO safety shield

4шт.

5

389142R11

TUBE

PIPE ASSEMBLY, suction, optional w/pipe 391031R91

1шт.

5

391031R91

PIPE

ASSY, suction, optional w/pipe 389142R11

1шт.

6

381525R1

SUPPORT TUBE,2.8" Length

SUPPORT, suction pipe

1шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

suction tube

1шт.

8

530687R91

HOUSING, w/two balls, 16008R1 & ball, 16010R1, independent PTO

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

446229

WASHER,1/2" x 1 1/4" x .109"

9/16 x 1-1/4 x .109

1шт.

9

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

2шт.

10

17010R1

BALL,5/16" Dia

1шт.

11

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 c-z str thd-o-ring boss, gauge hole

1шт.

12

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Gauge hole plug

1шт.

13

389126R2

PLUG, hydraulic

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, valve stop plug

1шт.

15

381464R22

PISTON

ASSY, anti-creep brake

3шт.

16

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, anti-creep brake piston

3шт.

17

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/16, anti-creep brake piston

3шт.

18

381466R1

SPRING

anti-creep brake piston

3шт.

19

528484R93

LOCK VALVE

VALVE ASSY, control

1шт.

20

381469R12

GUIDE

ASSY, control valve, optional w/70504C1

1шт.

21

381760R1

SPRING

control valve light

1шт.

22

403905R2

VALVE SPRING

SPRING, control valve heavy

1шт.

23

381472R1

VALVE

control

1шт.

24

528485R1

STEM

control valve guide

1шт.

25

400518R2

PIN,1.59mm OD x 9.4mm L

control valve dwol

1шт.

26

381762R1

VALVE SPRING

SPRING, control valve bumper

1шт.

27

384562R1

SHIM

bumper spring, 5 (Or as required)

5шт.

28

389128R1

CUP ASSY.

CUP, bumper spring pre-load

1шт.

29

528486R1

STOP

control valve stem

1шт.

102635

NUT,3/8"-16, G5

1шт.

30

389129R3

GUIDE

control valve

1шт.

31

381477R91

SEAL,9.73mm ID x 22.33mm OD x 6.35mm Thk

control valve guide oil

1шт.

32

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, control valve guide

1шт.

33

384875R1

WASHER

control valve stem

1шт.

34

395327R1

COVER, independent PTO housing

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

8шт.

35

381480R91

OIL SEAL

output shaft oil

1шт.

36

389131R1

GASKET

independent PTO housing cover

1шт.

37

71260C1

SHAFT

independent PTO, 540 RPM output, Replaces 389123R3

1шт.

38

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2-1/8 x 2-5/16 x 3/32, output shaft

1шт.

39

555570R1

SNAP RING

RING, output shaft rear brg retaining snap

1шт.

40

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, output shaft rear ball

1шт.

41

381484R2

CUP

clutch

1шт.

42

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup seal

2шт.

43

68625C1

RING

clutch cup retaining snap

1шт.

44

68080C1

PISTON

clutch, Replaces 405473R1

1шт.

45

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1-7/8 x 2-1/4 x 3/16, clutch piston

1шт.

46

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL, clutch piston oil

1шт.

47

NOT SERVICED SEPARATELY ORDER SERVICE PACKAGE 68802C91

1шт.

48

NOT SERVICED SEPARATELY ORDER SERVICE PACKAGE 68802C91

1шт.

49

381491R1

RETAINER

clutch drive disc

1шт.

50

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING, clutch driven disc retainer snap

1шт.

51

381493R1

SPRING

clutch release

1шт.

52

381494R1

RETAINER

clutch release spring

1шт.

53

370504R1

RING

clutch release spring retainer snap

1шт.

54

389529R1

SHAFT

drive

1шт.

55

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, drive shaft front needle

1шт.

56

218211

DRIVING SPROCKET

1/4 x 3/4 Woodruff 91, drive shaft

1шт.

57

529564R21

CARRIER

ASSY, independent PTO clutch

1шт.

27907R1

CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel

SCREW, 3/8 x 2.500 pln type 8 12 PT flg

4шт.

58

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x 3/4 dowel

2шт.

59

359950R91

NEEDLE BEARING

BEARING, drive shaft rear

1шт.

60

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16, clutch pressure tube

1шт.

61

389136R1

HOUSING

pump

1шт.

NLS

NO LONGER SERVICED

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

62

389137R1

GEAR

pump drive, 25T

1шт.

63

389138R1

GEAR

pump idler, 15T

1шт.

64

389139R91

BEARING, NEEDLE

BEARING, pump idler gear needle

1шт.

65

389140R1

PIN

SHAFT, pump idler gear

1шт.

66

ST568

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, drive shaft front ball

1шт.

67

381503R1

RETAINER

drive shaft front bearing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

68

359141R1

RING, SNAP

RING, drive shaft front bearing snap

1шт.

69

360168R1

COUPLING,12T

extension shaft

1шт.

70

395328R2

SPACER

valve control

1шт.

71

258400C1

SNAP RING,#187, Ext

Ring, Snap, , clutch piston stop #187, Ext

1шт.

72

529565R1

GASKET

independent PTO clutch carrier

1шт.

73

530690R1

GASKET

independent PTO housing

1шт.

68802C91

DISC

PACKAGE, IPTO clutch plate and disc, Consists of

1шт.

CLUTCH DRIVEN DISC (NSS)

12шт.

CLUTCH PLATES (NSS)

5шт.

64553C1

DECAL

PRODUCT GRAPHIC, PTO shield caution instruction

1шт.

77721C91

STRIPPER PACKAGE

PACKAGE, seal and gasket

1шт.

Consists of ref nos 7, 12, 14, 15, 16, 17, 25, 27, 31, 32, 35, 36, 38, 45, 46, 60, 72, 73 and service parts not applicable to this tractor (1) 393071R2, (1) 124545, (1) 384564R1, (1) 364885R1, (1) 369384R1, (1) 381467R1, (1) 381481R1

1шт.
