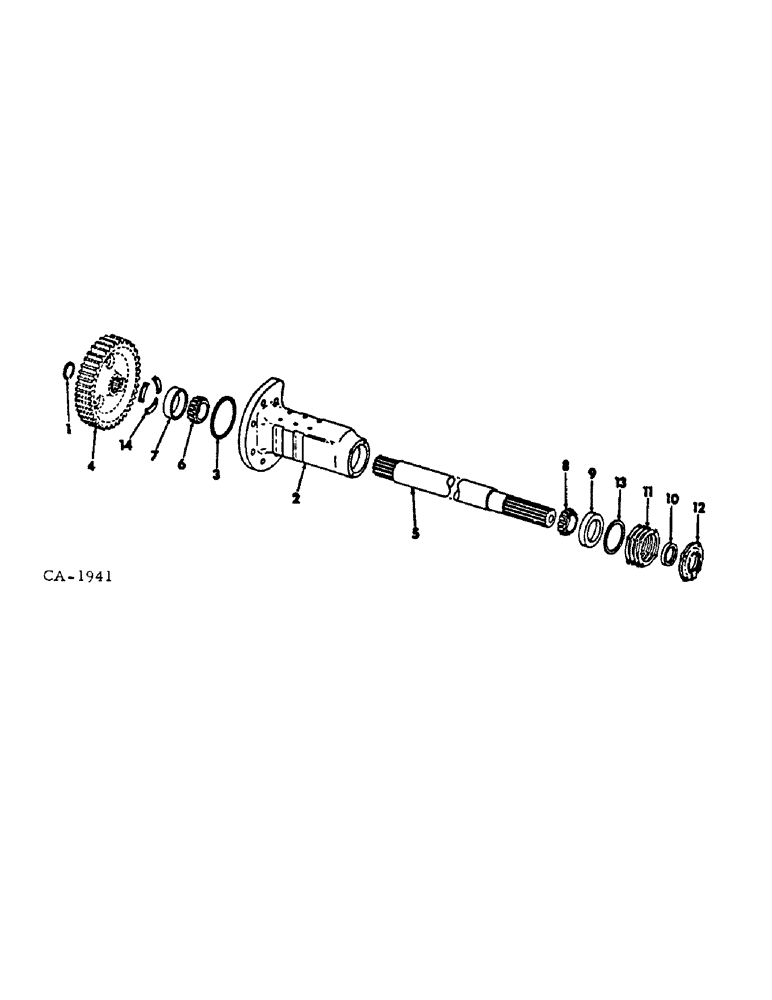

Запчасти Case IH 666 (07-33) - DRIVE TRAIN, REAR AXLE, ALL TRACTORS EXCEPT HI-CLEAR (04) - Drive Train

1

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining

4шт.

2

530951R1

CARRIER, rear axle LH

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

7шт.

2

530952R1

CARRIER, rear axle RH

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

7шт.

3

388108R1

O-RING,6.234" ID x 0.139" Width

RING, rear axle carrier sealing

2шт.

4

BULL GEAR, Refer to differential listing this group

1шт.

5

388110R2

SHAFT

AXLE, rear

2шт.

5

389249R2

AXLE, rear 108 in.

2шт.

6

ST794A

BEARING ASSY,71.44mm ID x 36.25mm W

rear axle inner cone

2шт.

7

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING, rear axle inner cup

2шт.

8

ST761A

ROLLER BEARING,71.45mm ID x 28.57mm W

BEARING ASSY, rear axle outer cone

2шт.

9

ST856

CUP

BEARING, rear axle outer cup

2шт.

10

377788R91

OIL SEAL

SEAL, rear axle oil

2шт.

11

530953R1

SHIM

carrier cap .005

1шт.

11

530954R1

SHIM

carrier cap .007

1шт.

11

530955R1

SHIM

carrier cap .012

1шт.

11

530956R1

SHIM

carrier cap .029

1шт.

12

530968R1

RETAINER

rear axle outer brg

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

13

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8 x 1/8

2шт.

14

394646R1

RETAINER

rear axle inner brg

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.
