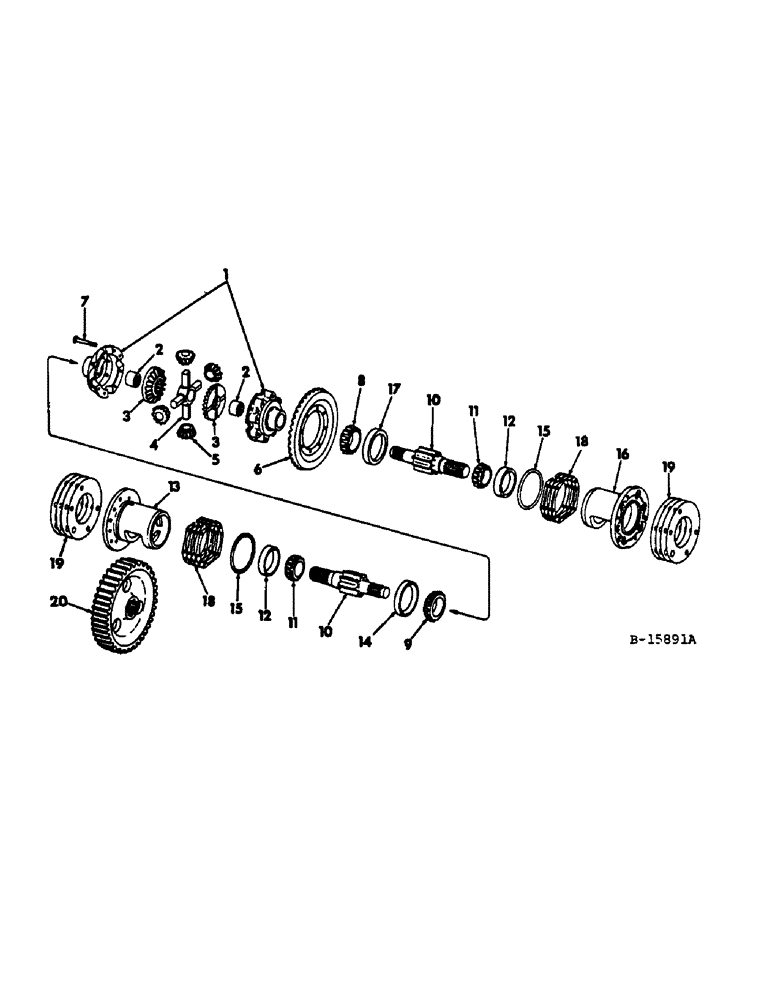

Запчасти Case IH 666 (07-32) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
65983C1
CASE
ASSY, differential
1шт.
2
NOT USED THIS APPLICATION
1шт.
3
388092R1
GEAR
diff bevel 28T
2шт.
4
388093R1
U-JOINT SPIDER
SPIDER, diff
1шт.
5
360961R1
GEAR
PINION, diff bevel 15T
4шт.
6
98860C1
GEAR
bevel drive 49T, 666 and 686 gear drive tractors (Replaces 400265R1)
1шт.
6
98862C1
GEAR
bevel drive 49T, 666, 70 and 86 hydrostatic drive tractors (Replaces 396710R1)
1шт.
7
588770R2
BOLT (SPREADER),7/16" - 20 x 3.50"
BOLT, diff case
8шт.
381915R1
NUT,7/16"-20, G8
7/16-20 thick hex
8шт.
8
529452R91
ROLLER BEARING
ASSY, diff cone
1шт.
9
65720C91
BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"
ASSY, diff gear side cone
1шт.
10
388285R1
SHAFT
bull pinion & brake
2шт.
10
395808R1
SHAFT, bull pinion and brake, hi-clear tractors with seed plate drive
2шт.
11
ST2116
TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W
BEARING ASSY, bull pin shaft cone
2шт.
12
13363D
TAPERED BEARING
BEARING, bull pinion shaft cup
2шт.
13
65722C1
CAGE, bull pinion shaft brg LH, 666 and 686 gear drive tractors
1шт.
13
65725C1
CAGE, bull pinion shaft brg LH, 666, 70 and 86 hydrostatic drive tractors
1шт.
14
65721C1
BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"
diff gear side cup
1шт.
15
3046994R1
O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro
RING, 5-5/8 x 5-7/8 x 1/8 sealing, bull pinion shaft brg case
2шт.
16
65724C1
CAGE, bull pinion shaft brg RH, 666 and 686 gear drive tractors
1шт.
16
65723C1
CAGE, bull pinion shaft brg RH, 666, 70 and 86 hydrostatic drive tractors
1шт.
17
529453R1
BEARING, CUP
BEARING, diff cup
1шт.
560170R1
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8
SCREW, 7/16-14 x 1-1/4 hex-hd cap
12шт.
18
392775R1
SHIM
bull pinion shaft brg cage .0229
1шт.
18
392774R1
SHIM
bull pinion shaft brg cage .0149
1шт.
18
392773R1
SHIM
bull pinion shaft brg cage .007
1шт.
18
392772R1
SHIM
bull pinion shaft brg cage .005
1шт.
19
388100R1
SHIM
bull pin shaft brg ret .005
1шт.
19
388101R1
SHIM
bull pin shaft brg ret .007
1шт.
19
388102R1
SHIM
bull pin shaft brg ret .012
1шт.
19
388103R1
SHIM
bull pin sgaft brg ret .029
1шт.
20
388104R2
GEAR, bull 66T
2шт.
Выбрано товаров: 32
