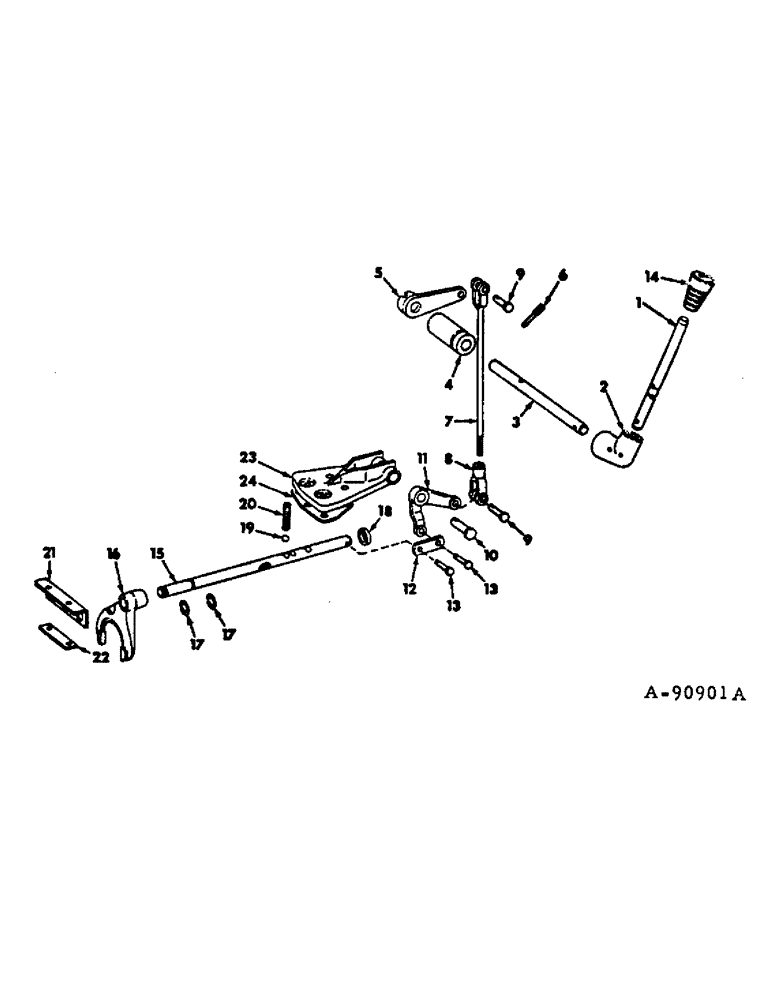

Запчасти Case IH 666 (07-29) - DRIVE TRAIN, HI-LO SHIFT CONTROLS AND LINKAGE, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
537477R2
ROD, hi-lo shift
1шт.
2
399031R1
PIVOT
HUB, hi-lo handle
1шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
2шт.
3
398767R1
ROD
hi-lo range handle pivot
1шт.
4
398768R2
BEARING, handle pivot shaft
1шт.
5
388189R91
LEVER
ASSY, rod operating RH
1шт.
617939R1
PIN,5/16" x 1 1/2", Coiled
1шт.
6
388183R1
SCREW,1/4" - 20 x 2"
shift handle housing ret
1шт.
617939R1
PIN,5/16" x 1 1/2", Coiled
1шт.
7
398769R1
ROD
ASSY, hi-lo range trans
1шт.
8
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8-24 x 2-1/2 adj rod end
1шт.
114494
NUT,Jam, 3/8"-24, G5
1шт.
9
103496
CLEVIS PIN,3/8" x 1.060"
PIN, 3/8 x 1-3/32 rod end
2шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
10
496032R1
PIN, 5/8 x 3-5/8 std-hd
1шт.
11
398624R1
LEVER
trans shift
1шт.
12
388201R11
DRAG LINK
LINK, trans shift lever actuating
2шт.
13
Q3529
AXLE PIN
PIN, 5/16 x 1-5/8 std-hd
2шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
14
537110R1
GRIP
KNOB, shaft handle
1шт.
15
396813R1
RAIL, high-low shifter
1шт.
16
388172R1
FORK
high-low shifter
1шт.
NLS
NO LONGER SERVICED
1шт.
93-41039
LOCK WASHER,Ext Tooth, 3/8"
WASHER, 3/8 ext-tooth lock
1шт.
17
388173R1
RING
shifter rail stop snap
2шт.
18
549712R1
OIL SEAL
shifter rail oil, Replaces 111710R91
1шт.
19
17016R1
BALL,1/2" Dia
1шт.
20
41058DA
SPRING
shifter rail poppet
1шт.
21
388177R1
ANGLE
shifter fork rear support
1шт.
22
388178R1
SHIM
PLATE, shifter fork rear support lock
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
2шт.
23
406113R1
BRACKET, trans pivot shaft support
1шт.
179874
BOLT,Hex, 7/16" - 14 x 4", Gr 5
2шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
2шт.
24
406114R1
GASKET
trans pivot shaft support bracket
1шт.
Выбрано товаров: 37
