Запчасти Case IH 666 (07-23[A]) - DRIVE TRAIN, PUMP CYLINDER BLOCK KIT, 666 AND 70 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

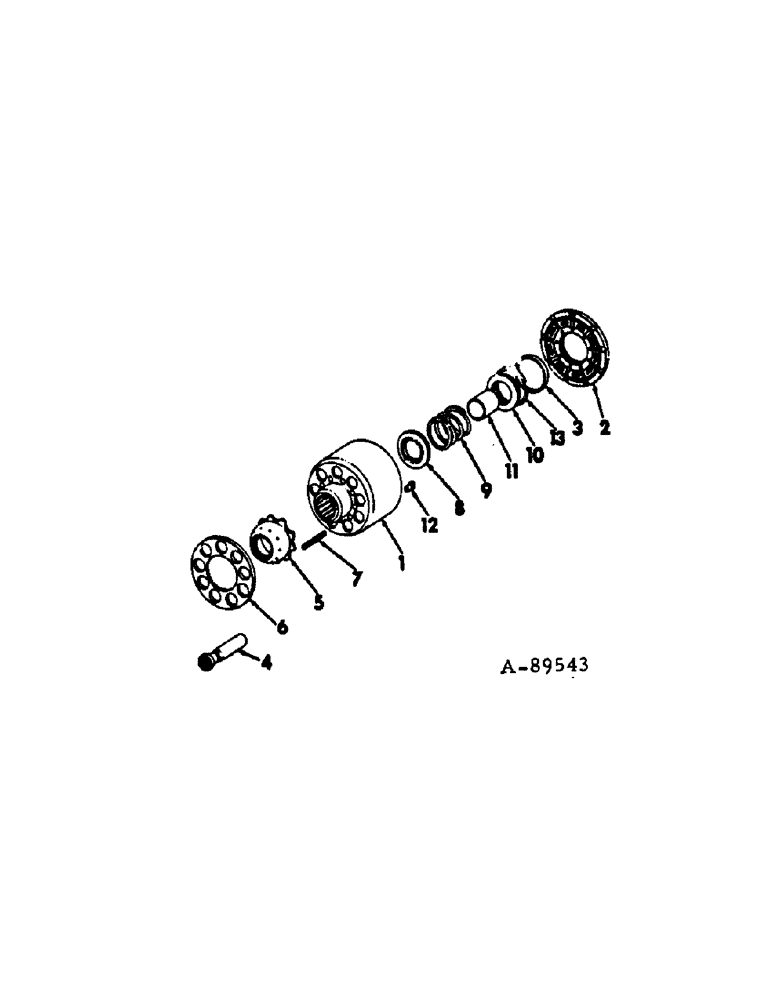

Схема запчастей Case IH 666 - (07-23[A]) - DRIVE TRAIN, PUMP CYLINDER BLOCK KIT, 666 AND 70 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train
13
3
7
1
6
2
4
12
5
11
9
8
10

Артикул

Название

Примечание

Количество

1

BLOCK ASSY CYLINDER, on orders for block assy 394190R91 or 67788C1 furnish package 133789C92

1шт.

2

399406R1

PLATE

bearing

1шт.

3

394197R1

RING

PILOT, bearing plate

1шт.

4

142484C1

PISTON ASSY.

PISTON ASSY, Replaces 539252R1

9шт.

5

394188R1

GUIDE

slipper retainer

1шт.

6

394189R1

RETAINER

slipper

1шт.

7

394191R1

SPRING

slipper retainer, Used only w/block 394190R1

9шт.

7

67789C1

SPRING

slipper retainer, Used only w/block 67788C1 or package 133789C92

6шт.

8

394192R1

SEAT

spring

1шт.

9

532290R2

SPRING

cylinder block, Used w/block 67788C1

1шт.

9

532303R2

SPRING

cylinder block, Used w/kit 133789C92

1шт.

10

394195R1

RETAINER

spring

1шт.

11

394193R1

BUSHING

GUIDE, spring

1шт.

12

527636R1

PIN

piston cylinder

1шт.

13

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, internal retaining

1шт.

65018C91

KIT

PACKAGE, hyd pump piston & plate kit service, Consists of

1шт.

142484C1

PISTON ASSY.

PISTON

9шт.

399406R1

PLATE

1шт.

530769R1

PLATE

1шт.

133789C92

KIT

cylinder block, Consists of

1шт.

399406R1

PLATE

bearing

1шт.

142484C1

PISTON ASSY.

PISTON ASSY, Replaces 539252R1

9шт.

394188R1

GUIDE

retainer

1шт.

394189R1

RETAINER

slipper

1шт.

67789C1

SPRING

retainer

6шт.

394192R1

SEAT

spring

1шт.

394193R1

BUSHING

GUIDE, spring

1шт.

532303R2

SPRING

cylinder block

1шт.

394195R1

RETAINER

spring

1шт.

527636R1

PIN

piston cylinder

1шт.

394197R1

RING

PILOT, bearing plate

1шт.

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, internal retaining

1шт.

CYLINDER BLOCK (NSS)

1шт.

Выбрано товаров: 33
