Запчасти Case IH 666 (07-21[A]) - DRIVE TRAIN, CHARGE PUMP, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

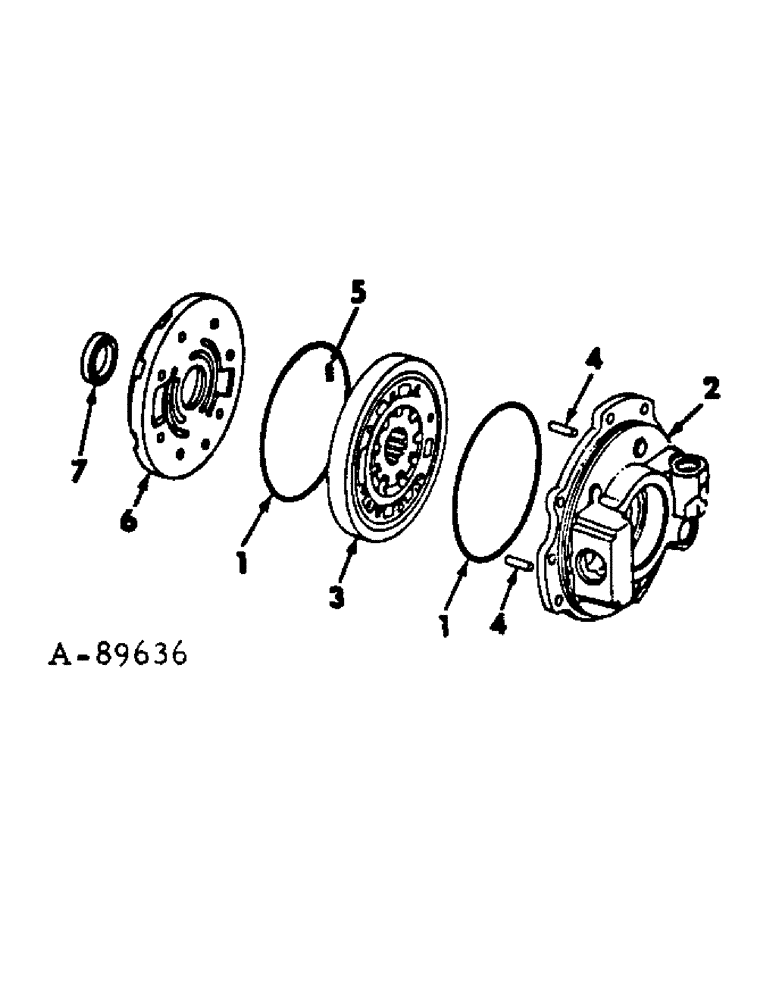

Схема запчастей Case IH 666 - (07-21[A]) - DRIVE TRAIN, CHARGE PUMP, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train
3
5
7
4
1
6
4
1
2

Артикул

Название

Примечание

Количество

396094R91

PUMP

Transmission Charge

1шт.

66453C91R

REMAN-HYD PUMP

666 (1/72-12/72), HYDRO 70, HYDRO 86, Both (1/74-12/77), Reman for New P/N 396094R91

1шт.

66453C91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

66453C91

PUMP

Transmission Charge

1шт.

66453C91R

REMAN-HYD PUMP

666 (1/72-12/72), HYDRO 70, HYDRO 86, Both (1/74-12/77)

1шт.

66453C91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

405172R1

RING

rectangular seal

2шт.

2

NSS

NOT SOLD SEPARAT

PLATE, carrier, Not serviced separately order pump assy 396094R91 or 66453C91

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING ASSY, cam, Not serviced separately, order pump assy 396094R91 or 66453C91

1шт.

4

NSS

NOT SOLD SEPARAT

PIN, Not serviced separately, order pump assy 396094R91 or 66453C91

1шт.

5

397433R1

SPRING

slipper

8шт.

6

NSS

NOT SOLD SEPARAT

PLATE, port, Not serviced separately, order pump assy 396094R91 or 66453C91

1шт.

397439R1

WASHER

6шт.

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

SCREW, hex washer hd

6шт.

7

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

oil

1шт.

537785R1

KIT

slipper pin, Consists of eight standard pins & eight undersize pins

1шт.

Выбрано товаров: 16
