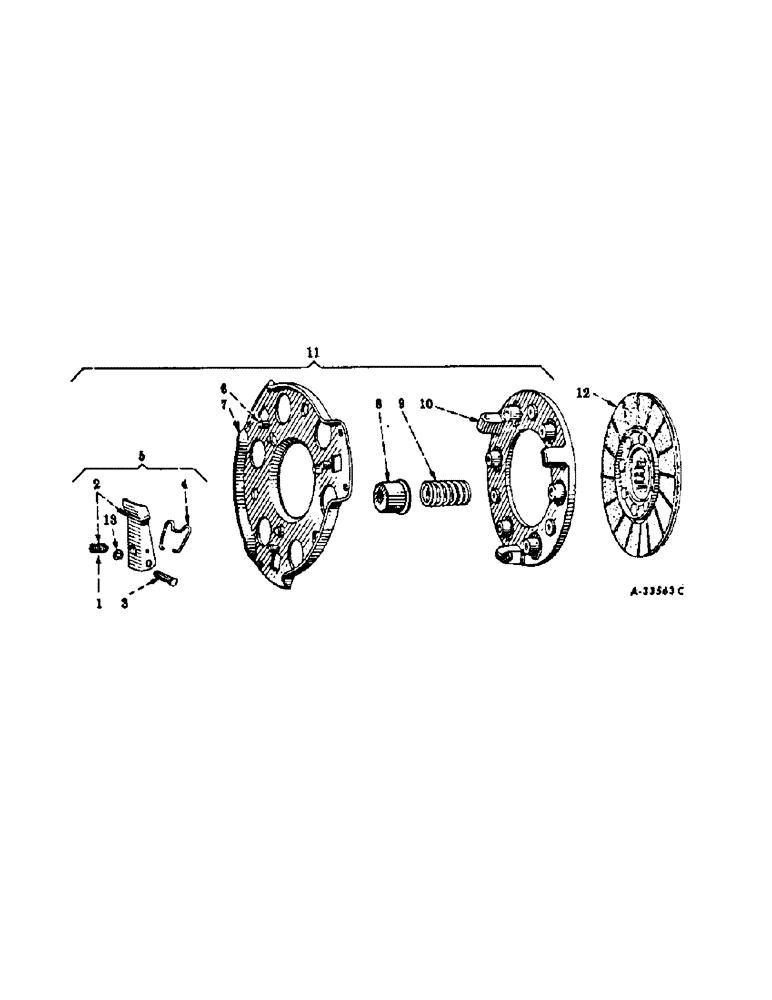

Запчасти Case IH 666 (07-09) - DRIVE TRAIN, CLUTCH, 7 INCH, 666 AND 686 GEAR DRIVE TRACTORS (04) - Drive Train

1

359935R1

ADJUSTMENT SCREW

SCREW, lever adjusting

3шт.

25395R1

NUT

NUT, 5/16-24 hex. jam type 8

3шт.

2

359936R21

LEVER

LEVER W/NUT & SCREW, release

3шт.

3

369106R1

PIN

PIN, release lever

3шт.

4

359937R3

SPRING

SPRING, lever

3шт.

5

359948R94

KIT

PACKAGE, lever assy

1шт.

6

359933R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

359932R91

SPARE PART PLATE ASSY, back

1шт.

8

359934R1

SPARE PART CUP, pressure plate spring

6шт.

9

359939R3

SPRING

SPRING, pressure plate

6шт.

10

362197R1

PLATE ASSY.

PLATE, pressure

1шт.

11

360215R94

COVER

PLATE ASSY, clutch pressure

1шт.

11

360215R94R

REMAN-CLUTCH PLATE

Remanufactured Clucth Plate, 7 in

1шт.

11

360215R94C

CORE-CLUTCH PLATE

Return Part Number

1шт.

179811

SHAFT

SCREW, 5/16-18 x 7/16 hex-hd cap

3шт.

615031R1

WASHER

WASHER< 3/8 x 7/8 x .083

3шт.

12

375701R91

DISC

DISC W/BONDED FACINGS, clutch driven

1шт.

116056

RIVET,FH, 1/4" x 1/2"

RIVET, 1/4 x 9/16 f-hd

8шт.

13

369107R1

SNAP RING,#21, Ext

Ring, Snap, , release lever pin #21, Ext

3шт.
