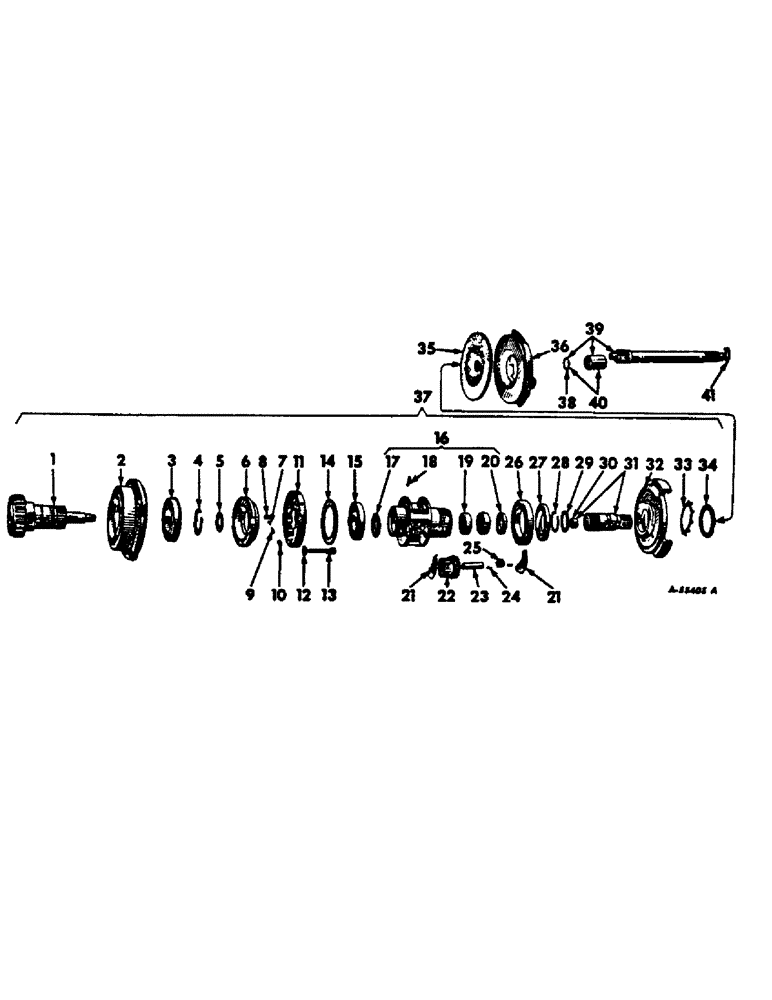

Запчасти Case IH 666 (07-07) - DRIVE TRAIN, TORQUE AMPLIFIER, 666 AND 686 GEAR DRIVE TRACTORS (04) - Drive Train

1

389156R1

SHAFT

SHAFT, transmission drive and secondary sun gear, 22 and 28T

1шт.

2

360643R1

BEARING ASSY,3.9366" ID x 3"

CAGE, transmission drive shaft bearing screw, 3/8-16 x 1-1/2 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

65948C91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.9268"

BEARING, transmission drive shaft rear roller

1шт.

4

358059R1

SNAP RING

RING, transmission drive shaft rear brg snap

1шт.

5

359891R1

THRUST WASHER,29.21mm ID x 45.97mm OD x 2.39mm Thk

WASHER, driving primary and driven secondary sun gear thrust

1шт.

6

360651R2

SPACER

WASHER, overrunning clutch roller rear thrust

1шт.

7

361287R1

PIN,4.37mm OD x 25.4mm L

PIN, torque amplifier overrunning clutch

8шт.

8

365403R1

ROLL

ROLLER, torque amplifier overrunning clutch

8шт.

9

361286R1

SPRING

SPRING, torque amplifier overrunning clutch

8шт.

10

361285R1

PLUG

PLUG, torque amplifier overrunning clutch

8шт.

11

365402R11

RAMP

RAMP ASSY, bearing carrier and overrunning clutch, Composed of

1шт.

361287R1

PIN,4.37mm OD x 25.4mm L

PIN

8шт.

361285R1

PLUG

PLUG

8шт.

.

RAMP (NSS)

1шт.

365403R1

ROLL

ROLLER

8шт.

361286R1

SPRING

SPRING

8шт.

12

360232R1

RING

RING, retaining

4шт.

13

360652R1

SPARE PART SCREW, bearing carrier, Optional with 365615R1

4шт.

13

365615R1

SCREW

SCREW, bearing carrier, Optional with 360652R1

4шт.

14

363666R1

THRUST WASHER

WASHER, overrunning clutch roller thrust

1шт.

15

ST589

BALL BEARING,73.12mm ID x 106.36mm OD x 13.16mm W

BEARING, planet carrier rear ball

1шт.

16

361281R13

CARRIER

CARRIER ASSEMBLY, planet

1шт.

17

359882R1

WASHER

SPACER, planet carrier

1шт.

18

17046R1

LOCK PIN,1/8" x 1 1/8", Slotted

Pin, , ESNA, planet gear shaft lock 1/8" x 1 1/8", Slotted

3шт.

19

359950R91

NEEDLE BEARING

BEARING, planet carrier roller

2шт.

20

359952R92

OIL SEAL

SEAL, planet carrier oil

1шт.

21

359890R2

SUPPORT

PLATE, planet gear thrust

6шт.

22

362005R92

WHEEL

SET, planet gear, 23 and 29 T, Consists of three gears

1шт.

23

361282R2

SHAFT

SHAFT, planet gear

3шт.

24

364634R91

PIN

PACKAGE, planet gear brg needle roller service, Consists of 138 rollers

1шт.

25

359888R1

SPACER

SPACER, planet gear bearing

3шт.

26

ST562

BALL BEARING,75mm ID x 115mm OD x 20mm W

BEARING, planet carrier ball, Optional w/361943R91

1шт.

26

361943R91

BEARING

BEARING, planet carrier ball, Optional w/ST562

1шт.

27

361248R92

OIL SEAL

SEAL, planet carrier front bearing oil

1шт.

28

359894R1

RING, SNAP

RING SNAP RING, primary sun gear washer snap

1шт.

29

359893R1

THRUST WASHER,43.66mm ID x 57.15mm OD x 2.39mm Thk

WASHER, primary sun gear thrust

1шт.

30

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

BEARING, primary sun gear roller

1шт.

31

361283R32

SHAFT

GEAR W/BEARING, primary sun, 23T

1шт.

32

359895R3

RETAINER

CARRIER, torque amplifier clutch, Not included in torque amplifier service package

1шт.

33

359896R2

LOCK NUT

LOCK, torque amplifier clutch carrier nut

1шт.

34

359897R1

NUT

NUT, torque amplifier clutch carrier

1шт.

35

375701R91

DISC

DISK ASSY, clutch friction

1шт.

36

360215R94

COVER

PLATE ASSY, clutch pressure, Refer to 7 inch clutch in this group

1шт.

36

360215R94R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, 7 in

1шт.

36

360215R94C

CORE-CLUTCH PLATE

Return Part Number

1шт.

359899R1

BOLT,1/4" - 20 x 9/16", Gr 2

SCREW, clutch brake plate

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

37

394814R91

KIT

PACKAGE, torque amplifier service, Consists of reference nos 1-26, 28-31 and 33, 34, attaching parts included

1шт.

38

364411R1

SPRING

RING, clutch shaft sleeve snap

1шт.

39

360676R51

SHAFT

SHAFT ASSY, clutch

1шт.

40

364432R91

SLEEVE CYLINDER

SLEEVE ASSY, clutch shaft

1шт.

41

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

O-RING, 9/16 x 3/4 x 3/23, clutch shaft

1шт.

395915R92

KIT

GASKET SET, torque amplifier overhaul, Consists of

1шт.

359129R2

GASKET

GASKET

1шт.

360642R2

GASKET

GASKET

1шт.

360667R3

GASKET

GASKET

1шт.

360871R1

GASKET

GASKET

1шт.

361187R1

GASKET

GASKET

1шт.

364721R1

GASKET

GASKET

1шт.

370518R1

GASKET

GASKET

1шт.

370695R1

GASKET

GASKET

1шт.

370801R1

GASKET

GASKET

1шт.

396028R1

GASKET

GASKET

1шт.
