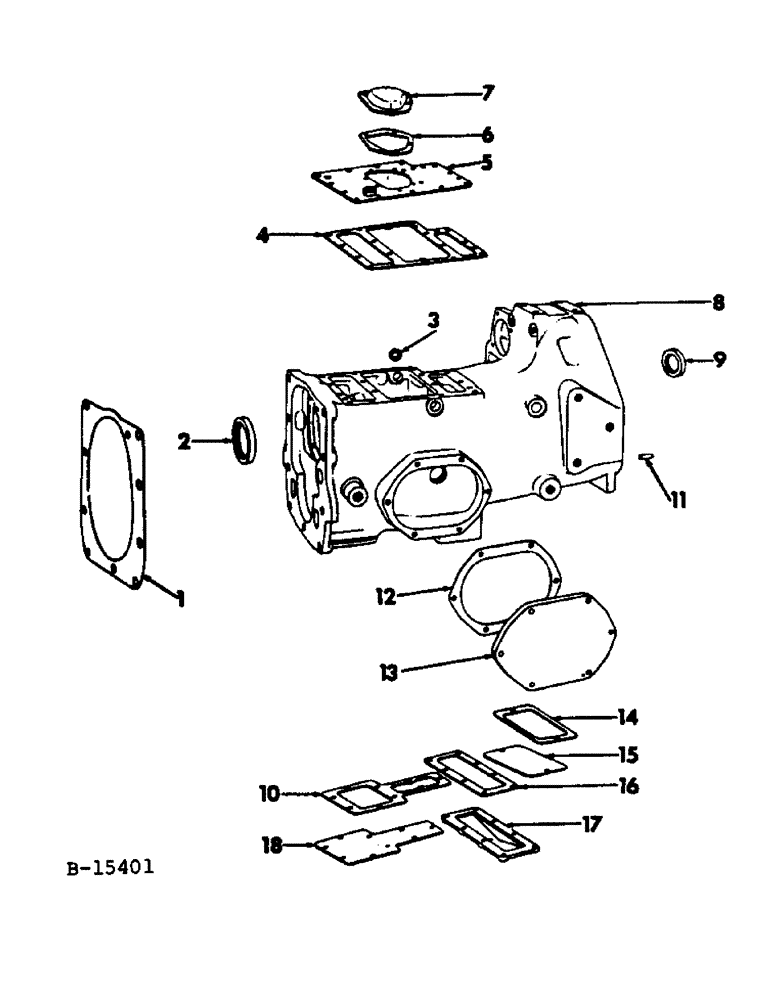

Запчасти Case IH 666 (07-01) - DRIVE TRAIN, CLUTCH HOUSING, 666 AND 686 GEAR DRIVE TRACTORS (04) - Drive Train

1

396028R1

GASKET

clutch housing

1шт.

2

361248R92

OIL SEAL

trans drive shaft oil

1шт.

3

359011R1

PLUG

t/a clutch release shaft opening

2шт.

4

360642R2

GASKET

clutch housing top cover

1шт.

5

65942C1

COVER ASSY, clutch hsg top

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

6

364721R1

GASKET

clutch housing top cover cap

1шт.

7

364720R1

CAP

clutch housing top cover

1шт.

181352

BOLT

SCREW, 3/8-24 x 3/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

530656R92

HOUSING

ASSY, clutch, Consists of

1шт.

104937

PLUG

CORK

4шт.

104940

PLUG

CORK

3шт.

NLS

NO LONGER SERVICED

CORK

13шт.

HOUSING (NSS)

1шт.

20955R1

DRAIN PLUG,Sq Hd, 2"-11 1/2 NPTF

PLUG

2шт.

359011R1

PLUG

2шт.

12576R1

SCREW, 1/2-13 x 6-3/4 hex-hd cap, gasoline engines

2шт.

191268

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2-13 x 6-1/2 hex-hd cap, diesel engines

2шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

SCREW, 5/8-11 x 1-3/8 hex-hd cap, gasoline engines

8шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap, diesel engines, Course Threads

4шт.

20955R1

DRAIN PLUG,Sq Hd, 2"-11 1/2 NPTF

PLUG, 2-11-1/2 auto sq-hd pipe, PTO drive shaft opening

1шт.

9

363514R93

OIL SEAL

PTO drive gear oil

1шт.

10

360667R3

GASKET

clutch housing rear bottom

1шт.

11

375362R1

PIN,12.69mm OD x 34.8mm L

rear engine support dowel, 1/2 x 1-3/8

2шт.

11

66798C1

PIN, rear engine support dowel, O/S

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

9шт.

12

370801R1

GASKET

oil, strainer opening cover

1шт.

13

377873R1

COVER, oil strainer opening

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

5шт.

14

360871R1

GASKET

clutch compartment bottom cover

1шт.

15

360872R1

COVER

clutch compartment bottom

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

359129R2

GASKET

driven gear cover

1шт.

17

372827R11

COVER

ASSY, IPTO driven gear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

8шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc-hd pipe

1шт.

18

360869R1

COVER, clutch housing bottom rear

1шт.

366464R91

SCREW, 3/8-16 x 3/4 indented hex. w/ext-tooth lockwasher

9шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
