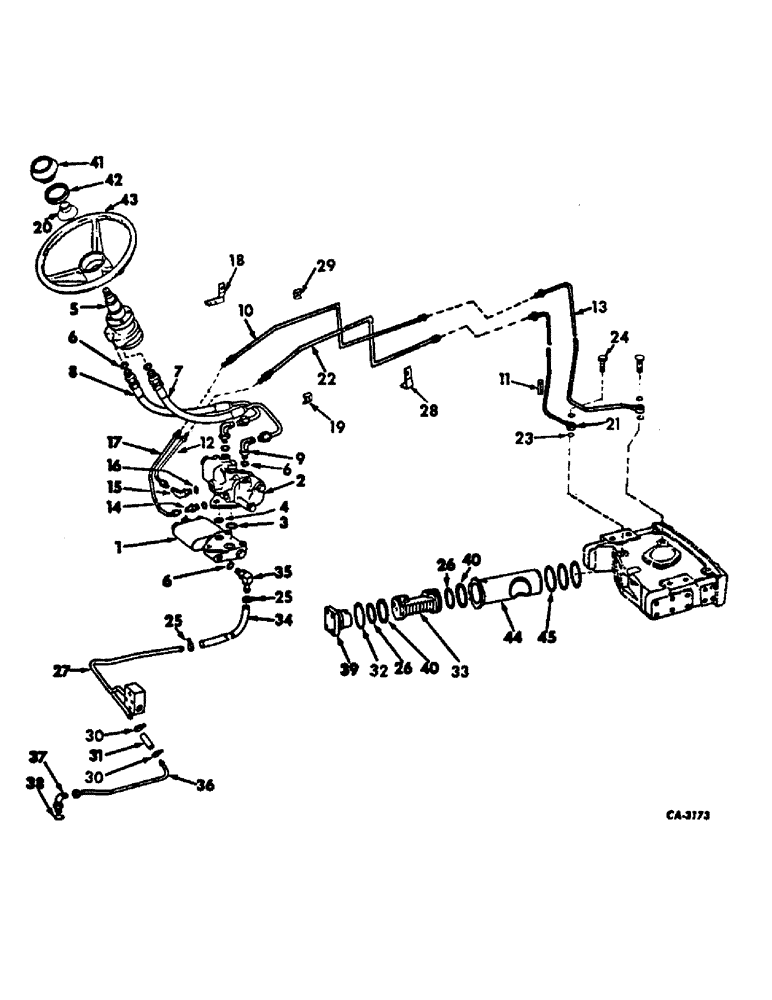

Запчасти Case IH 666 (10-08) - HYDRAULICS, POWER STEERING TUBES AND CONNECTIONS, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULICS

1

543959R91

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve

1шт.

2

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

4

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

5

388407R95

PUMP

hydrostatic power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

5шт.

7

388409R91

HYD TUBE

PIPE & HOSE ASSY, hand pump RH

1шт.

8

388408R91

HYDRAULIC HOSE

& HOSE ASSY, hand pump LH

1шт.

9

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube adj str thd 90 deg

2шт.

10

66139C1

TUBE

ASSY, valve to bolster frt port center

1шт.

11

STRIP, frt p/s tubes, Furnish 3 in. from length of foam marked, 73215C1

1шт.

12

390951R11

TUBE

PIPE ASSY, valve to bolster, rear port rear

1шт.

13

388414R11

TUBE

ASSY, valve to bolster frt port frt section

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, connector

2шт.

17

66141C1

TUBE

ASSY, valve to bolster, frt port rear

1шт.

18

388412R11

BRACKET ASSY, oil cooler & p/s tubes rear

1шт.

19

381448R1

CLAMP

hyd tube

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

20

382587R1

SEAL

power steering hand pump shaft

1шт.

21

388415R11

TUBE

ASSY, valve to bolster rear port frt section

1шт.

22

66142C1

TUBE,0.375" OD, 58.4, 9.8" Length

ASSY, valve to bolster rear port center

1шт.

23

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16 pressure tube union

4шт.

24

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

2шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga

2шт.

25

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hyd return hose

2шт.

26

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32, rack seal

2шт.

27

539551R1

MANIFOLD

ASSY, oil cooler return

1шт.

179846

LEVER

3шт.

28

398151R1

SUPPORT, oil cooler & p/s tubes center

1шт.

29

384891R11

CLAMP

ASSY, oil cooler & p/s tube center

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 3/4 hex-hd cap

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

30

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

p/s to reservoir #06, .44/.78 Type F Worm

2шт.

31

HOSE, power steering to reservoir, Use 5-1/2 in. I.D. hose from 50 ft. roll, 526601R1

1шт.

32

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 x 1/8, cyl sleeve adapter

1шт.

33

379364R1

PISTON

power steering

1шт.

34

HOSE, flow divider valve return, Furnish 47 in. from bulk hose, 73199C1

1шт.

35

396883R1

ELBOW, flow divider

1шт.

36

401842R1

TUBE

ASSY, Serial Range: p/s-reservoir

1шт.

37

400840R1

ELBOW ASSY, p/s return rear tube

1шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

39

378652R1

HOUSING

COVER, housing end

1шт.

327202R1

BOLT

SCREW, 7/16-14 x 1-7/8 hex-hd cap

4шт.

183544R1

WASHER

15/32 x 7/8 x 1/8 hardened

4шт.

40

378651R1

SEALING RING

RING, rack piston

2шт.

41

68837C1

CAP

steering wheel

1шт.

42

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

43

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

43

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

44

367805R2

SLEEVE CYLINDER

SLEEVE, steering cyl

1шт.

45

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3-7/8 x 4-1/4 x 3/16, steering cyl sleeve

3шт.
