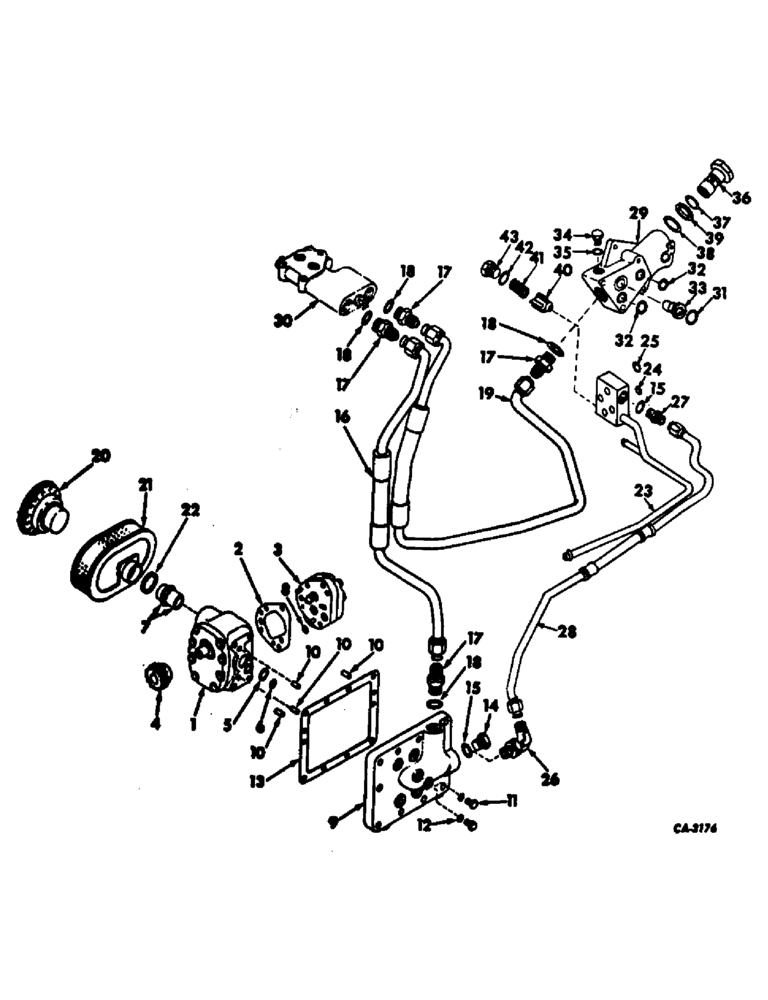

Запчасти Case IH 666 (10-01) - HYDRAULICS, HYDRAULIC POWER SUPPLY, 666 AND 686 GEAR DRIVE TRACTORS (07) - HYDRAULICS

1

PUMP ASSY, hydraulic gear, 17 GPM, Thompson, no longer available furnish pump, 70935C91

1шт.

1

70935C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, 17 GPM, Cessna, for components see list of parts under details of hydraulic pump, Replaces pump no. 373966R94

1шт.

1

1949292C1

REMAN-HYD PUMP

666 (1/72-12/72), 686 (1/69-12/71), Both INTERNATIONAL GEAR DRIVE TRACTOR, PUMP ASSY

1шт.

1

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

52999D

WASHER

GASKET, pump mounting screw

4шт.

*

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, 7/16-14 x 1-3/8 hex-hd cap

4шт.

2

371543R2

GASKET

hydraulic gear pump, tractors with draft control

1шт.

3

391351R94

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, 9 GPM, Cessna, for components see list of parts under details of hydraulic pump, tractors with draft control

1шт.

3

1949290C1

REMAN-HYD PUMP

666, 686 Both INTERNATIONAL GEAR DRIVE TRACTOR, PUMP ASSY (1/72-12/72)

1шт.

3

1949291C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

PUMP ASSY, hyd gear, 9 GPM, Thompson, no longer available furnish pump, 391351R94

1шт.

*

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

4

393471R1

GEAR

pump drive, 21 teeth

1шт.

*

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 Esna stop, pump drive shaft

1шт.

5

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

6

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pump pressure port small

1шт.

7

66123C1

TUBE,1.68" Length

ASSY, pump section

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

1шт.

9

66124C1

FLANGE ASSY, pump mtg

1шт.

*

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

10шт.

*

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

10

384116R1

PIN

pump mounting flange dowel

4шт.

11

9410358

PLUG

9/16-18 str thd-o-ring boss pump mtg flange

2шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, pump mtg flange plug

2шт.

13

370892R2

GASKET

pump mtg flange, light

1шт.

13

370893R2

GASKET

pump mtg flange, heavy

1шт.

14

9410360

PLUG

7/8-14 str thd-o-ring boss, tractors w/o draft control

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

16

388405R91

HYD TUBE

PIPE & HOSE ASSY, hyd power supply

1шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 deg hyd tube short swivel

4шт.

18

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

4шт.

19

396875R1

HOSE

PIPE & HOSE ASSY, open center valve transfer

1шт.

20

386121R92

VALVE

ASSY, filter

1шт.

21

388084R93

HYDRAULIC OIL FILTER

PACKAGE, oil filter element service, Consists of ref, no. 22 plus

1шт.

21

388084R93GV

HYDRAULIC OIL FILTER

Value, Hydraulic Oil Filter

1шт.

*

370801R1

GASKET

oil strainer opening cover

1шт.

*

ELEMENT (NSS)

1шт.

22

388082R1

O-RING,1.424" ID x 0.099" Width

RING, element seal

1шт.

23

539551R1

MANIFOLD

ASSY, oil cooler return

1шт.

*

179846

LEVER

3шт.

*

9410360

PLUG

7/8-14 str-thd o-ring boss

1шт.

*

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug seal

1шт.

24

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, hyd hsg flange small

1шт.

25

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-5/16 x 1/8, hyd hsg flange large

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj-str-thd 90 deg, tractors with draft control

1шт.

27

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 5/8 hyd 37 deg flared short swivel, tractors with draft control

1шт.

*

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

28

539547R1

HYD TUBE

TUBE ASSY, hyd hsg power supply, tractors with draft control

1шт.

29

379293R2

BLOCK, hyd transfer

1шт.

*

138245

SCREW

3/8-16 x 1-3/4 hex-soc-hd cap

1шт.

*

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

*

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

*

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

30

VALVE ASSY, power steering flow divider, for components see list of parts under detail of power steering flow divider valve listing this group

1шт.

31

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16, 3/32 hyd transfer block, large

1шт.

32

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32 hyd transfer block, small

2шт.

33

383440R91

LOCK VALVE

VALVE ASSY, check

1шт.

34

9410358

PLUG

9/16-18 str thd-o-ring boss hyd transfer block, small

1шт.

35

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd transfer block plug

1шт.

36

389033R93

VALVE

pilot operated relief, for component details refer to pilot operated relief valve listing this group

1шт.

37

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer

1шт.

38

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

39

378985R2

BACK-UP RING

relief valve backup

1шт.

40

354057R2

VALVE

steering make-up check

1шт.

41

382334R1

SPRING

check

1шт.

42

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

43

390825R1

PLUG

std thd o-ring boss

1шт.

*

393259R1

HOSE

INSULATOR, hydraulic line, round

1шт.

393258R1

INSULATOR, hydraulic line, square

1шт.
