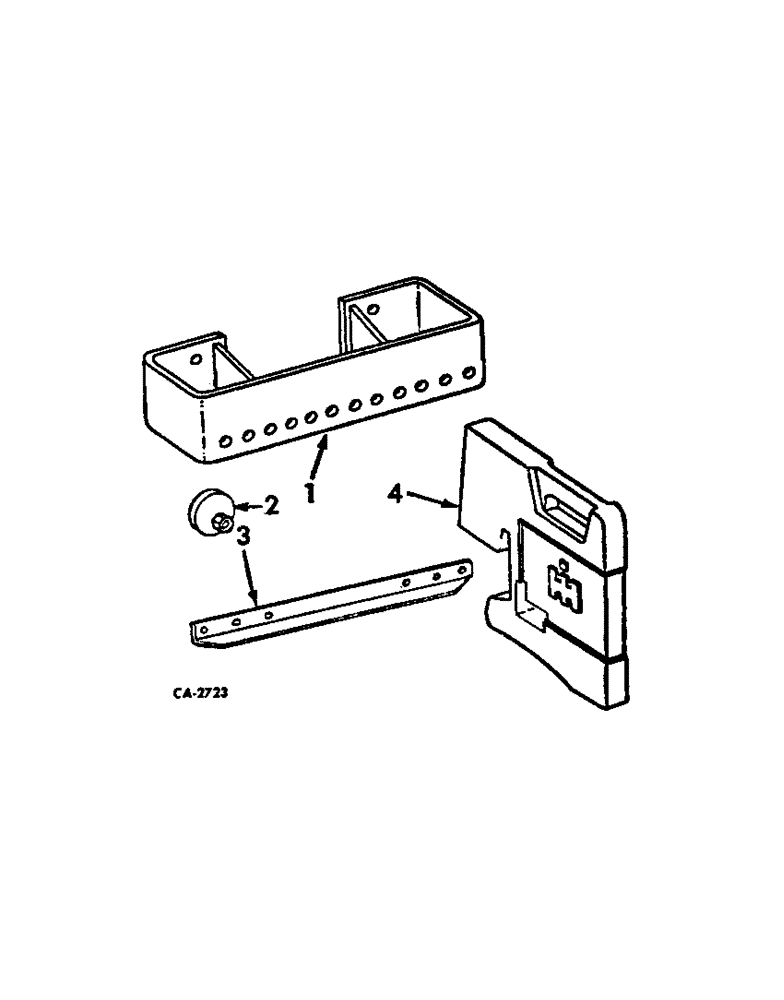

Запчасти Case IH 664 (09-02[1]) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME

NSS

NOT SOLD SEPARAT

FRONT END WEIGHT MOUNTING BRACKET ATTACHMENT, 383388R91, includes ref. nos 1 thru 3, also order weight and mounting parts desired

1шт.

1

383389R21

BRACKET

ASSY, front weight

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga

2шт.

103326R1

WASHER, 3/4 med lock

2шт.

2

536044R1

ROD

CAM ASSY, front weight retaining

2шт.

3

536042R1

BAR

front weight retaining

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

2шт.

21793

SET SCREW

WASHER, 21/32 x 1-1/4 x 7 ga

2шт.

4

383392R2

WEIGHT

front end, 67 lbs

1шт.

4

383393R2

WEIGHT

front end, 100 lbs

1шт.

123536

NUT, 1/2-13 sq C-Z

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.
