(10-23) - HYDRAULICS, PILOT RELIEF VALVE

Запчасти Case IH 664 (10-23) - HYDRAULICS, PILOT RELIEF VALVE (07) - HYDRAULICS

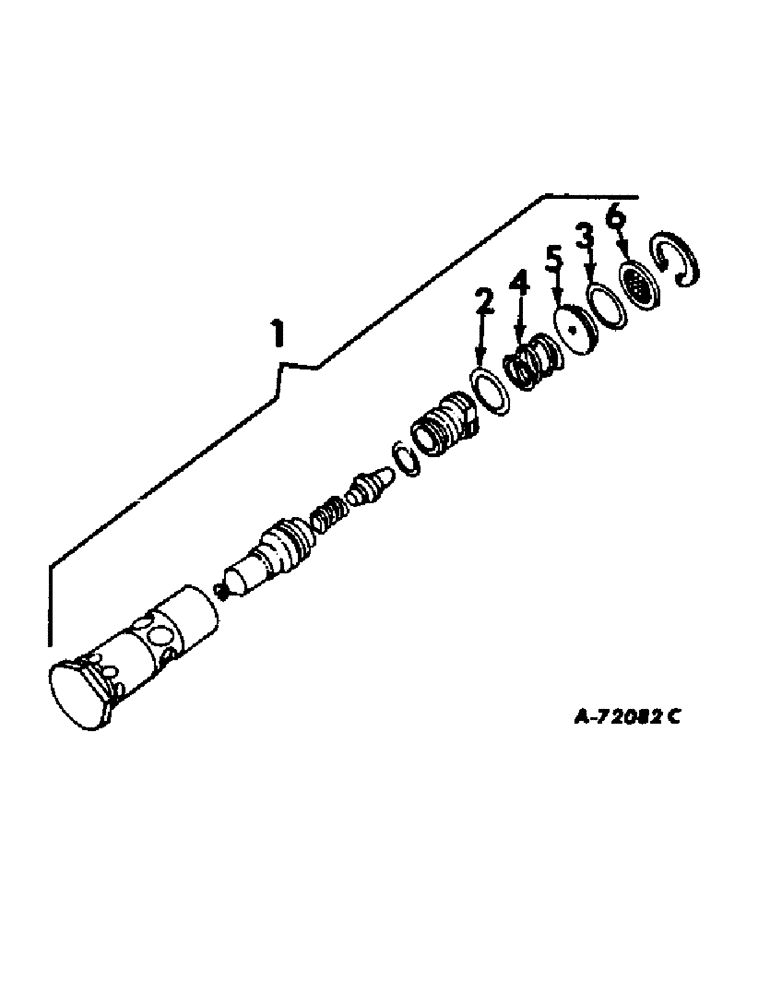

Схема запчастей Case IH 664 - (10-23) - HYDRAULICS, PILOT RELIEF VALVE (07) - HYDRAULICS
4
3
2
6
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

389033R93

VALVE

ASSY, pilot relief, 1600 PSI, hyd transfer block

1шт.

2

406185R1

O-RING

5/8 x 3/4 x 1/16, S treated, valve seat

1шт.

3

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, orifice plate

1шт.

4

386040R1

SPRING

poppet return

1шт.

5

386042R1

PLATE

orifice

1шт.

6

386073R91

SCREEN

ASSY, pilot relief valve

1шт.
