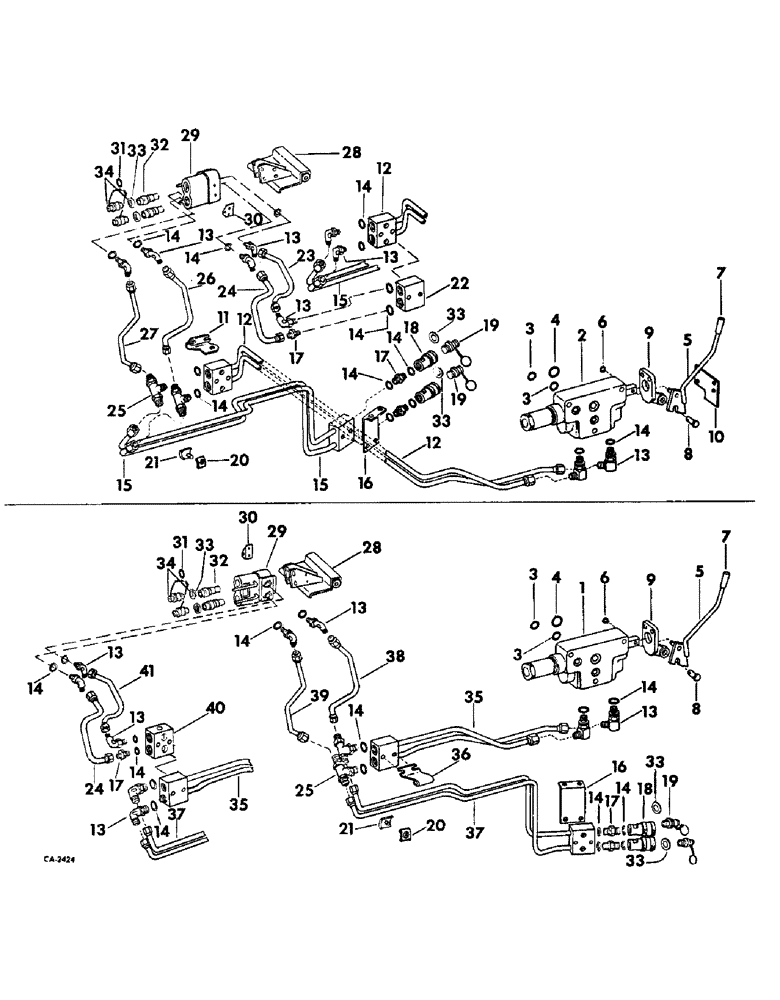

Запчасти Case IH 664 (10-19) - HYDRAULICS, AUXILIARY VALVE AND TUBES (07) - HYDRAULICS

NSS

NOT SOLD SEPARAT

Service parts for single auxiliary hyd valve with LH rear manifold, consists of all parts marked unit A

1шт.

NSS

NOT SOLD SEPARAT

Service parts for single auxiliary hyd valve with LH rear manifold and check valve, consists of all parts marked unit B

1шт.

536759R91

PARTS ACCESSORY, auxiliary hyd manifold w/RH front outlet, for tractors w/RH rear manifold, consists of all parts marked unit C

1шт.

536760R91

PARTS ACCESSORY, auxiliary hyd manifold w/LH outlet, for tractors w/LH rear manifold, consists of all parts marked unit D

1шт.

NSS

NOT SOLD SEPARAT

Service parts for double auxiliary hyd valve with LH and RH rear manifold, consists of all parts marked unit E

1шт.

NSS

NOT SOLD SEPARAT

Service parts for double auxiliary hyd valve with LH and RH rear manifold w/check valve on each outlet, consists of all parts marked unit F

1шт.

NSS

NOT SOLD SEPARAT

Service parts for double auxiliary hyd valve with LH front, LH rear and RH front and RH rear manifolds, consists of all parts marked unit G

1шт.

NSS

NOT SOLD SEPARAT

Service parts for double auxiliary hyd valve with LH front, LH rear and RH front and RH rear manifolds w/check valve on each rear outlet, consists of all all parts marked unit H

1шт.

536758R91

PARTS ACCESSORY, second auxiliary hyd valve and RH rear manifold and lever actuated coupler, for tractors equipped w/single auxiliary valve w/LH rear manifold or LH front and rear manifolds, consists of all parts marked unit J

1шт.

1

383267R94

VALVE

ASSY, hyd open center control, inner position, units E, F, G, H & J, for components see list of parts under details of hydraulic control valve

1шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap, 3 used unit J

1шт.

2

390826R94

VALVE

ASSY, hyd open center control, outer position, units A, B, E, F & G, for components see list of parts under details of hydraulic control valve

1шт.

23779R1

BOLT,3/8" x 4 1/4", Gr 8

SCREW, 3/8-16 x 4-1/4 hex-hd cap, 3 used units A & B

1шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap, 3 used units E, F, G & H

1шт.

3

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 2 used units A, B, & J, 4 used units E, F, G, & H

1шт.

4

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, 1 used units A, B & J, 2 used units E, F, G & H

1шт.

5

65600C1

LEVER

ASSY, hyd open center valve actuating, 1 used units A, B & J, 2 used units E, F, G & H

1шт.

366613R1

SPRING

WASHER, spring

1шт.

6

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , 1 used units A, B, & J; 2 used units E, F, G & H #50, .392" Dia, E-Type

1шт.

7

387885R1

KNOB

lever handle, 1 used units A, B & J, 2 used units E, F, G & H

1шт.

8

J547M

PIN

1/2 x 1-7/16 std hd, 1 used units A, B & J, 2 used units E, F, G & H

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

9

378029R1

BRACKET

valve rear, 1 used units A, B & J, 2 used units E, F, G & H

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

398559R1

BAR, auxiliary valve float lock, units A, B, E, F, G, H & J

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

11

389716R1

SUPPORT

BRACKET, LH rear manifold junction block, units A, B, E, F, G & H

1шт.

103026

NUT,3/8"-24, G5

2 used units A, E & G 3/8"-24, G5

1шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap, 2 used units A, E, & G

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051), 2 used units A, E, & G 3/8"

1шт.

12

397100R91

MANIFOLD ASSY, LH rear to first valve, units A, B, E, F, G & H

1шт.

9410360

PLUG

7/8-14 C-Z str thd junction block, 2 used units B & F

1шт.

9410356

PLUG

7/16-20 str thd junction block, 2 used units A, E, & G

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, 2 used units A, E, & G

1шт.

13

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, 5 for unit B, 6 for units A & J, 8 for unit G, 10 for unit F, 12 for unit E, 14 for unit H

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 6 for units A, B, C, D & J, 12 for units E & F, 20 for unit G, 24 for unit H

1шт.

15

398131R1

MANIFOLD ASSY, LH front, units D, G & H

1шт.

9410356

PLUG

7/16-20 C-Z str thd o-ring boss

2шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

16

398167R1

SUPPORT, front manifold bracket, 1 used units C & D, 2 for units G & H

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube short swivel, 1 used unit B, 2 used unit C, D, F, 4 used unit G, 6 used unit H

1шт.

18

395150R91

COUPLING, QUICK, FEM

COUPLER ASSY, female front outlet, 2 used units C & D, 4 used units G & H

1шт.

19

401757R11

PLUG

ASSY, coupler dust, 2 used units C & D, 4 used units G & H

1шт.

20

369758R1

CLAMP

front manifold, 2 used units C & D, 4 used units G & H

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap, 1 per clamp

1шт.

21

369758R11

CLAMP ASSY, front manifold, 2 used units C & D, 4 used units G & H

1шт.

22

544840R91

LOCK VALVE

VALVE ASSY, double acting check, units B, F & H, for components see list of parts under details of double acting check valve

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

2шт.

102635

NUT,3/8"-16, G5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

23

536595R1

TUBE

ASSY, LH upper breakaway check valve, units B, F & H

1шт.

24

536594R1

TUBE ASSY, lower breakaway check valve, 1 used unit B, 2 used units F & H

1шт.

25

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

7/8-14 37 deg hyd flared tube, 2 used units C & D, 4 used unit G

1шт.

26

536589R1

TUBE ASSY, LH lower breakaway, units A, E & G

1шт.

27

536592R1

TUBE ASSY, LH upper breakaway, units A, E & G

1шт.

28

536596R1

LARGE PLATE

PLATE ASSY, IPTO handle and hyd coupler support, units A, B, E, F, G, H & J

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

29

544786R91

SPARE PART

COUPLER ASSY, female, 1 used units A, B & J, 2 used units E, F, G & H, for components see list of parts under details of hydraulic female coupler

1шт.

30

537588R1

PLUG

BRACKET, dust plug mounting, 1 used units A, B, & J, 2 used units E, F, G & H

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

2шт.

31

25641R1

OIL SEAL

RING, retaining dust plug chain, 1 used units A, B & J, 2 used units E, F, G & H

1шт.

32

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male, 2 used units A, B & J, 4 used units E, F, G & H

1шт.

33

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

coupler dust plug, 2 used units A, B, C, D & J, 4 used units E & F, 8 used units G & H

1шт.

34

537589R91

PLUG

ASSY, coupler dust, 2 used units A & B, 4 used units E, F, G & G

1шт.

35

397103R91

MANIFOLD ASSY, RH rear to 2nd valve, units E, F, G, H & J

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, 2 used units E, G & J

1шт.

9410356

PLUG

7/16-20 str thd o-ring boss, 2 used units E, G & J

1шт.

9410360

PLUG

7/8-14 C-Z str thd o-ring boss, 2 used unit F

1шт.

36

389717R1

SUPPORT

BRACKET, RH rear manifold junction block, units E, F, G, H & J

1шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

37

398132R1

MANIFOLD ASSY, RH front, units C, G & H

1шт.

9410356

PLUG

7/16-20 C-Z str thd o-ring boss

2шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

38

536591R1

TUBE

ASSY, RH upper breakaway, units E, G & J

1шт.

39

536590R1

TUBE

ASSY, RH lower breakaway, units E, G & J

1шт.

40

374083R92

VALVE

ASSY, double acting check, units F & H, for components see list of parts under details of double acting check valve

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

2шт.

102635

NUT,3/8"-16, G5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

41

536593R1

TUBE ASSY, RH upper breakaway check valve, units F & H

1шт.

393259R1

HOSE

INSULATOR HYDRAULIC LINE, 5/8 ID x 3/4 in. long, use as required, units E, F, G & H

1шт.
