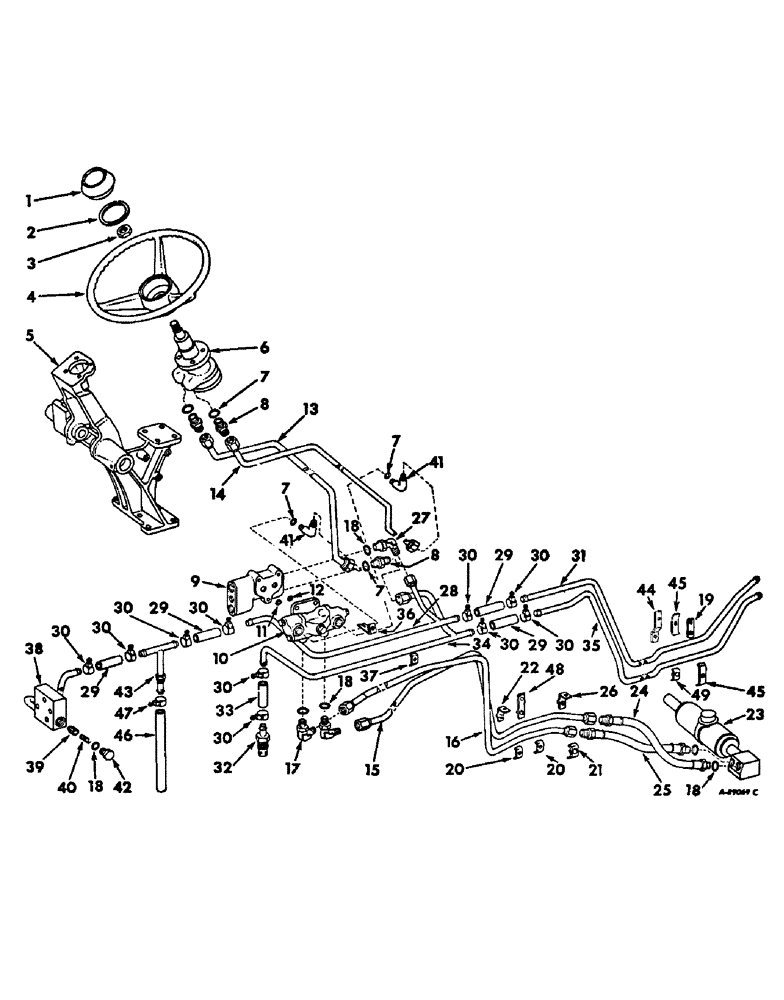

Запчасти Case IH 664 (10-09) - HYDRAULICS, POWER STEERING (07) - HYDRAULICS

1

378395R1

CAP

steering wheel monogrammed

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

3

373091R1

BUSHING

NUT, steering wheel

1шт.

4

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

NSS

NOT SOLD SEPARAT

SUPPORT, steering, refer to steering support listing, group 13

1шт.

6

378578R95

HYDRAULIC STEERING

PUMP, hydrostatic P/S hand, for components see list of parts under details of power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

5шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel

3шт.

9

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

362796R1

O-RING,0.924" ID x 0.103" Width

pilot valve large

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 15/16 x 1-1/8 x 3/32

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

pilot valve small

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 13/16 x 1 x 3/32

1шт.

13

399668R1

TUBE ASSY, hand pump LH

1шт.

14

399670R1

TUBE ASSY, hand pump RH

1шт.

15

528355R1

TUBE ASSY, No. 1 power steering cyl

1шт.

16

528356R1

TUBE ASSY, No. 2 power steering cyl

1шт.

17

94109746

ELBOW, 9/16-18 37 deg flared adj str thd 90 deg

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, connector

6шт.

19

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

20

382226R1

CLAMP, oil cooler tubes frt

2шт.

102635

NUT,3/8"-16, G5

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

21

369758R1

CLAMP

power steering tube

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SCREW, 5/16-18 x 5/8 hex-hd cap

1шт.

22

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

23

391982R91

CYLINDER

ASSY, hydrostatic power steering, for components see list of parts under details of power steering cylinder

1шт.

24

379652R92

HOSE ASSY.

HOSE ASSY, P/S cyl long

1шт.

25

382030R91

HOSE ASSY.

HOSE ASSY, P/S cylinder short

1шт.

26

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

27

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

P/S relief 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

NSS

NOT SOLD SEPARAT

ELBOW, 3/8 OD tube 37 deg

1шт.

28

396290R1

TUBE ASSY, cooler return rear

1шт.

29

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, pipe cooler return Replaces 390799R1)

4шт.

388606R1 CAN BE MADE BY CUTTING 13.5 INCHES FROM BULK 73199C1. 73199C1 IS .5 INCHES I.D. COOLER HOSE.

1шт.

30

261498R91

COLLAR CLAMP,nasp

CLAMP, No. 30 hose

10шт.

31

402744R1

TUBE, oil cooler return frt

1шт.

32

388448R93

VALVE

ASSY, oil cooler by-pass

1шт.

33

387154R1

HOSE, pipe cooler supply

1шт.

34

396294R1

TUBE ASSY, cooler supply rear

1шт.

35

402745R1

TUBE, oil cooler supply frt

1шт.

36

396298R1

BRACKET ASSY, oil cooler pipes

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16) 3/8"

1шт.

37

396300R1

CLAMP, oil cooler pipes

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

38

396301R1

MANIFOLD ASSY, lub supply

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

39

354057R2

VALVE

check

1шт.

40

382334R1

SPRING

check

1шт.

41

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 OD tube 90 deg

2шт.

42

390825R1

PLUG

std thd o-ring boss

1шт.

43

404252R1

TEE ASSY, cooler return and steering

1шт.

44

402740R1

BRACKET, oil cooler tubes

2шт.

45

382226R1

CLAMP, oil cooler tubes front

2шт.

109084

NUT,1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

46

389981R1

HOSE, oil cooler return internal

1шт.

47

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Internal hose #06, .44/.78 Type F Worm

1шт.

48

403898R1

PLATE ASSY, support power steering tube

1шт.

179814

SPACER

1шт.

49

384855R11

CLAMP

ASSY, oil cooler tubes

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 OD tube 37 deg flared tube 90 deg swivel C-Z

1шт.
